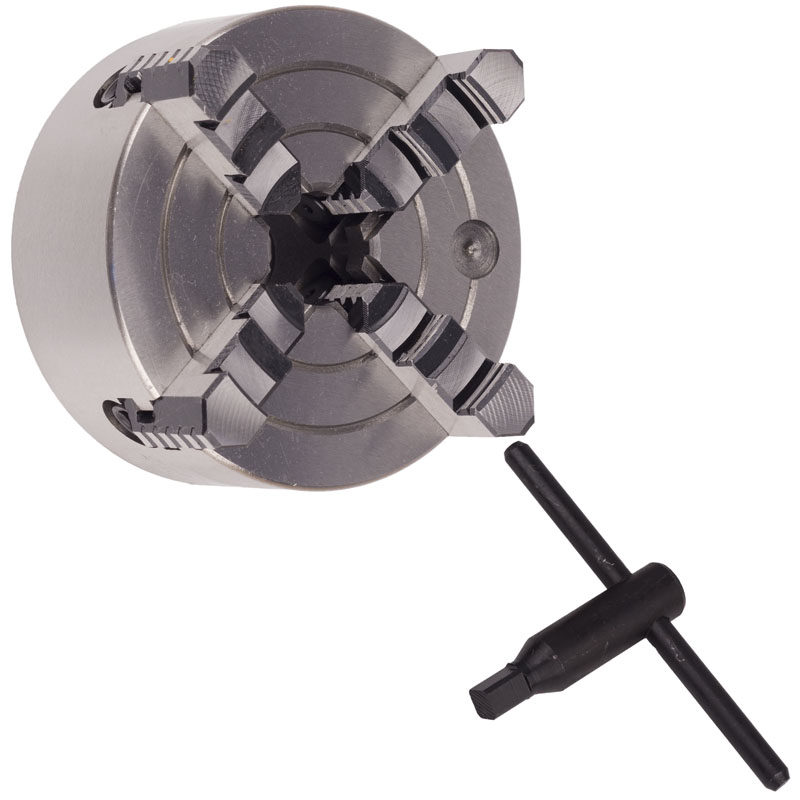

MAC AFRIC 200 MM 4-Jaw Independent Chuck
This chuck is commonly fitted to engineering lathe machines. It is also a high precision accessory. Each jaw on the chuck is separately adjustable.
Description
Technical Specifications
Chuck Diameter (D): 200 MM
Registration Recess Diameter (D1): 75 MM
Bolt Circle Diameter (D2): 95 MM
Center Hold (D3): 56 MM
Registration Recess Depth (h): 6 MM
Max Height (H): 110 MM
Body Thickness (H1): 75 MM
Number of Bolts: 4
Size of Bolts: M10
RPM: —
Handle Length: 160 MM
