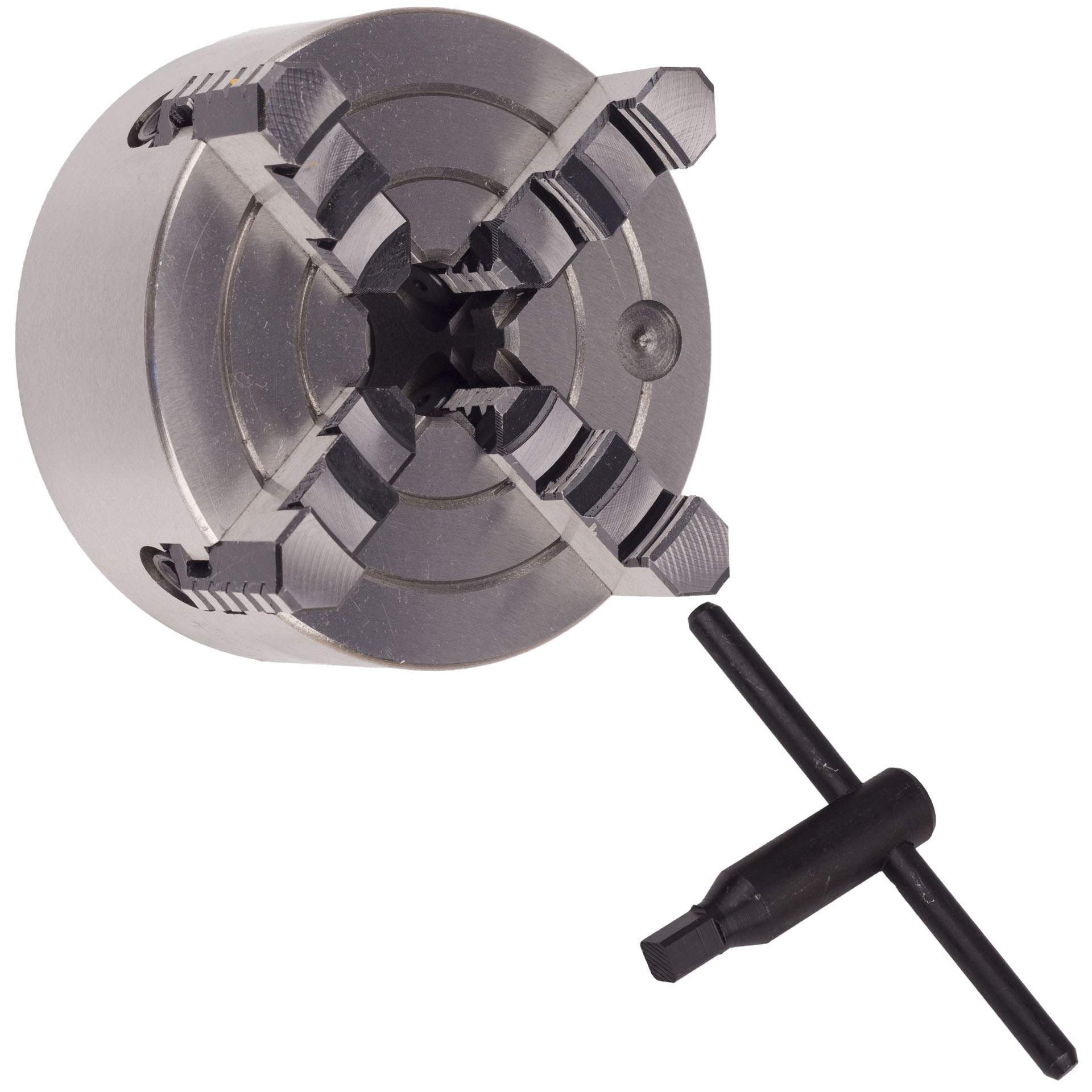

MAC AFRIC 125 MM 4-Jaw Independent Chuck

This chuck is commonly fitted to engineering lathe machines. It is also a high precision accessory. Each jaw on the chuck is separately adjustable.

SKU: EACHUC412 Category: Engineering Accessories

Description
Reviews (0)

Description

Technical Specifications

Chuck Diameter (D): 125 MM
Registration Recess Diameter (D1): 95 MM
Bolt Circle Diameter (D2): 108 MM
Center Hold (D3): 30 MM
Registration Recess Depth (h): 4.5 MM
Max Height (H): 78 MM
Body Thickness (H1): 56 MM
Number of Bolts: 4
Size of Bolts: 6.5 MM (M8)
RPM: —
Handle Length: 125 MM
