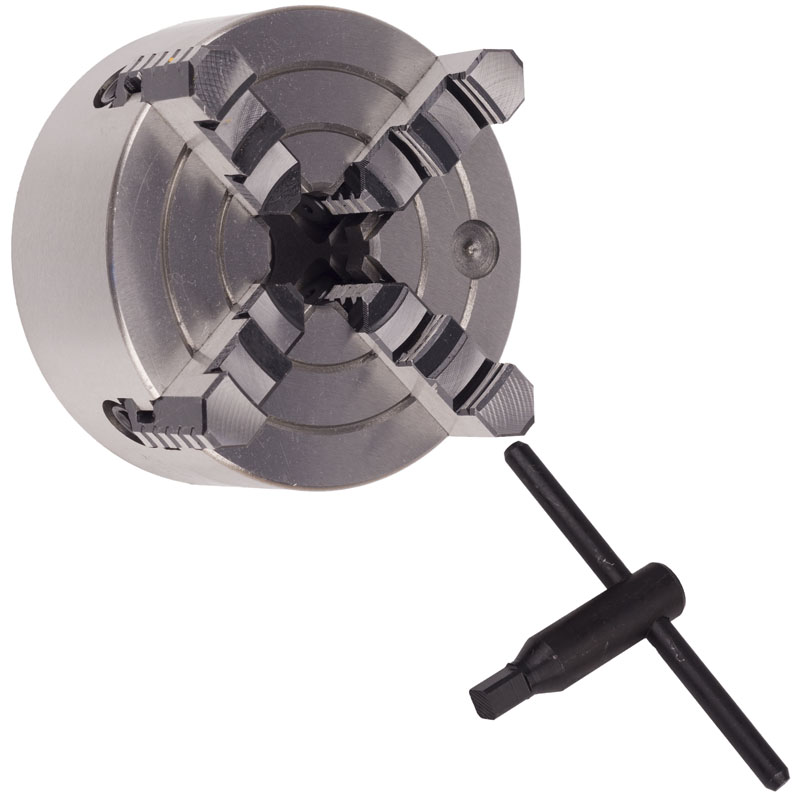

MAC AFRIC 100 MM 4-Jaw Independent Chuck
This chuck is commonly fitted to engineering lathe machines. It is also a high precision accessory. Each jaw on the chuck is separately adjustable.
Description
Technical Specifications
Chuck Diameter (D): 100 MM
Registration Recess Diameter (D1): 72 MM
Bolt Circle Diameter (D2): 84 MM
Center Hold (D3): 25 MM
Registration Recess Depth (h): 4 MM
Max Height (H): 74 MM
Body Thickness (H1): 54 MM
Number of Bolts: 4 Bolts
Size of Bolts: M8
