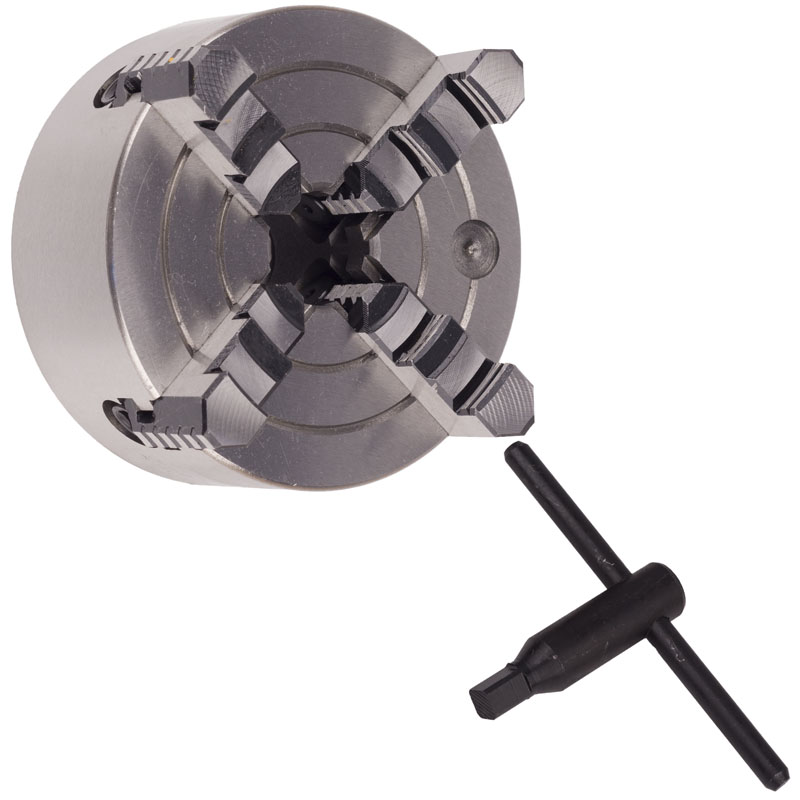

MAC AFRIC 250 MM 4-Jaw Independent Chuck

This chuck is commonly fitted to engineering lathe machines. A high precision accessory. Each jaw is separately adjustable.

SKU: EACHUC425 Category: Engineering Accessories

Description
Reviews (0)

Description

Technical Specifications

Chuck Diameter (D): 250 MM
Registration Recess Diameter (D1): 150 MM
Bolt Circle Diameter (D2): 104.8 MM
Center Hold (D3): 65 MM
Registration Recess Depth (h): 6 MM
Max Height (H): 117.5 MM
Body Thickness (H1): 85 MM
Number of Bolts: 4
Size of Bolts: M12
RPM: —
Handle Length: 257 MM
