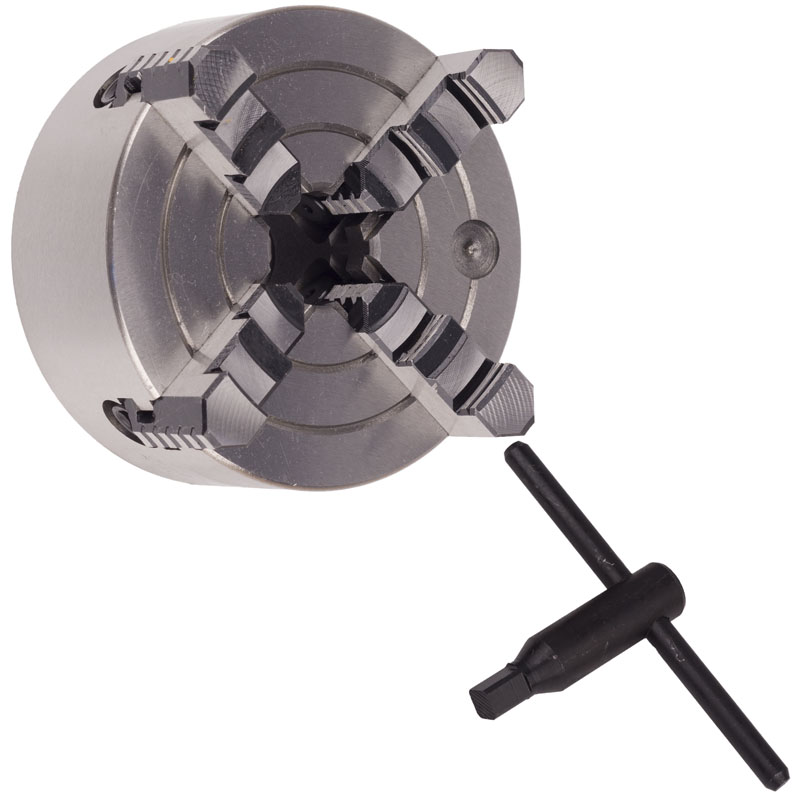

MAC AFRIC 160 MM 4-Jaw Independent Chuck

This chuck is commonly fitted to engineering lathe machines. It is also a high precision accessory. Each jaw on the chuck is separately adjustable.

SKU: EACHUC416 Category: Engineering Accessories

Description
Reviews (0)

Description

Technical Specifications

Chuck Diameter (D): 160 MM
Registration Recess Diameter (D1): 65 MM
Bolt Circle Diameter (D2): 95 MM
Center Hold (D3): 45 MM
Registration Recess Depth (h): 5 MM
Max Height (H): 96.5 MM
Body Thickness (H1): 65 MM
Number of Bolts: 4 Bolts
Size of Bolts: M10
RPM: —

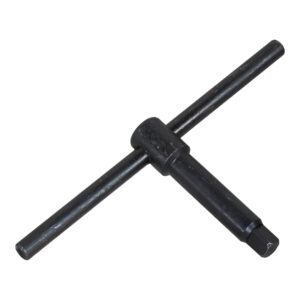

Handle Length: 160 MM
