MAC AFRIC 160 MM 3-Jaw Self Centering Chuck

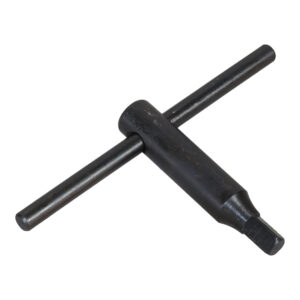

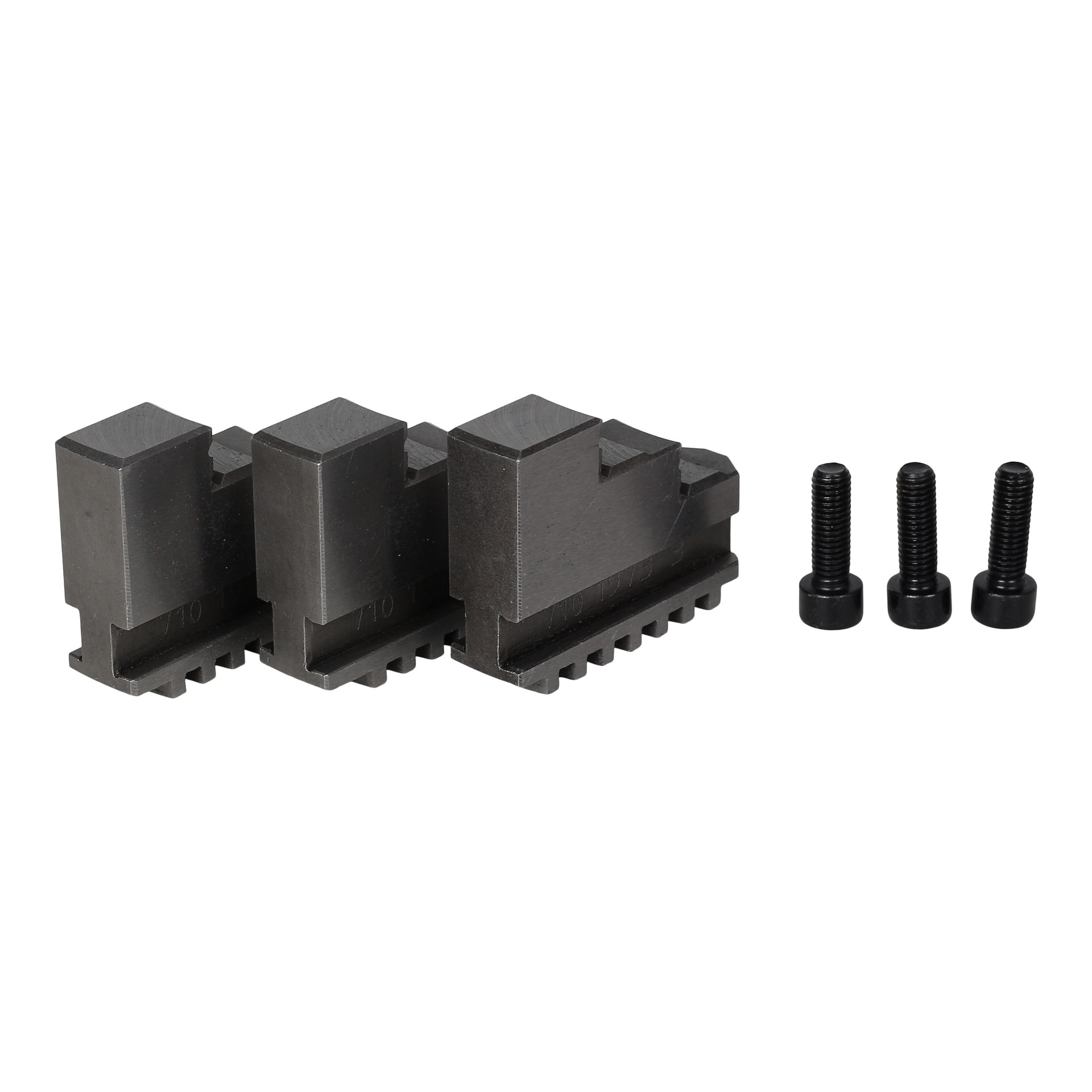

This chuck is commonly fitted to engineering lathe machines. It is also a high precision accessory. It comes with reverse jaws and a chuck key for quick adjustments.

SKU: EACHUC316 Category: Engineering Accessories

Description
Reviews (0)

Description

Technical Specifications

Chuck Diameter (D): 160 MM
Registration Recess Diameter (D1): 130 MM
Bolt Circle Diameter (D2): 142 MM
Center Hold (D3): 40 MM
Registration Recess Depth (h): 5 MM
Max Height (H): 95 MM
Body Thickness (H1): 65 MM
Number of Bolts: 3 Bolts
Size of Bolts: M10
RPM: 3 000 RPM
Handle Length: 160 MM
