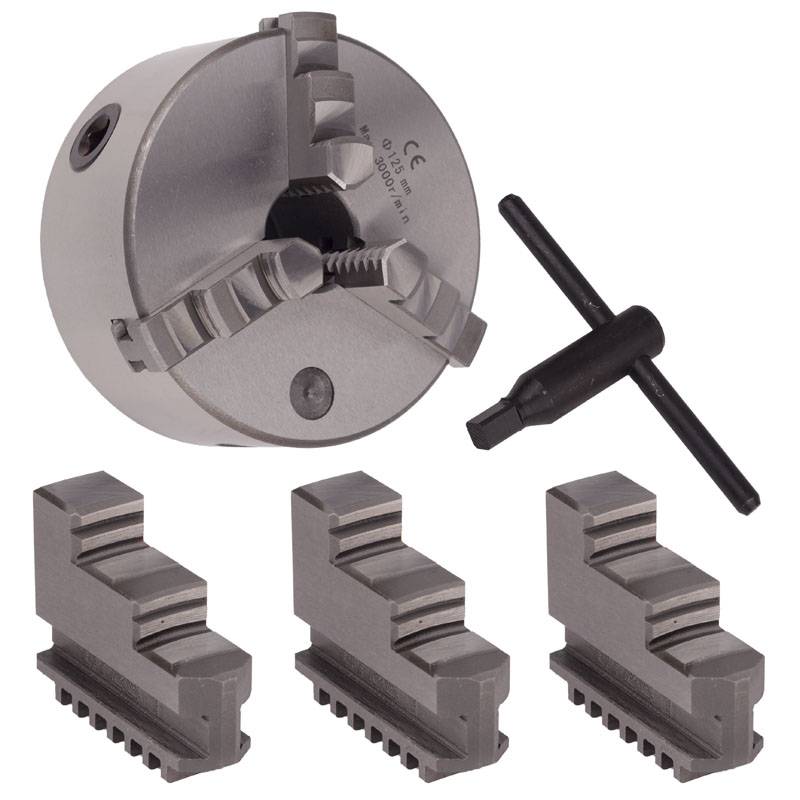

MAC AFRIC 200 MM 3-Jaw Self Centering Chuck
This chuck is commonly fitted to engineering lathe machines. It is also a high precision accessory. It comes with reverse jaws and a chuck key for quick adjustments.
Description
Technical Specifications
Chuck Diameter (D): 200 MM
Registration Recess Diameter (D1): 165 MM
Bolt Circle Diameter (D2): 182 MM
Center Hold (D3): 65 MM
Registration Recess Depth (h): 5 MM
Max Height (H): 109 MM
Body Thickness (H1): 75 MM
Number of Bolts: 3 Bolts
Size of Bolts: M10
RPM: 3 000 RPM
Handle Length: 160 MM
