MAC AFRIC 200 MM 3-Jaw Self Centering Chuck K11200/D6

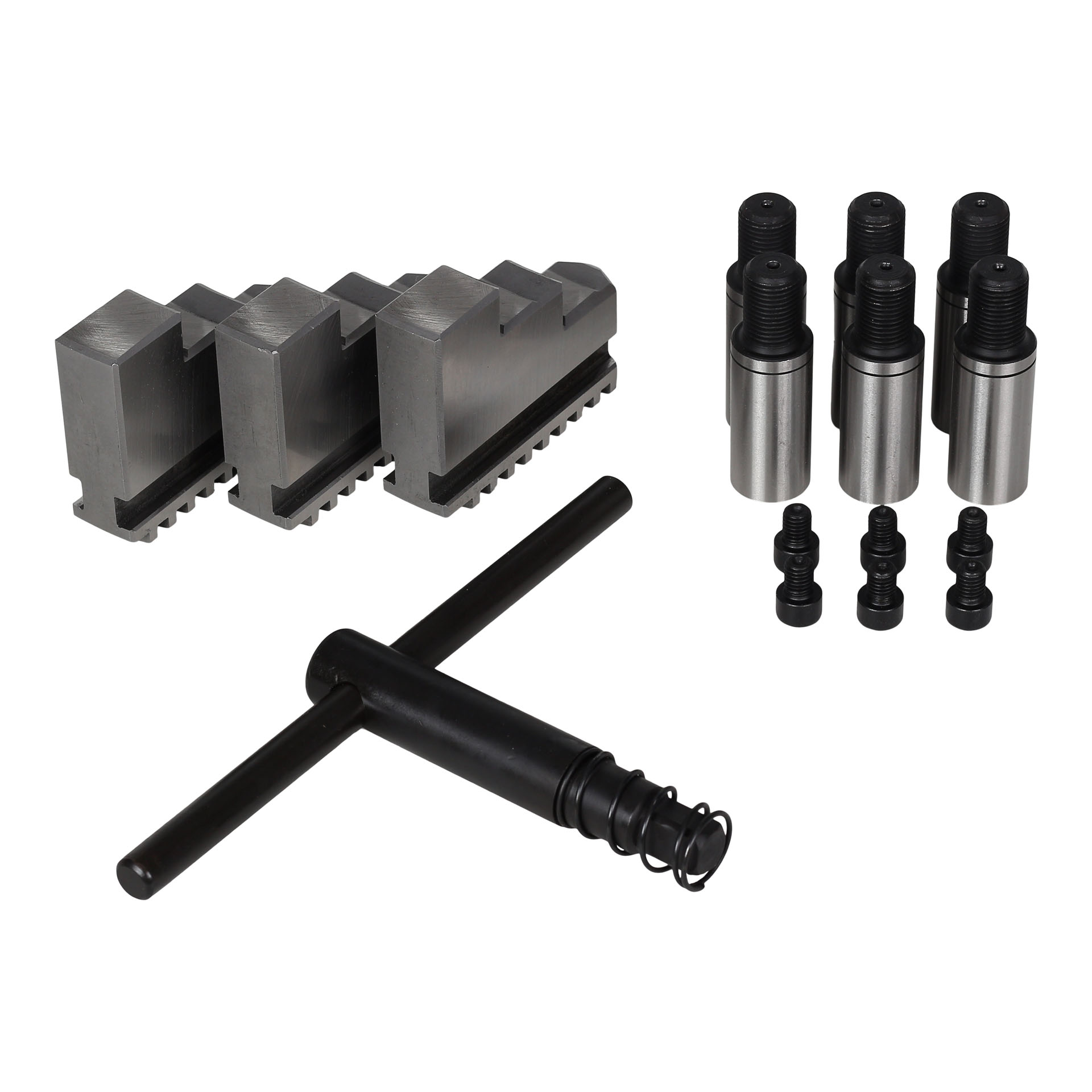

Execution: Standard 3-jaw chuck with high-quality cast iron body With Camlock direct mount according to DIN 55029 Inclusive each 1 set hard inside and hard outside solid jaws Suitable for conventional turning lathes Standard accessories: 1 set hard inside solid jaws DIJ-DK11 1 set hard outside solid jaws DOJ-DK11
Description
Technical Specifications
Chuck Diameter (D): 200 MM
Registration Recess Diameter (D1): 106 MM
Bolt Circle Diameter (D2): 133 MM
Center Hold (D3): 60 MM
Registration Recess Depth (h): 5 MM
Max Height (H): —
Body Thickness (H1): 90 MM
Number of Bolts: 3 Bolts
Size of Bolts: M6
RPM: 3 000 RPM
Handle Length: 150 MM
