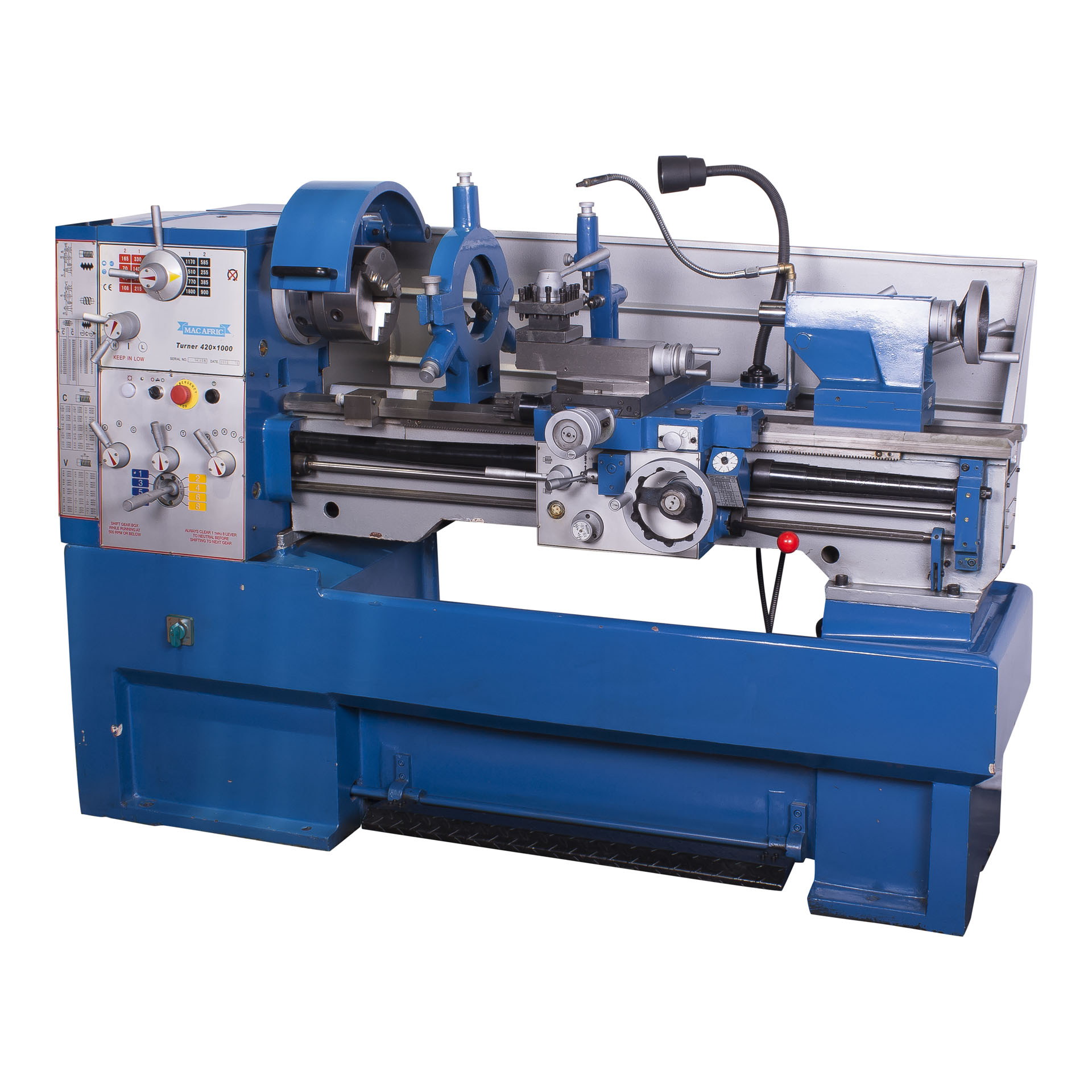

MAC AFRIC Industrial Tool Room Lathe D420

Description

Technical Specifications

Power Output: 3 KW (4 HP)
Voltage: 380V
Frequency: 50/60 Hz
Max. Swing Over Bed: 410 mm (16″ in)
Max. Swing Over Cross Slide: 255 mm (10″ in)
Max. Swing Over Gap: 558.8 x 190 mm (22″ in x 7 1/2″ in)
Distance Between Centres: 1 000 mm (39″ in)
Width Of Bed: 250 mm (10″ in)
Spindle Bore: 52 mm (2″ in)
Taper of Spindle Bore: MT 6
Range of Spindle Speeds: 45 – 1 800 RPM (16 Speeds)
Diameter of Tailstock Quill: 50 mm (2″ in)
Max. Travel of Tailstock Quill: 120 mm (4 3/4″ in)
Taper of Tailstock: MT 4
Metric Threads Can be Cut: 0.2 – 14 mm (39 Nos)
Imperial Threads Can be Cut: 2 – 27 TPI (45 Nos)
Range of Longitudinal Feeds: 0.05 – 1.7 mm/rev (0.002 – 0.067 inch/rev)
Range of Cross Feeds: 0.025 – 0.85 mm/rev (0.001 – 0.0335 inch/rev)
Gross Weight: 1 555 kg
Max. Rotatory Angle of Tool Post: N/A
Tool Slide Travel: 140 mm (5 1/2″ in)
