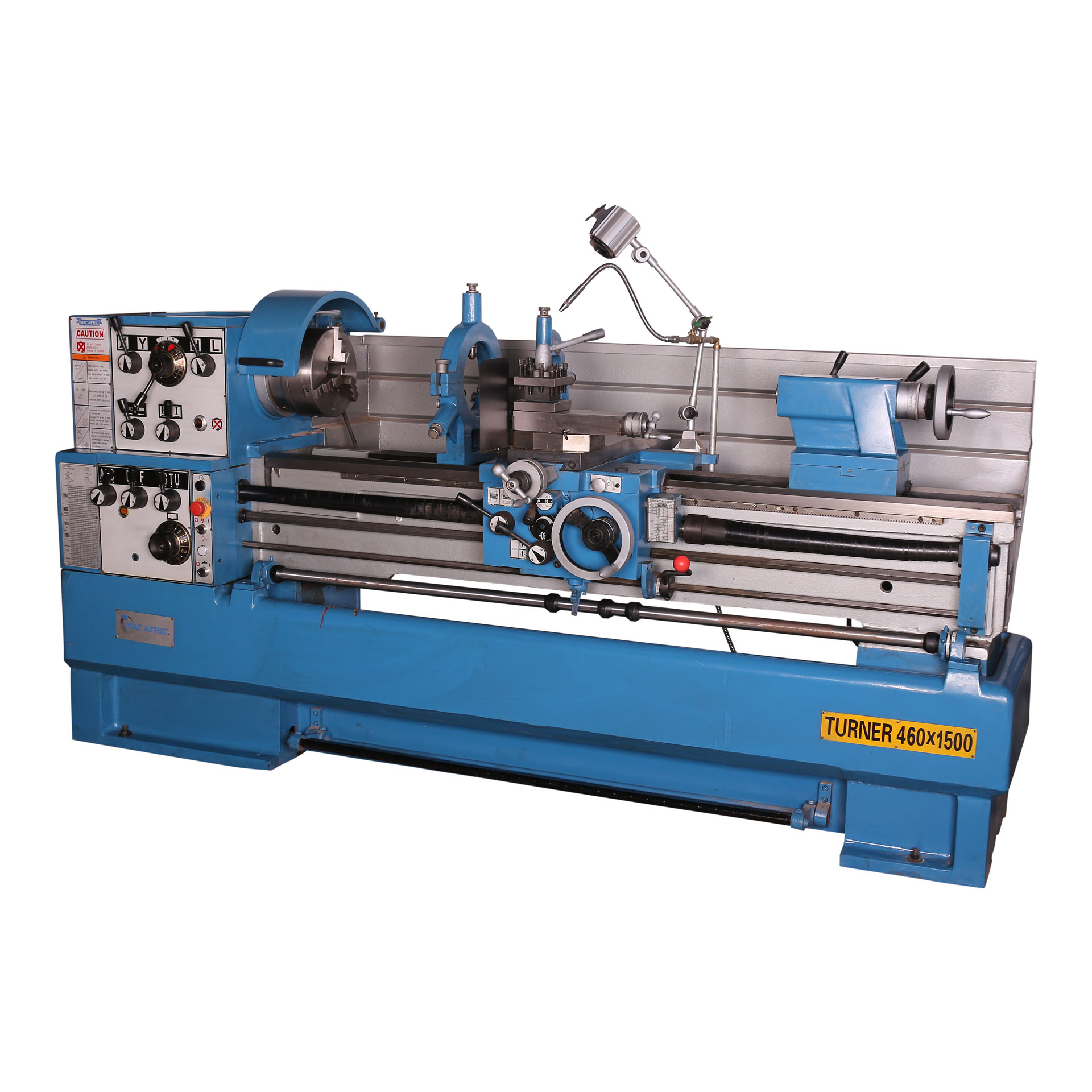

MAC AFRIC 460 x 1500 MM Lathe

Description

Technical Specifications
Feature
Specification
Swing Over Bed: 410 mm
Swing Over Cross Slide: 224 mm
Swing in Gap (Diameter × Width): 640 × 240 mm
Centre Height: 205 mm
Distance Between Centres: 760 / 1,010 / 1,515 / 1500 mm
Bed Width: 300 mm
Maximum Cutting Tool Section: 25 × 25 mm
Cross-Slide Travel: 290 mm
Top-Slide Travel: 128 mm
Spindle Bore: Ø58 mm
Spindle Nose: D1-6″
Spindle Morse Taper (Nose / Sleeve): MT6 / MT4
Number of Spindle Speeds: 12
Spindle Speed Range: 25–2,000 rpm
Leadscrew Diameter and Thread: Ø35 mm × 4 TPI or 6 mm pitch
Imperial Thread Range: 2–112 TPI, 60 selections
Metric Thread Range: 0.1–14 mm, 41 selections
Diametral Pitch Range: 4–112 DP, 50 selections
Module Pitch Range: 0.1–7, 34 selections
Imperial Longitudinal Feed Range: 0.0011″–0.0633″/rev, 42 selections
Metric Longitudinal Feed Range: 0.031–1.7 mm/rev, 42 selections
Imperial Cross-Feed Range: 0.00033″–0.01837″/rev, 42 selections
Metric Cross-Feed Range: 0.014–0.784 mm/rev, 42 selections
Tailstock Quill Travel: 123 mm
Tailstock Quill Diameter: Ø60 mm
Tailstock Quill Taper: MT4
Spindle Drive Motor: 5 hp or 7.5 hp, 4-pole, 3-phase
Coolant Pump Motor: 1/8 hp, 2-pole, 3-phase
Key Features
410 mm swing over bed.
224 mm swing over cross slide.
640 × 240 mm swing in gap.
Available with 760 mm, 1,010 mm, 1,515 mm, or 2,010 mm distance between centres.
300 mm bed width.
Ø58 mm spindle bore with D1-6″ spindle nose.
12 spindle speeds from 25–2,000 rpm.
Supports imperial, metric, diametral pitch, and module threading.
Tailstock with Ø60 mm quill, 123 mm travel, and MT4 taper.
Available with 5 hp or 7.5 hp three-phase spindle motor.
