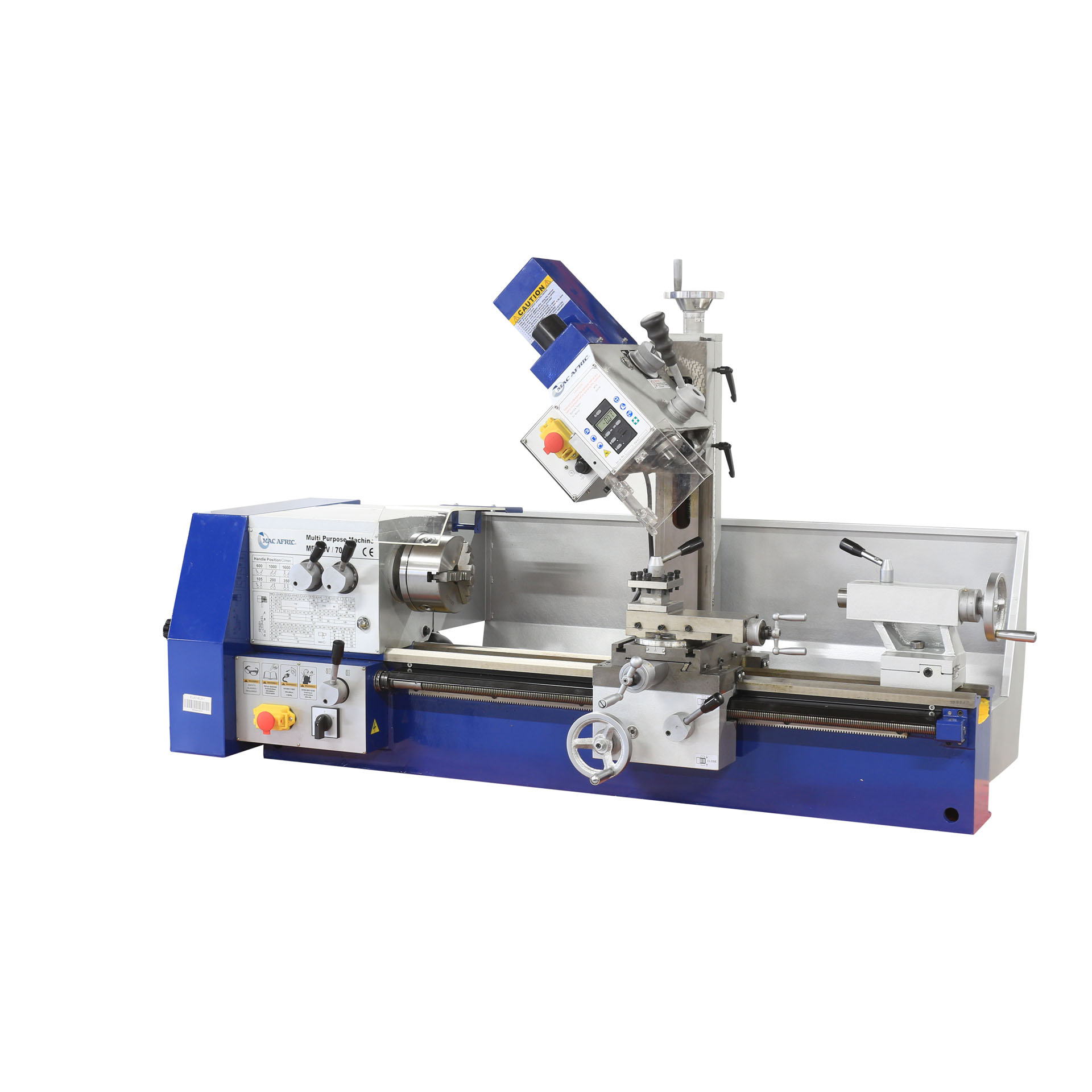

MAC AFRIC 550 MM Geared Head Lathe, Drilling & Milling Machine
Compact precision & versatility all in one package. Customer Notice: Please note that this is images of the new model, some branches may still stock the old model. Call your nearest store regarding the model in stock.
Description
Technical Specifications
Power Output: 550 W
Voltage: 230 V (Single Phase)
Frequency: 50 HZ
Max. Swing Over Bed: 250 MM
Max. Swing Over Cross Slide: 115 MM
Max. Swing Over Gap: 115 MM
Distance Between Centres: 550 MM
Width Of Bed: 640 MM
Spindle Bore: 26 MM
Taper of Spindle Bore: M.T#2
Range of Spindle Speeds: 100 – 2500 RPM
Diameter of Tailstock Quill: 26 MM
Max. Travel of Tailstock Quill: 50 MM
Taper of Tailstock: M.T.#2
Metric Threads Can be Cut: 20/0.25 – 3.5 MM
Imperial Threads Can be Cut: NA
Range of Longitudinal Feeds: 0.05/0.1 MM
Gross Weight: 195 KG
Tool Slide Travel: 0.05 MM
