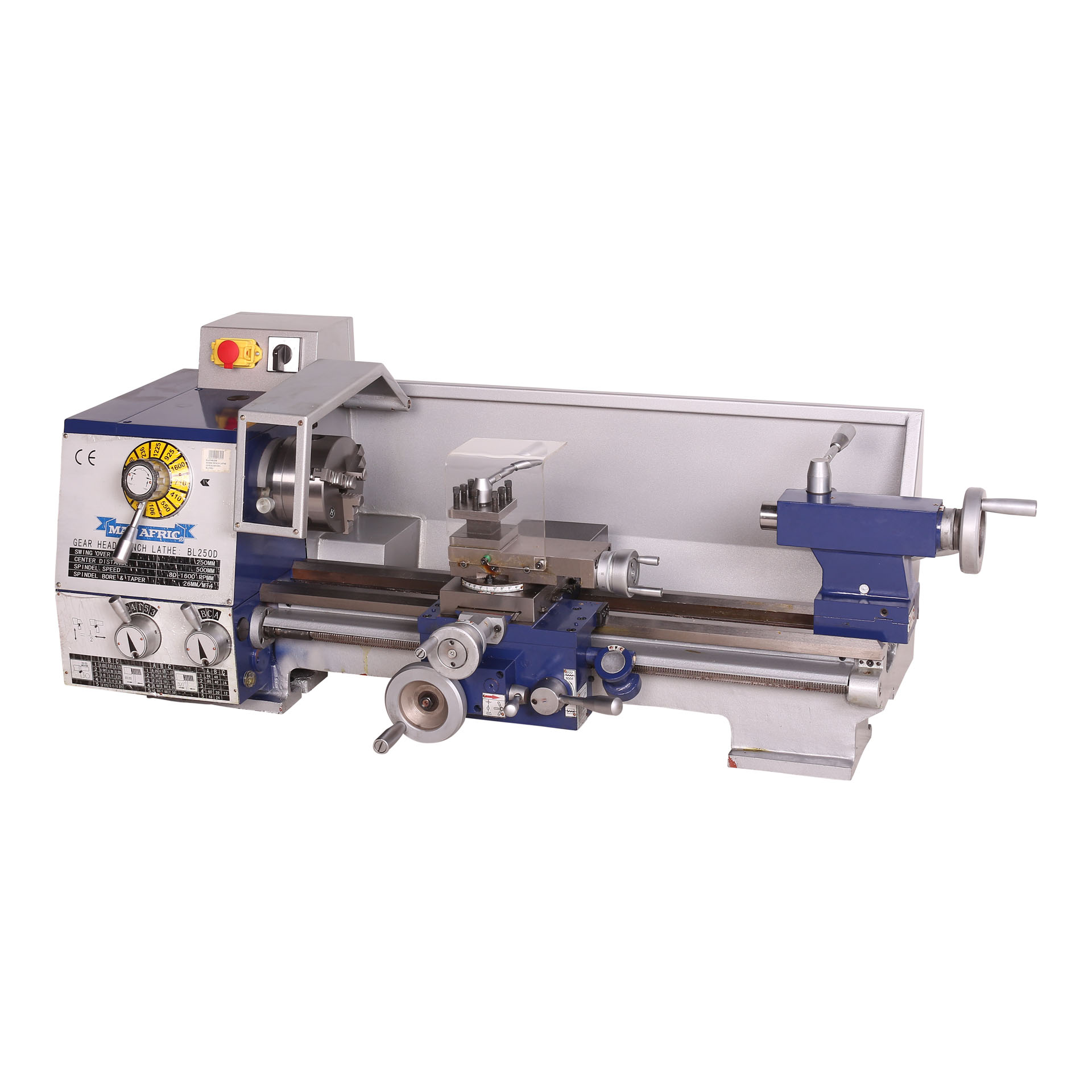

MAC AFRIC 500 MM Geared Head Bench Lathe

This lathe adopts full gear transmission with great stability and high tooling accuracy. Superb precision incorporated with longitudinal / cross auto-feed. The lathe is user friendly with smooth operation.

SKU: ELATHE250 Category: Engineering Equipment

Description
Reviews (0)

Description

Technical Specifications

Power Output: 750 W
Voltage: 230 V
Frequency: 50 HZ
Max. Swing Over Bed: 250 MM
Max. Swing Over Cross Slide: 150 MM
Distance Between Centres: 500 MM
Width Of Bed: 115 MM
Taper of Spindle Bore: M.T.#3
Range of Spindle Speeds: 80 – 1600 RPM (12 Steps)
Max. Travel of Tailstock Quill: 60 MM
Taper of Tailstock: MT#3
Metric Threads Can be Cut: 0.25 – 2.5 MM
Imperial Threads Can be Cut: 4 – 60 TPI
Range of Longitudinal Feeds: 0.0527 – 1.2912 MM/REV
Range Of Cross Feeds: 0.011 – 0.276 MM/REV
Gross Weight: 180 KGS
Tool Slide Travel: 75 MM
