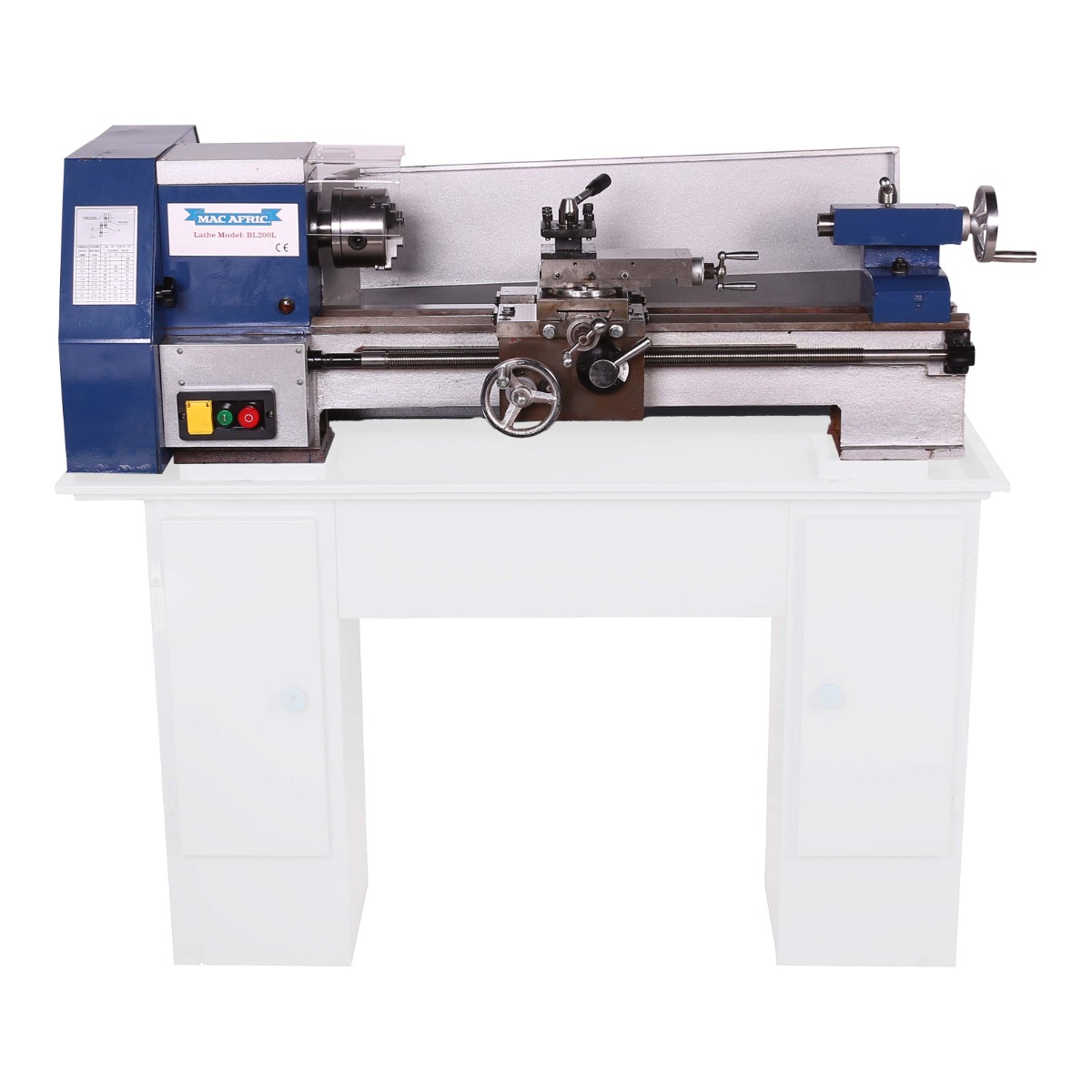

MAC AFRIC 520 MM Belt Driven Screw cutting Bench Lathe (Excluding Stand)
Discover precision craftsmanship with the MAC AFRIC 520 MM Belt Driven Screw Cutting Bench Lathe (Excluding Stand)! Designed to elevate your machining capabilities, this lathe boasts a robust power output of 550W, providing efficiency for all your turning tasks. With a versatile range of features including a maximum swing over bed of 210mm, spindle speeds from 140 to 1800 RPM, and the ability to cut both metric and imperial threads, this lathe is the ideal companion for the meticulous craftsman seeking unparalleled performance and accuracy.
Description
Technical Specifications
Power Output: 550 W
Voltage: 230 V
Frequency: 50 HZ
Max. Swing Over Bed: 210 MM
Max. Swing Over Cross Slide: 70 MM
Max. Swing Over Gap: 122 MM
Distance Between Centres: 520 MM
Width Of Bed: 115 MM
Spindle Bore: 20 MM
Taper of Spindle Bore: M.T.#3
Range of Spindle Speeds: 140 – 1800 RPM
Max. Travel of Tailstock Quill: 50 MM
Taper of Tailstock: M.T.#2
Metric Threads Can be Cut: 11/04 – 3 MM
Imperial Threads Can be Cut: 17. 8’’ – 48’’
Range of Longitudinal Feeds: 500 MM
Gross Weight: 135 kg
Max. Rotatory Angle of Tool Post: ±45°
Tool Slide Travel: 60 MM
