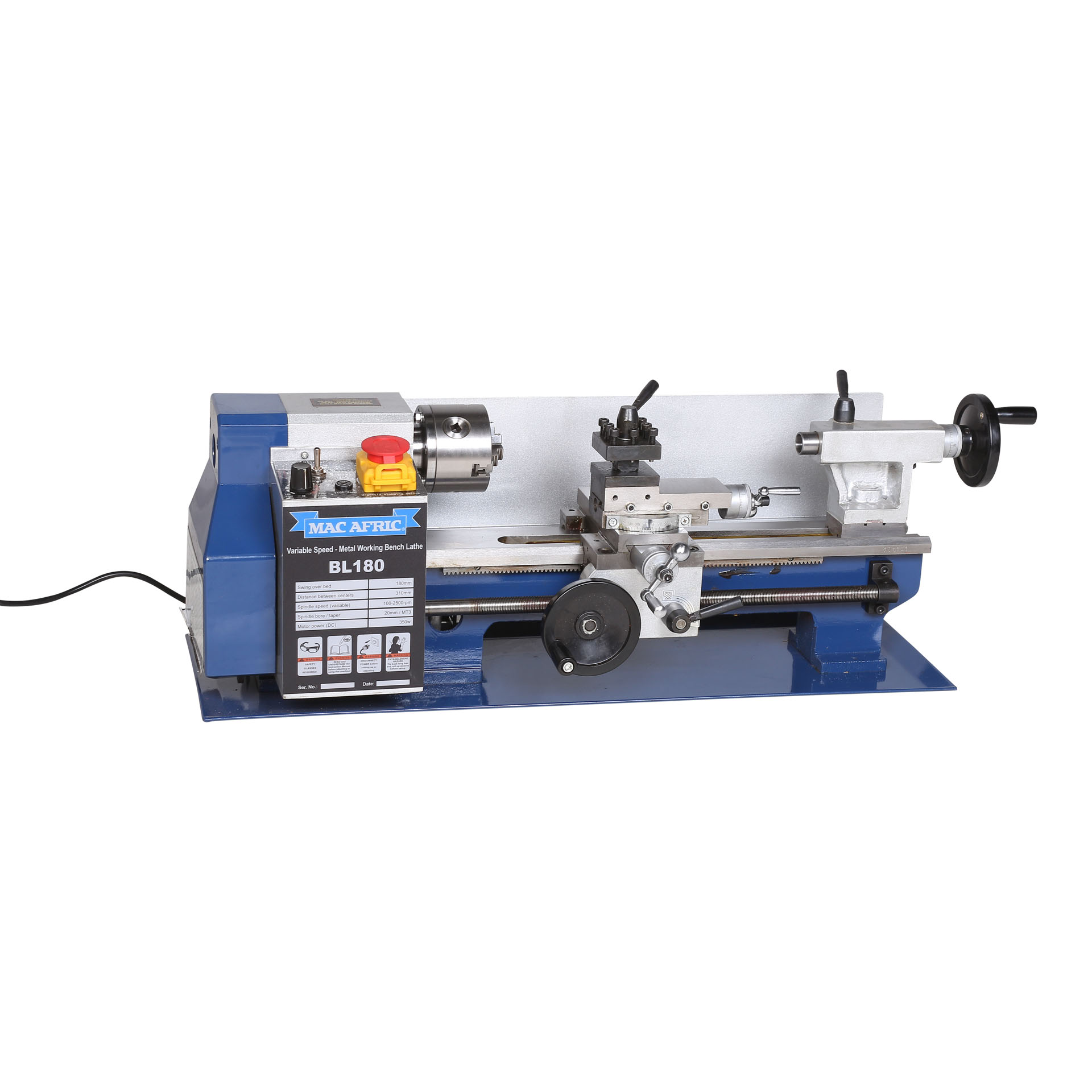

MAC AFRIC BL180 Mini Metal Working Bench Lathe

Introducing the MAC AFRIC BL180 Mini Metal Working Bench Lathe, a top-quality machine designed for model engineers and small job works. With features like a variable spindle speed controlled DC motor and high spindle speed range, this lathe is ideal for both prestigious shops and DIY enthusiasts.

SKU: ELATHE181 Category: Engineering Equipment

Description
Reviews (0)

Description

Technical Specifications

Power Output: 0.4 KW (1/2 HP)
Voltage: 230 V (Single Phase)
Frequency: 50/60 HZ
Motor Speed: 4 500 RPM
Power Transfer: V – Belt
Bearings: Shielded and Lubricated
Max. Swing Over Bed: 180 MM
Max. Swing Over Cross Slide: 105 MM
Max. Swing Over Gap: NA
Distance Between Centres: 310 MM
Width Of Bed: 180 MM
Spindle Bore: 20 MM
Taper of Spindle Bore: MT 3
Range of Spindle Speeds: 200 – 1 150 RPM (Low), 460 – 2 500 RPM (High)
Diameter of Tailstock Quill: NA
Max. Travel of Tailstock Quill: 40 MM
Taper of Tail – Stock: MT 2
Metric Threads Can be Cut: 0.4 – 2 MM (10 Sizes)
Imperial Threads Can be Cut: 12 – 48 TPI (10 Sizes)
