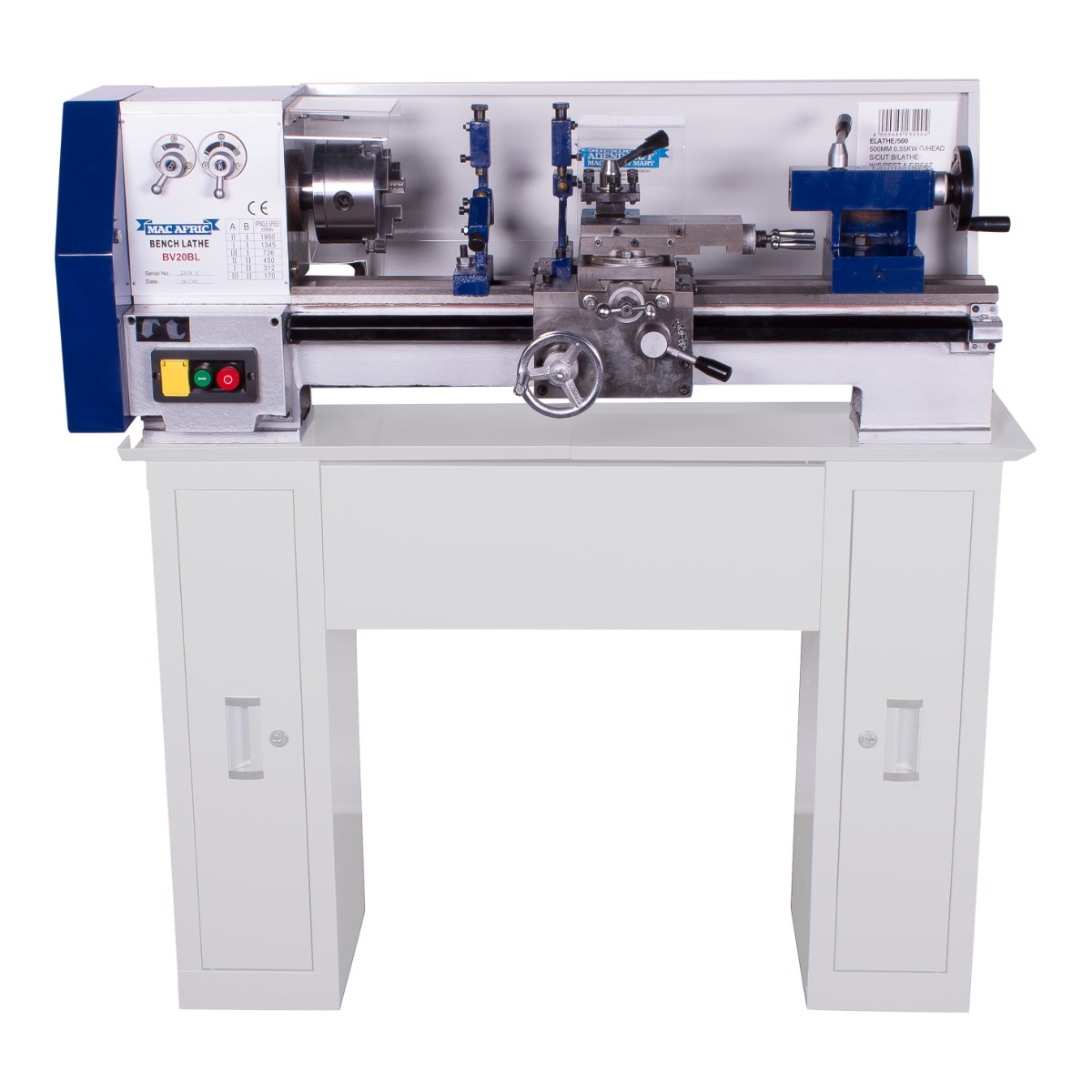

MAC AFRIC 500 MM Geared Head Metal Screw cutting Bench Lathe
(Excluding Stand) Ideal for the automotive and engineering workshops Solid Construction Compact Design
Description
Technical Specifications
Power Output: 370 W
Voltage: 230 V
Frequency: 50 HZ
Max. Swing Over Bed: 210 MM
Distance Between Centres: 550 MM
Width Of Bed: NA
Spindle Bore: 20 MM
Taper of Spindle Bore: MT#3
Range of Spindle Speeds: 170 – 1 710 RPM (6 Steps)
Max. Travel of Tailstock Quill: 20 MM
Taper of Tailstock: NA
Metric Threads Can be Cut: 0.4 – 3 MM (17 Steps)
Imperial Threads Can be Cut: 5 Steps
Range of Longitudinal Feeds: 0.05 – 0.20 MM
Gross Weight: 110 KG
Max. Rotatory Angle of Tool Post: ±45°
Tool Slide Travel: 115 MM
