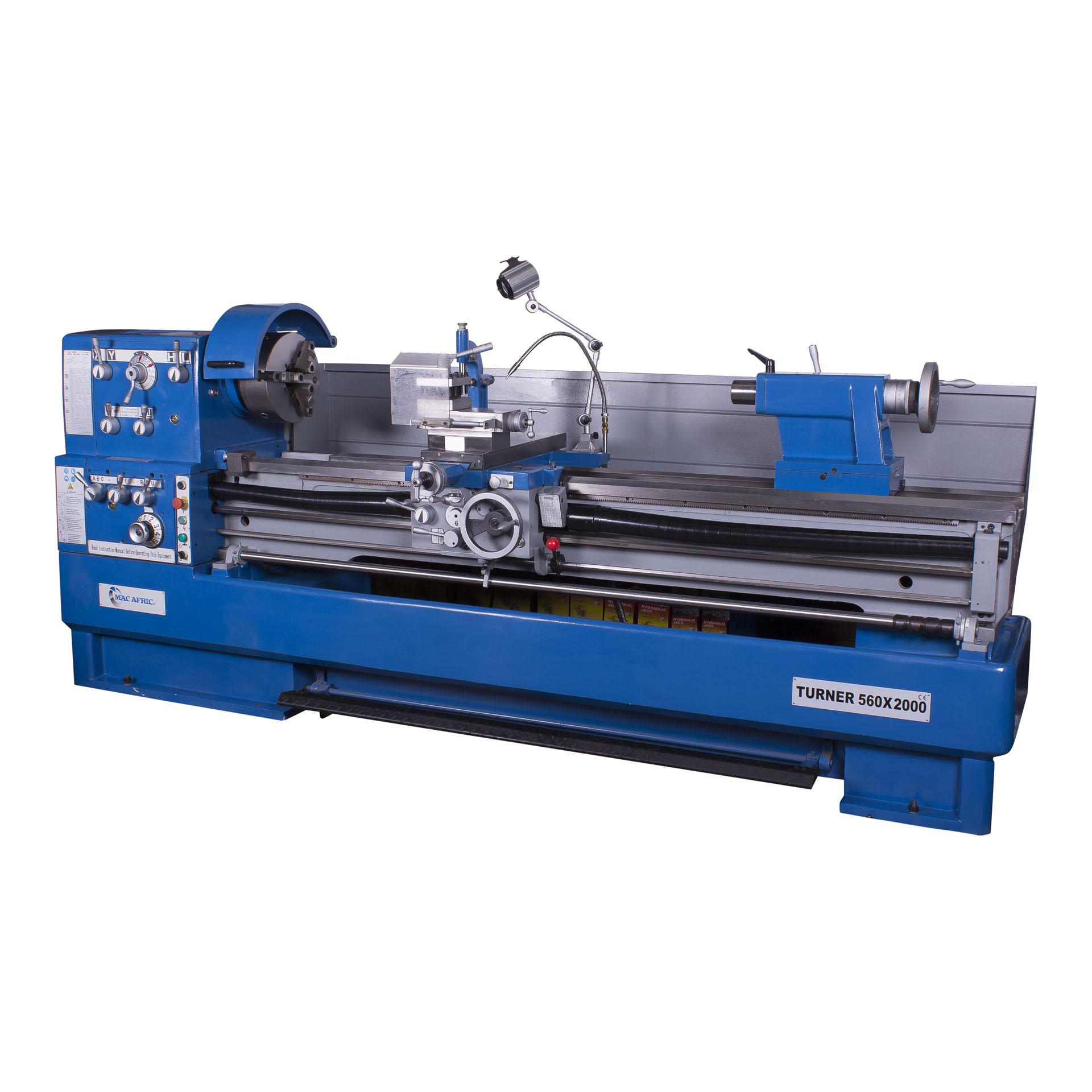

MAC AFRIC 2 M Lathe 560 x 2000 MM
This is the largest MAC-AFRIC Engineering steel lathe available. Sporting a massive 2 meter between centers. Fitted with a work light, lubrication pump, and a large swing over bed. This solution is ideal for larger engineering tasks.
Description
Technical Specifications
Power Output: 7.5 KW (10 HP)
Voltage: 380 V (Three Phase)
Frequency: 50/60 HZ
Max. Swing Over Bed: 560 MM
Max. Swing Over Cross Slide: 355 MM
Max. Swing Over Gap: 785 x 170 MM
Distance Between Centres: 2 M
Width Of Bed: 350 MM
Spindle Bore: 80 MM
Taper of Spindle Bore: MT7
Range of Spindle Speeds: 25 – 1600 RPM
Diameter of Tailstock Quill: 75 MM
Max. Travel of Tailstock Quill: 180 MM
Taper of Tailstock: MT5
Metric Threads Can be Cut: 0.2 – 14 MM
Imperial Threads Can be Cut: 2 – 112 TPI
