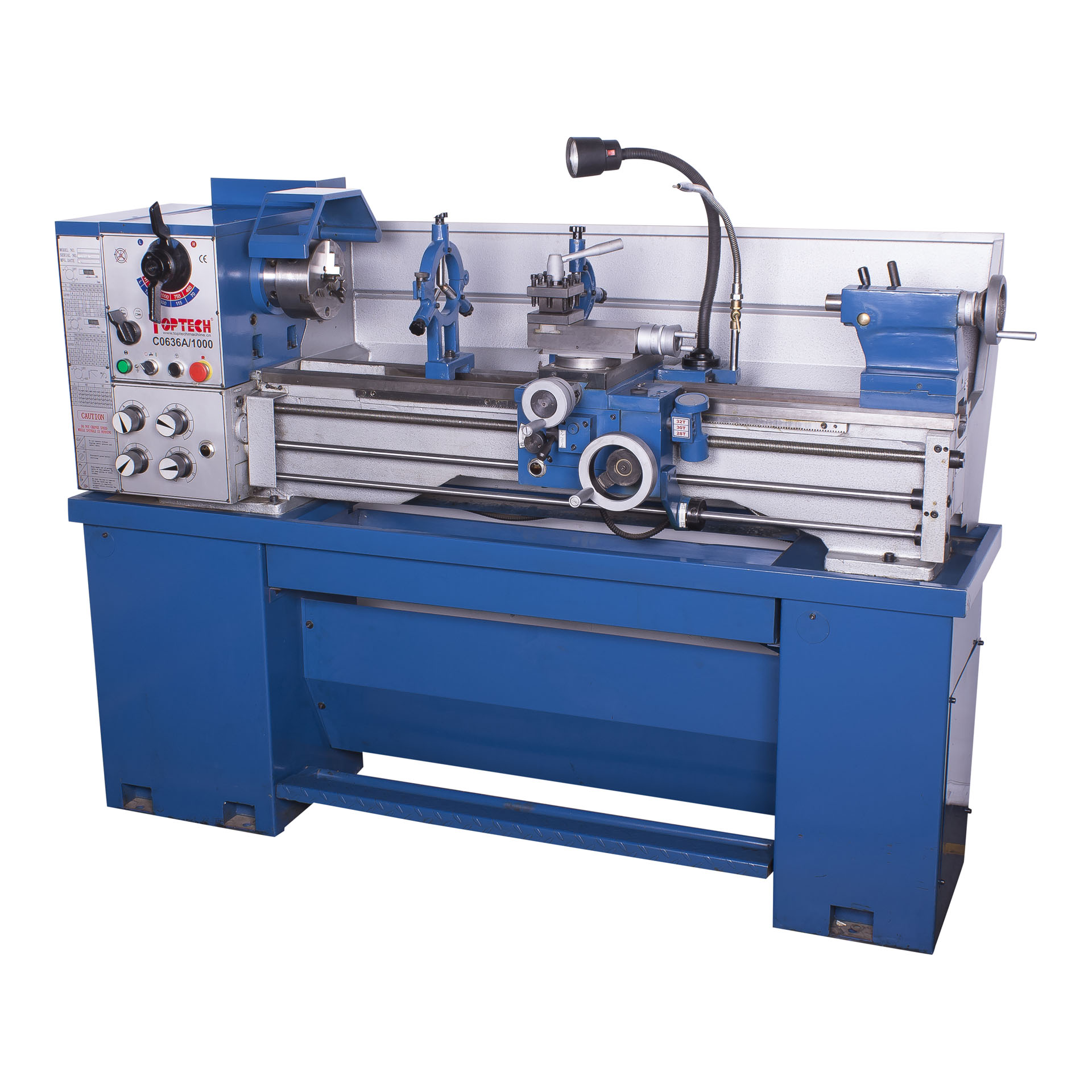

MAC AFRIC 1 M Geared Head Lathe with Stand, Foot Brake & Work Light

This superbly engineered lathe is designed to perform a wide variety of tasks.The largest model is available in a single phase.Features Double V Bed Auto Feed Gear Head.Rigid Solid Construction design.

SKU: ELATHE107 Category: Engineering Equipment

Description
Reviews (0)

Description

Technical Specifications

Power Output: 1.5 KW (2 HP)
Voltage: 220V
Frequency: 50/60 Hz
Max. Swing Over Bed: 356 mm
Max. Swing Over Cross Slide: 220 mm
Max. Swing Over Gap: 506 mm
Distance Between Centres: 1 000 mm (40″ in)
Width Of Bed: 187 mm
Spindle Bore: 38 mm
Taper of Spindle Bore: MT 5
Range of Spindle Speeds: 70 – 2 000 RPM
Diameter of Tailstock Quill: 32 mm
Max. Travel of Tailstock Quill: 100 mm
Taper of Tailstock: MT 3
Metric Threads Can be Cut: 0.4 – 7 mm
Imperial Threads Can be Cut: 4 – 56 TPI
Range of Longitudinal Feeds: 0.052 – 1.392 mm/rev
Range of Cross Feeds: 0.014 – 0.380 mm/rev
Gross Weight: 650 kg
Max. Rotatory Angle of Tool Post: N/A
Tool Slide Travel: N/A
