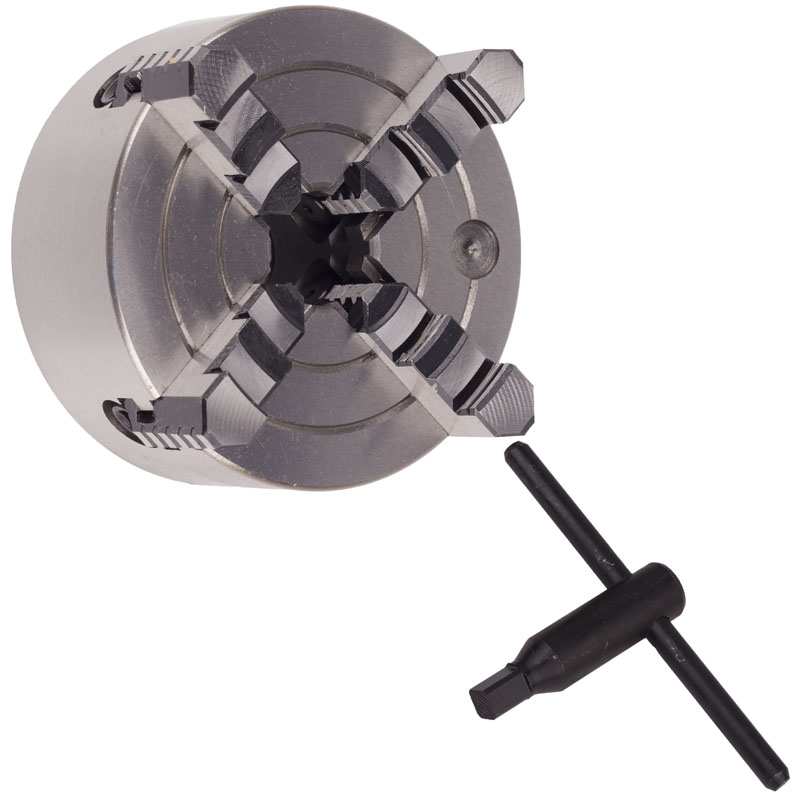

MAC AFRIC 200 MM 4-Jaw Independent Chuck K72-200/D4

Fitted to engineering lathe machines. A high precision accessory. Each jaw is separately adjustable.

SKU: EACHUC103 Category: Engineering Accessories

Description
Reviews (0)

Description

Technical Specifications

Chuck Diameter (D): 200 MM
Registration Recess Diameter (D1): 63.5 MM
Bolt Circle Diameter (D2): 82.6 MM
Center Hold (D3): 56 MM
Registration Recess Depth (h): 13 MM
Max Height (H): 106 MM
Body Thickness (H1): 75 MM
Number of Bolts: 6 Bolts
Size of Bolts: —
RPM: 2 100 RPM
