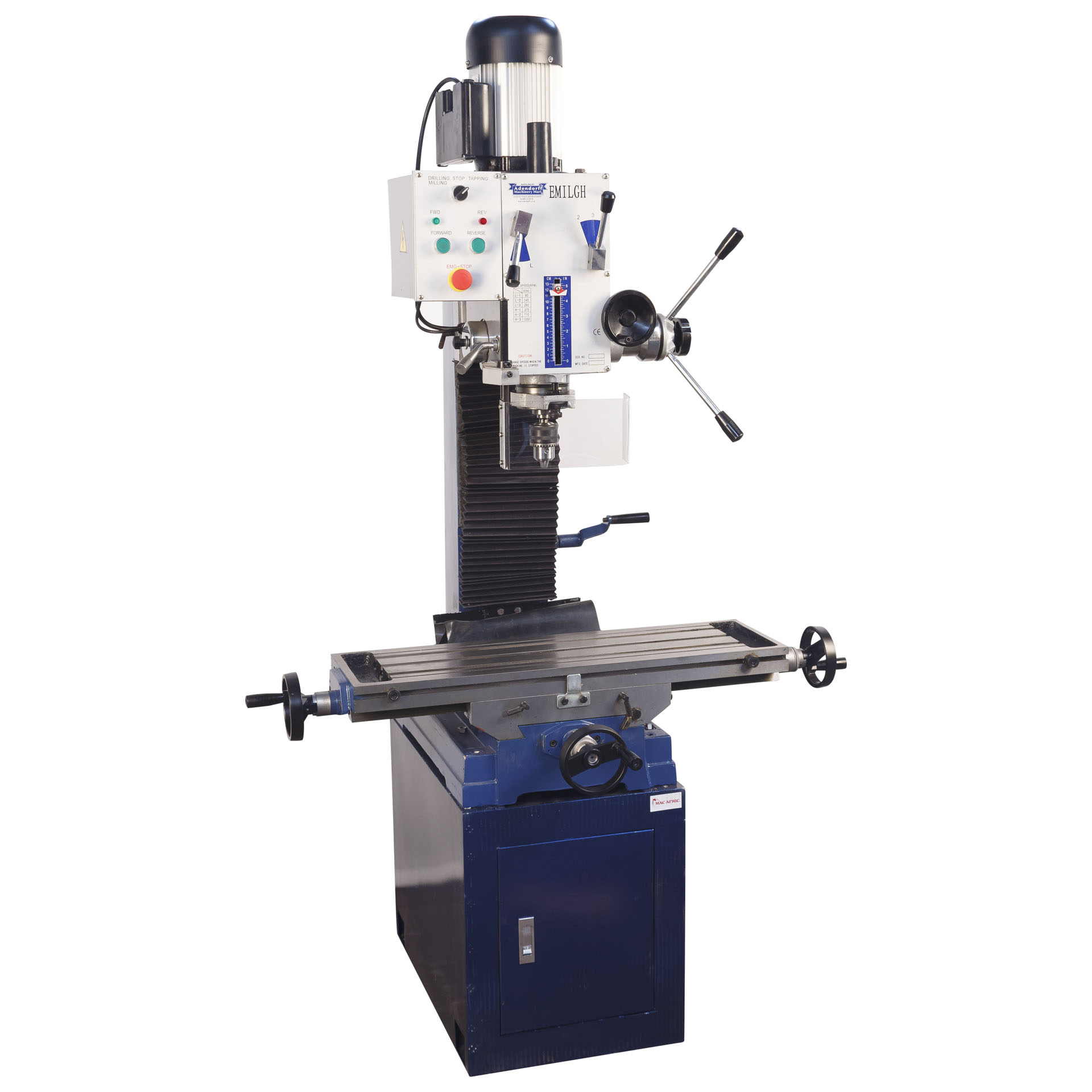

MAC AFRIC 45 MM Geared Head Milling Machine (Square Column)
Ideal for small engineering workshops. Uses milling, drilling, surface cutting, and tapping. Features bi-directional tapping function. Heat-treated head table. Worm gear and hand-feed function. Precision ground gears swivel head.*EXCLUDING STAND (OPTIONAL EXTRA). OPTIONAL EXTRA AUTO FEED (X – Y).
Description
Drill/Mill Machine Specifications
Power Output: 1.5 KW (2 HP)
Max. Drilling Capacity: 45 mm
Max. Face Mill Capacity: 80 mm
Max. End Mill Capacity: 28 mm
Max. Tapping Capacity: M 12
Max. Spindle Stroke: 130 mm
Max. Distance from Spindle Axis to Column: 260 mm
At Perpendicular Direction: ± 90°
Max. Distance from Spindle Nose to Table: 450 mm
Working Area of Table: 800 x 240 mm
Forward and Backward Travel of Table: 175 mm
Left and Right Travel of Table: 500 mm
Spindle Speeds (4P): 50 Hz: 80, 145, 260, 375, 710, 1 250 RPM
60 Hz: 95, 175, 310, 450, 850, 1 500 RPM
Motor Type: ZAY7045FG
Height without Stand: 1 020 mm
Standard Accessories: Double End Wrench, Allen Wrench (3, 4, 5, 6 mm), 6″ Flat Screwdriver, Drill Stock, Wedge, Drawbar, Drawbar Washer
Optional Accessories: 16 mm Drill Chuck, 76 mm Face Milling Cutter, 90/125 mm Parallel Vice, Mill Chuck, Machine Stand, End Milling Cutter (2 – 20 mm), Twist Drill (1 – 31.5 mm)
