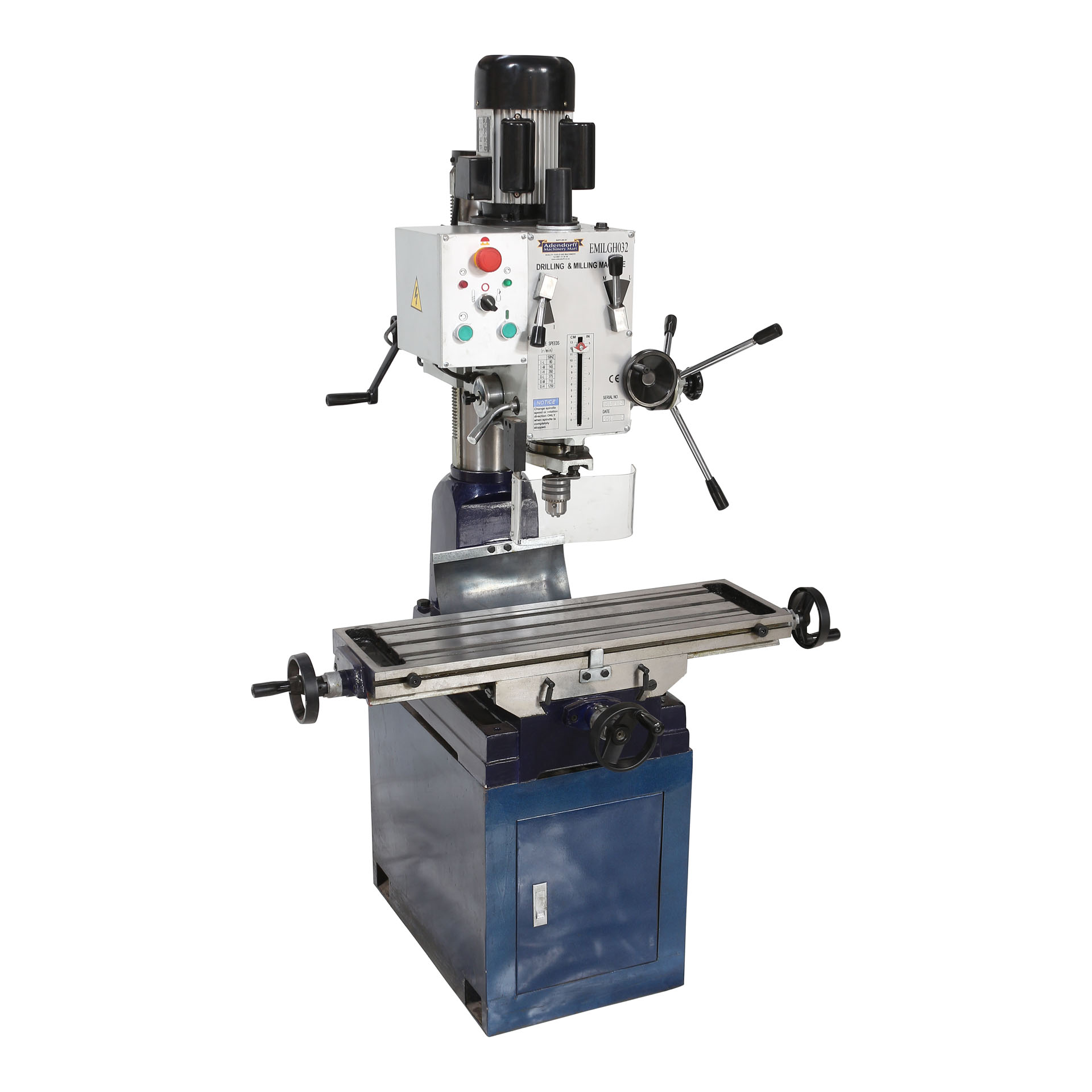

MAC AFRIC 32 MM Geared Head Milling Machine (Round Column)

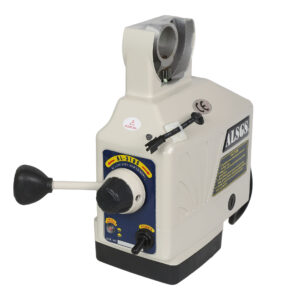

Ideal for small engineering workshops. Uses milling, drilling, surface cutting, and tapping. Features bi-directional tapping function. Heat-treated head table. Worm gear and hand-feed function. Precision ground gears swivel head.*EXCLUDING STAND (OPTIONAL EXTRA). OPTIONAL EXTRA AUTO FEED (X – Y)
Description
Technical Specifications
Power Output: 0.75 KW (1 HP)
Max. Drilling Capacity: 32 mm
Max. Face Mill Capacity: 80 mm
Max. End Mill Capacity: 28 mm
Max. Tapping Capacity: M 12
Max. Spindle Stroke: 130 mm
Max. Distance from Spindle Axis to Column: 260 mm
At Perpendicular Direction: ± 90°
Max. Distance from Spindle Nose to Table: 450 mm
Spindle Taper: MT 3 or R8
Working Area of Table: 700 x 240 mm
Forward and Backward Travel of Table: 175 mm
Left and Right Travel of Table: 400 mm
Spindle Speeds (50 Hz): 80, 145, 260, 375, 710, 1250 RPM
Spindle Speeds (60 Hz): 95, 175, 310, 450, 850, 1500 RPM
Motor Type: ZAY7032FG
Height without Stand: 1 020 mm
Standard Accessories
Double End Wrench
Allen Wrench (3, 4, 5, 6 mm)
6″ Flat Screwdriver
Drill Stock
Wedge
Drawbar
Drawbar Washer
Optional Accessories
16 mm Drill Chuck
76 mm Face Milling Cutter
90/125 mm Parallel Vice
Mill Chuck

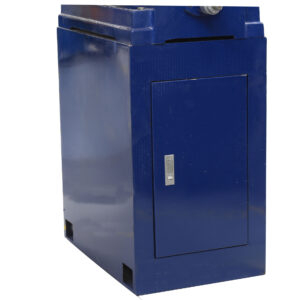

Machine Stand

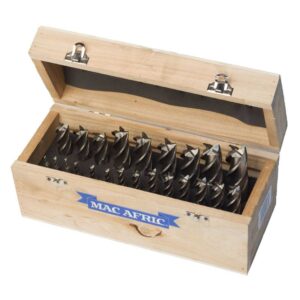

End Milling Cutter (2 – 20 mm)
Twist Drill (1 – 31.5 mm)
