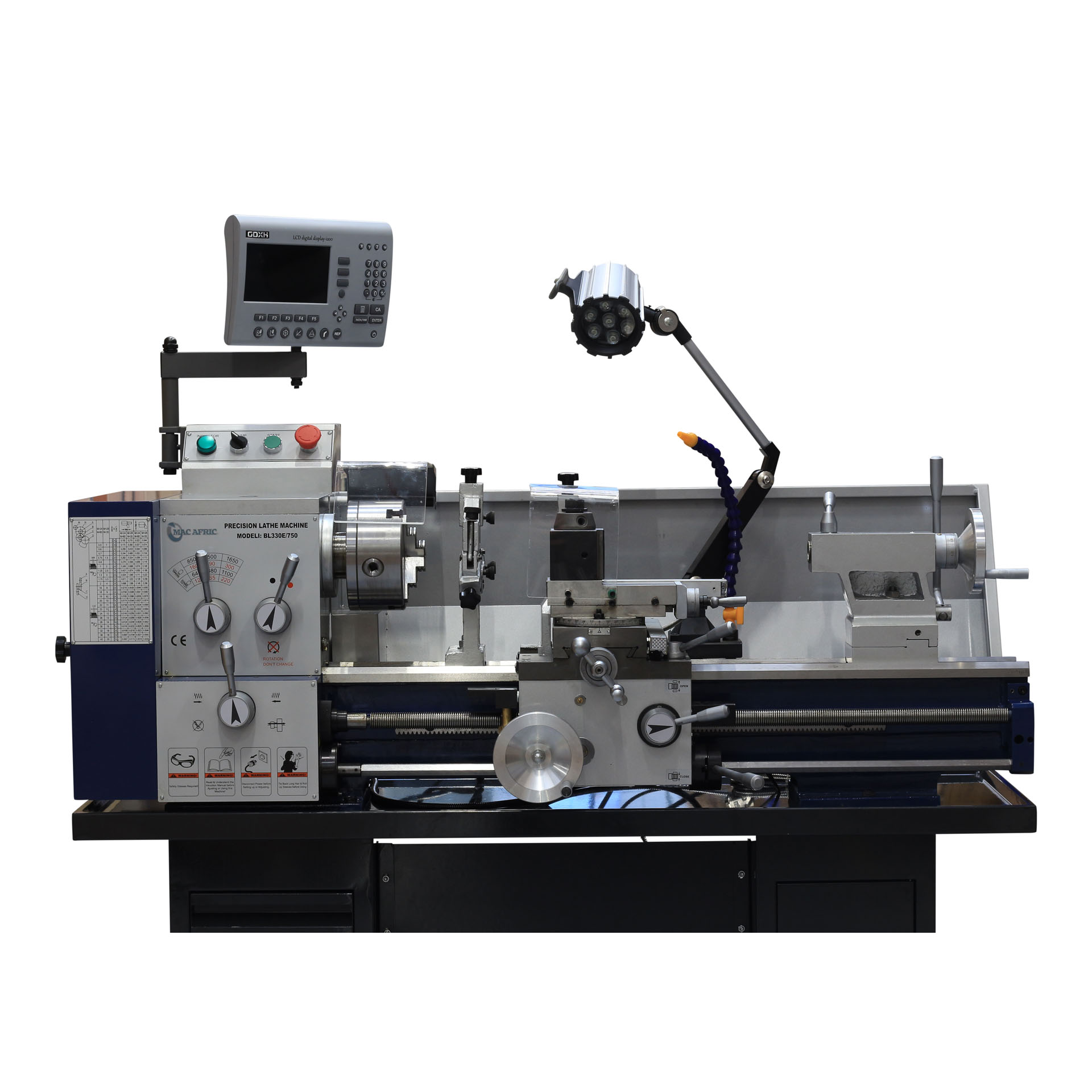

MAC AFRIC 750 MM Professional Geared Head Bench Lathe
Our Mac-Afric ELATHE-750 is superbly engineered, featuring a solid construction, superb precision, and smooth operation with a multitude of features which makes this model outstanding value for money and the professional enthusiast/engineers choice. This model is fitted with a quick change tool post that cuts the set-up time for ease of operation. Additionally, this lathe is equipped with steady and follow rest, LED work light, coolant system, and features a 3-axis D.R.O. system fitted for high accuracy and repetitive turning.
Description
Technical Specifications
Model: MAC AFRIC ELATHE‑750
Power Output: 1,100 W
Voltage / Frequency: 230 V / 50 Hz
Gross Weight: 240 kg
Lathe Stand: Not included (optional accessory)
Max. Swing Over Bed: 330 mm
Max. Swing Over Cross Slide: 220 mm
Distance Between Centres: 750 mm
Width of Bed: 160 mm
Tool Slide Travel: 160 mm
Spindle Bore: 38 mm
Spindle Taper: MT#5
Spindle Speed Range: 60 – 1,650 rpm (12 steps)
Drive Type: Geared Head
Metric Threads: 0.5 – 4 mm (17 steps)
Imperial Threads: 9 – 40 TPI (24 steps)
Longitudinal Feed Range: 0.1 – 1.396 mm/rev
Cross Feed Range: 0.025 – 2.34 mm/rev
Tailstock Quill Diameter: 40 mm
Tailstock Quill Travel: 70 mm
Tailstock Taper: MT#3
Digital Readout: 2‑axis precision system
Quick Change Tool Post: Included
Coolant System: Integrated
Work Light: LED type
Steady & Follow Rest: Included
Key Features & Benefits
Precision 2‑axis D.R.O. system – ensures highly accurate and repeatable machining results.
Quick‑change tool post – minimizes downtime and allows fast tool swaps between cuts.
Geared head with 12 speed steps (60–1650 rpm) – delivers strong torque and flexibility for various materials.
Integrated coolant system and LED work light – improve cutting performance and operator comfort.
Steady and follow rest included – supports long or delicate workpieces for stable turning.
Rigid 160 mm cast‑iron bed – resists deflection for smooth, precise operation.
Compact 750 mm between centers – ideal for bench installations in smaller workshops.
Typical Applications
Precision turning and part fabrication
Repair, maintenance, and custom machining
Toolroom and production training environments
Turning of mild steel, aluminum, brass, and other non‑ferrous materials
FAQ
Q: Does the ELATHE‑750 include a lathe stand?
A: The lathe stand is optional and sold separately. The machine is designed to sit securely on a heavy‑duty workbench or purpose‑built stand.
Q: What materials can this lathe handle?
A: It’s suited for most common metals including mild steel, brass, aluminum, copper — ideal for toolrooms and fabrication work.
Q: Can the D.R.O. be recalibrated or reset?
A: Yes — the dual‑axis D.R.O. system allows easy recalibration for precise, repeatable accuracy.
Q: Is this lathe suitable for training or technical workshops?
A: Yes — its safety features, precise controls, and durable build make it well suited to engineering schools and training centers.
