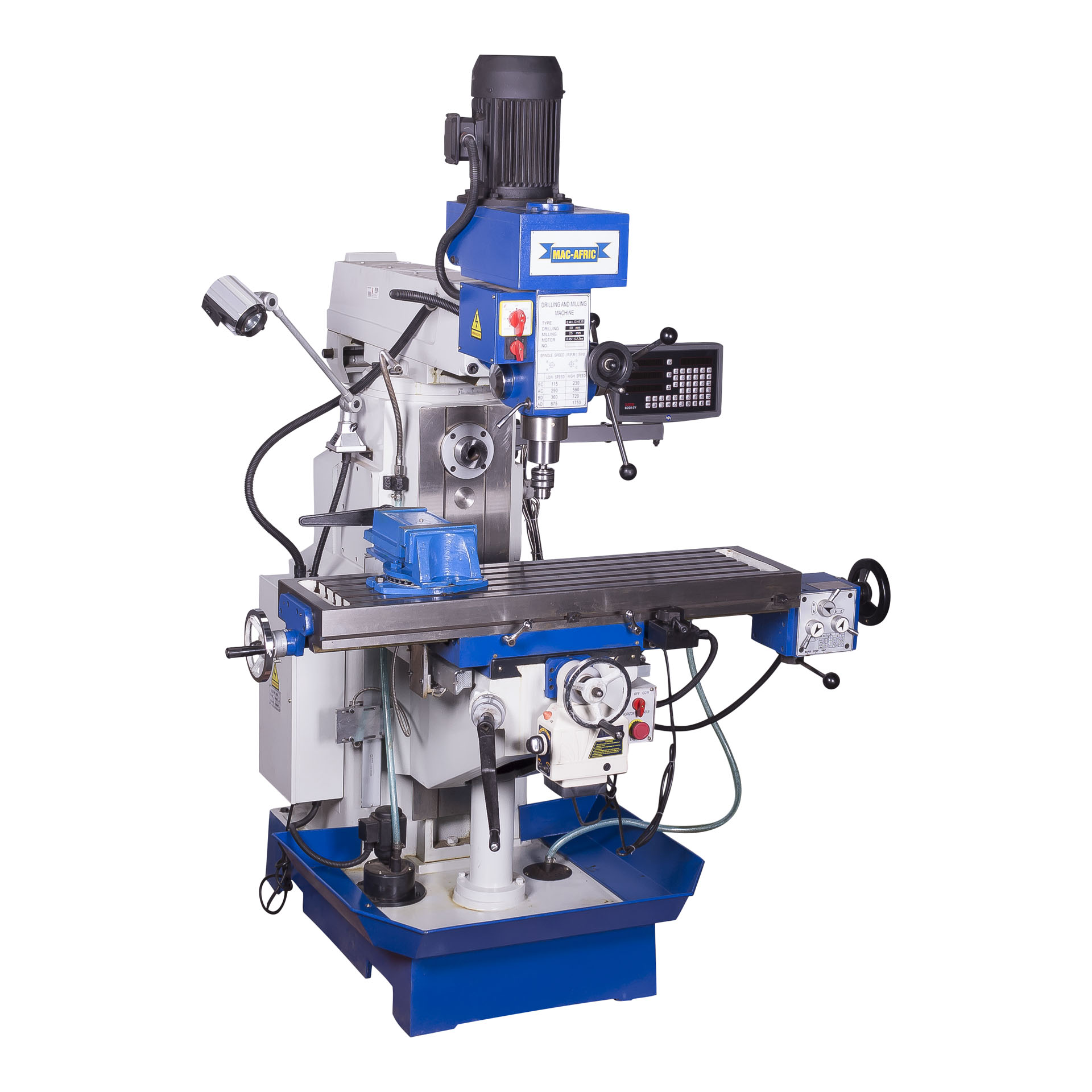

MAC AFRIC Dual Motor Geared Head Milling Machine

*Accessories incl.: Water pump, light, digital readout, and auto-feed. The Mac Afric 635 Geared Head Milling Machine is designed and made with uncompromising quality. Dual motors allow for Vertical & Horizontal Milling. Fitted with a 3 axis D.R.O., Coolant Pump and Power Feeds allows for a much less labor-intensive & more accurate results.

SKU: EMILGH635 Category: Engineering Equipment

Description
Reviews (0)

Description

Technical Specifications

Motor Power: 1.5 KW / 2 HP (H) and 2.2 KW / 3 HP (V)
Voltage: 380 V @ 50 HZ
Table Size: 1 120 x 230 MM
Table Travel: 630 x 350 MM
Cross Travel: 100 – 480 MM
Max. Drilling: 50 MM
Max. Boring: 120 MM
Knee Travel: NA
Spindle Taper: MT#4
Max. End Milling: 25 MM
Max. Tapping: M16
Spindle Speed: 115 – 1 750 RPM (12 Steps)
Spindle Speed (Low): 115, 290, 360, 875 MM
Spindle Speed (High): 230, 580, 720, 1 750 MM
Extra Features
Water Pump Light
Digital Readout
Auto-Feed
