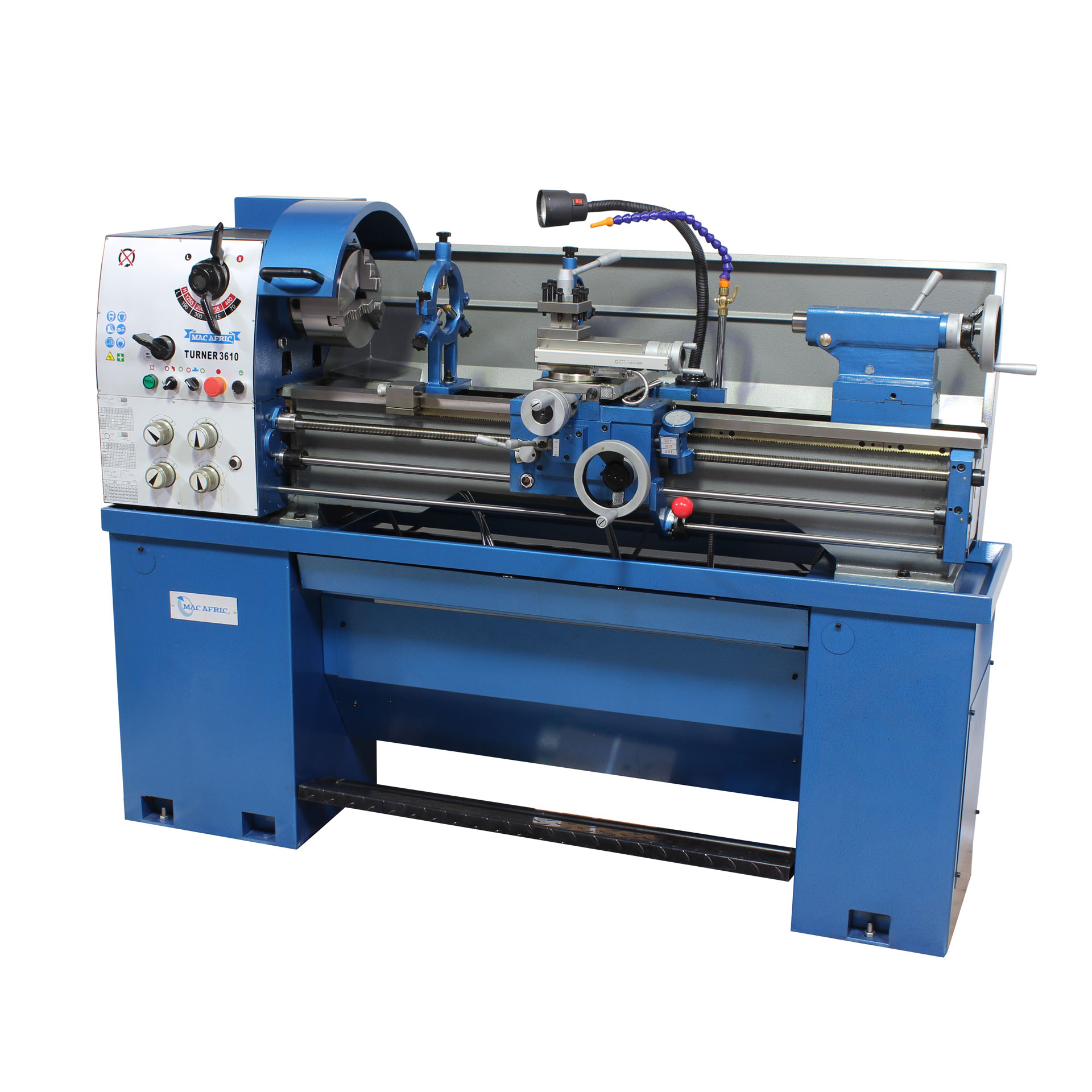

MAC AFRIC 1 M Tool Room Metal Turning Lathe (With D.R.O)
Ideal for smaller commercial workshops, this machine comes standard fitted with a 3-Axis DRO. Also comes with all the necessities listed below. Our most comprehensive 1m Engineering Lathe solution. Includes: 3 Jaw self-centering chuck 4 Jaw independent chuck Stand & Drip try Work Light Steady & Follow Rest 3 Axis D.R. O (X-Y-Z)
Description
Technical Specifications
Power Output: 1.5 KW (2 HP)
Voltage: 220V
Frequency: 50/60 Hz
Max. Swing Over Bed: 356 mm
Max. Swing Over Cross Slide: 210 mm
Max. Swing Over Gap: 506 mm
Distance Between Centres: 1 000 mm (39″ in)
Width Of Bed: 187 mm
Spindle Bore: 52 mm
Taper of Spindle Bore: MT 6
Range of Spindle Speeds: 70 – 2 000 RPM
Diameter of Tailstock Quill: 32 mm
Max. Travel of Tailstock Quill: 100 mm
Taper of Tailstock: MT 3
Metric Threads Can be Cut: 0.45 – 7.5 mm
Imperial Threads Can be Cut: 4 – 112 TPI
Range of Longitudinal Feeds: 0.052 – 1.392 mm/rev
Range of Cross Feeds: 0.014 – 0.380 mm/rev
Gross Weight: 650 kg
