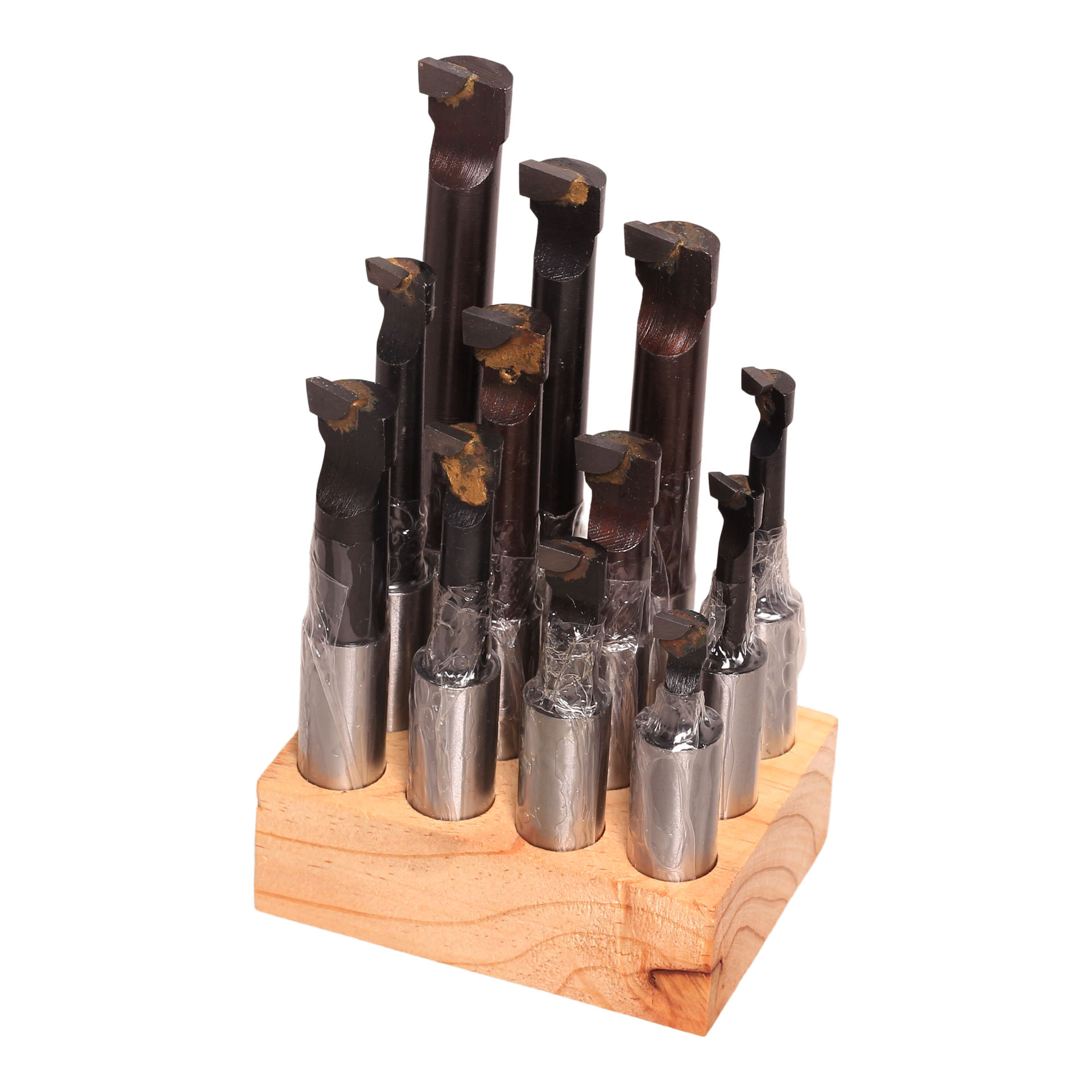

MAC AFRIC 19 MM (3/4″ IN) Boring Bar Set 12 Piece Shank
Shank Diameter- 3/4″ Minimum Boring Range: 7/16″ – 13/16″ (see below) Overall Length: 3-1/8″ to 6-1/2″ (see below) Boring Depth Range: 1-1/8″ to 4-1/2″ (see below)
Description
Technical Specifications
Shank Size: 3/4″ IN (18 MM)
Bar One: 11 MM x 83 MM
Bar Two: 11 MM x 97 MM
Bar Three: 11 MM x 112 MM
Bar Four: 14 MM x 92 MM
Bar Five: 14 MM x 112 MM
Bar Six: 14 MM x 130 MM
Bar Seven: 18 MM x 102 MM
Bar Eight: 18 MM x 127 MM
Bar Nine: 18 MM x 150 MM
Bar Ten: 20 MM x 112 MM
Bar Eleven: 20 MM x 140 MM
Bar Twelve: 20 MM x 170 MM
Material: Tungsten Tip, C-6 Carbide, Heat-treated Alloy Steel
