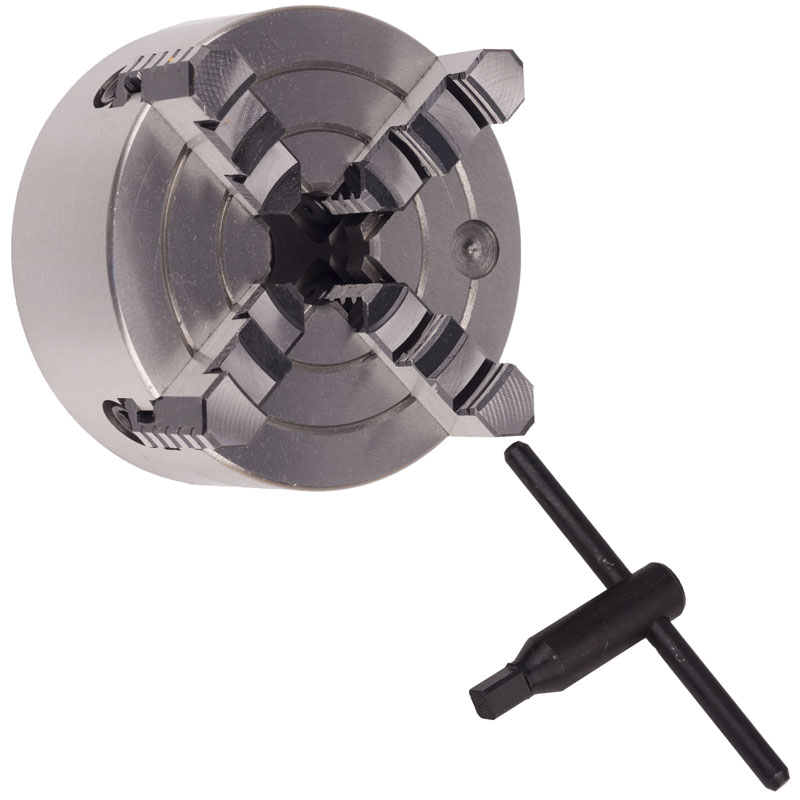

MAC AFRIC 250 MM 4-Jaw Independent Chuck K72/250/D6

Execution: 4-jaw independent chuck made out of cast iron With Camlock- direct mount according to DIN 55029 Four separate adjustable jaws Including milled T-slots from a diameter of 300 mm Inclusive one set hard outside solid jaws Application: Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes

SKU: EACHUC105 Category: Engineering Accessories

Description
Reviews (0)

Description

Technical Specifications

Chuck Diameter (D): 250 MM
Registration Recess Diameter (D1): 106 MM
Bolt Circle Diameter (D2): 133 MM
Center Hold (D3): 60 MM
Registration Recess Depth (h): —
Max Height (H): —
Body Thickness (H1): 90 MM
Number of Bolts: 4 Bolts
Size of Bolts: —
RPM: 2 000 RPM
Handle Length: 200 MM
