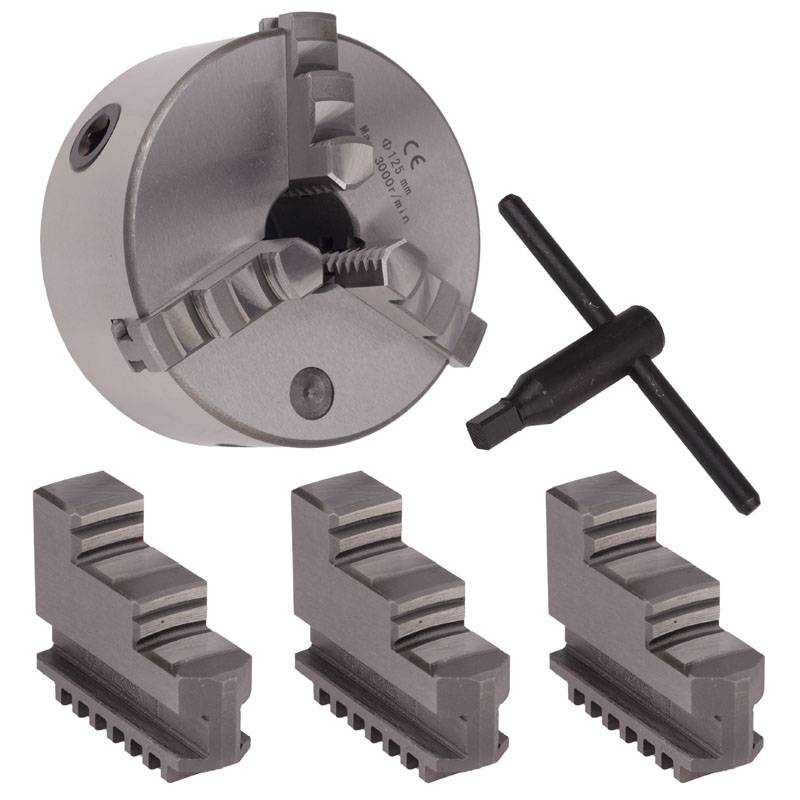

MAC AFRIC 80 MM 3-Jaw Self Centering Chuck K11-80
Fitted to engineering lathe machines. A high precision accessory. It comes with reverse jaws and a chuck key for quick adjustments.
Description
Technical Specifications
Chuck Diameter (D): 80 MM
Registration Recess Diameter (D1): 55 MM
Bolt Circle Diameter (D2): 66 MM
Center Hold (D3): 16 MM
Registration Recess Depth (h): 3.5 MM
Max Height (H): 66 MM
Body Thickness (H1): 50 MM
Number of Bolts: 3
Size of Bolts: 5 MM
RPM: 4 800 RPM
