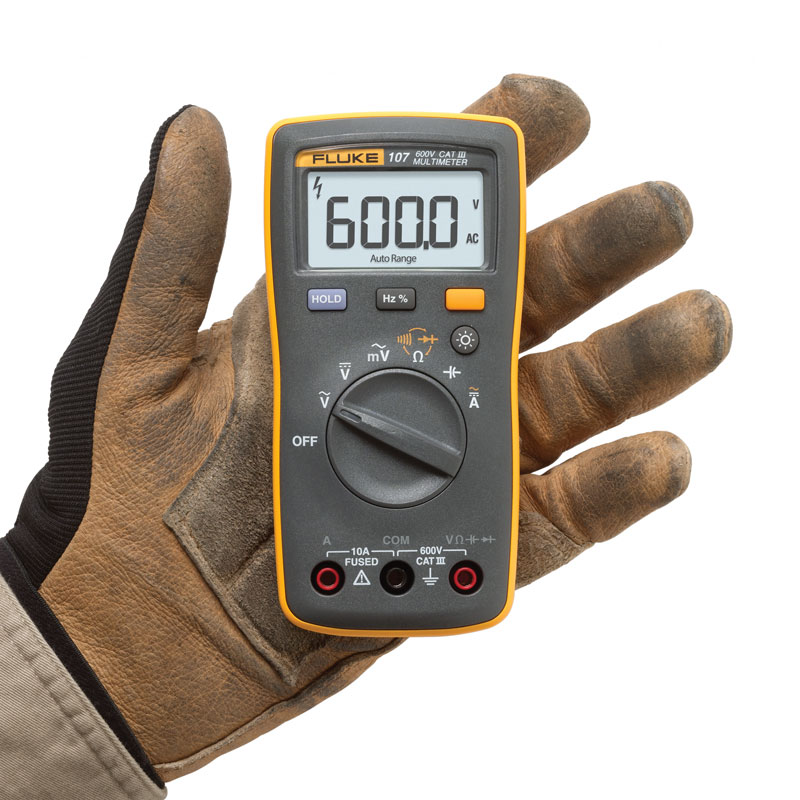

Fluke 107 Pocket Digital Multimeter

The Fluke 107 is engineered to be your go-to multimeter for everyday applications where true-RMS accuracy is not required. It’s small enough to fit in your shirt pocket yet tough enough to handle the rigors of daily use. Whether you’re an electrician, technician, or DIY enthusiast, the Fluke 107 provides the essential functions you need for accurate and reliable measurements.

SKU: TTESDM107 Category: Hand Tools

Description
Reviews (0)

Description

Technical Specifications
CategorySpecification
AC Volts (40 Hz – 500 Hz):
Ranges: 6.000 V / 60.00 V / 600.0 V
Resolution: 0.001 V / 0.01 V / 0.1 V
Accuracy: 1.0 % + 3
DC Volts:
Ranges: 6.000 V / 60.00 V / 600.0 V
Resolution: 0.001 V / 0.01 V / 0.1 V
Accuracy: 0.5 % + 3
AC Millivolts:
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: 3.0 % + 3
Diode Test:
Range: 2.000 V
Resolution: 0.001 V
Accuracy: 10 %
Resistance (Ohms):
Ranges: 400.0 Ω / 4.000 kΩ / 40.00 kΩ / 400.0 kΩ / 4.000 MΩ / 40.00 MΩ
Resolution: 0.1 Ω to 0.01 MΩ
Accuracy: 0.5 % + 3 (most ranges), 1.5 % + 3 (40 MΩ range)
Capacitance:
Ranges: 50.00 nF to 1000 μF
Resolution: 0.01 nF to 1 μF
Accuracy: 2 % + 5 (≤500 nF), 5 % + 5 (≥5 μF)
Frequency (10 Hz – 100 kHz):
Ranges: 50.00 Hz to 100.0 kHz
Resolution: 0.01 Hz to 0.1 kHz
Accuracy: 0.1 % + 3
Duty Cycle:
Range: 1 % to 99 %
Resolution: 0.1 %
Accuracy: 1 % typical
AC Current (40 Hz – 200 Hz):
Ranges: 4.000 A / 10.00 A
Resolution: 0.001 A / 0.01 A
Accuracy: 1.5 % + 3
DC Current:
Ranges: 4.000 A / 10.00 A
Resolution: 0.001 A / 0.01 A
Accuracy: 1.5 % + 3
Overload Protection:
AC/DC Volts: 600 V
AC mV: 600 mV
Input Impedance:
>10 MΩ (
Display:
6000 count LCD, 3 updates per second
Battery:
2 × AAA (NEDA 24A, IEC LR03)
Approx. 200 hours battery life
Operating Temperature:
0 °C to 40 °C
Storage Temperature:
-30 °C to 60 °C
Operating Altitude:
2000 m
Storage Altitude:
12,000 m
Fuse Protection:
11A, 1000V Fast Fuse (Fluke specified part only)
Dimensions (H × W × L):
142 mm × 69 mm × 28 mm
Weight:
200 g
IP Rating:
IEC 60529: IP40
Safety Rating:
IEC 61010-1: 600 V CAT III, Pollution Degree 2
Key Features
CAT III 600 V safety rating
Measures AC/DC voltage and current
Measures resistance, continuity and diode
Capacitance, frequency and duty cycle measurement
6000 count backlit LCD display
Data hold function
Palm-sized, compact and lightweight design
What’s Included
Fluke 107 Palm-sized CAT III Digital Multimeter
TL75 Hard Point™ Test Lead Set
SmartStrap™ intelligent magnetic multi-purpose lanyard
2 × AAA batteries (installed)
Compatible Accessories
SureGrip™ Alligator, Hook and Pincer Clips
Heavy Duty Bus Bar & Insulation Piercing Test Clips
Slim Reach and Industrial Test Probes
SureGrip™ Industrial & Electrical Test Lead Sets
Premium, Heavy Duty and Automotive Test Lead Sets
Large Soft Case (C25) and CAMO-C25 Carry Case
PV350 Pressure Vacuum Module
80T-150UA Universal Temperature Probe
80TK Thermocouple Module
Frequently Asked Questions
What can the Fluke 107 measure?
The Fluke 107 measures AC/DC voltage, AC/DC current, resistance, continuity, diode, capacitance, frequency and duty cycle, making it ideal for electrical maintenance and troubleshooting.
Is the Fluke 107 safe for industrial use?
Yes, it is rated CAT III 600 V and complies with IEC 61010-1 safety standards, suitable for distribution-level measurements.
Can it test continuity and check for broken wires?
Yes, the resistance and continuity functions allow you to quickly identify open circuits and broken wiring.
Does it have a backlight?
Yes, the 6000-count LCD display includes a backlight and data hold function for working in low-light areas.
How long do the batteries last?
The Fluke 107 operates on 2 AAA batteries and provides approximately 200 hours of battery life under normal use.
