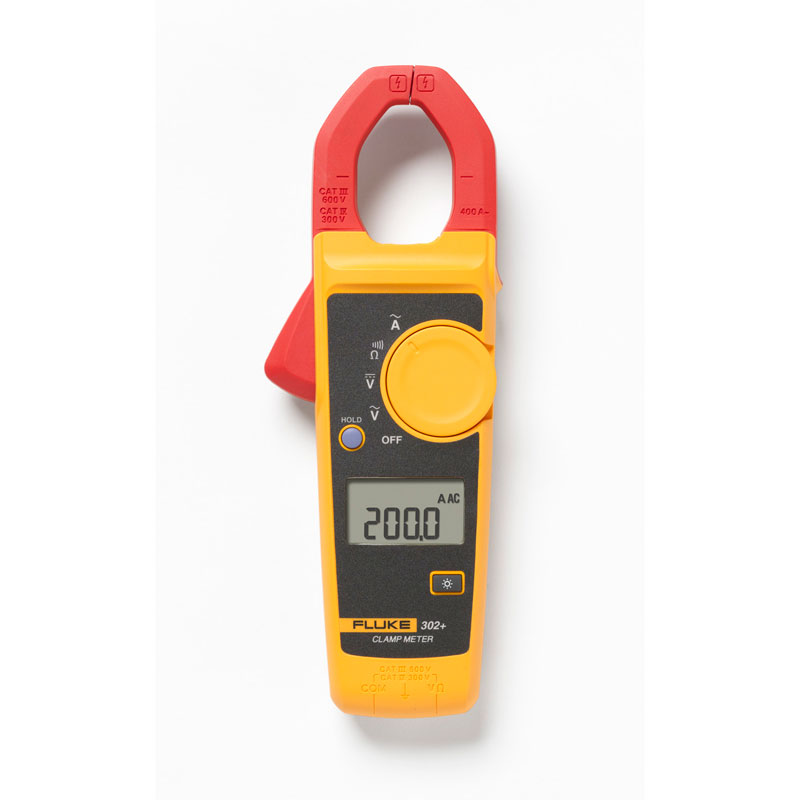

Fluke 302 Clamp Meter

Description

Technical Specifications

Brand: Fluke
Product Type: Clamp Meter
Clamp Meter Type: AC Current Clamp Meter
Model: 303 / 302+
Functions Measured: AC Voltage, DC Voltage, AC Current, Resistance
AC Current Range: 600 A (303) / 400 A (302+)
AC Current Accuracy: ±1.8 %
AC Voltage Accuracy: ±1.5 %
DC Voltage Accuracy: ±1.5 %
Maximum Jaw Opening: 30 mm
Maximum Conductor Size: 30 mm
Display Type: Backlit LCD
Power Source: Battery
Battery Type: AA
Minimum Operating Temperature: 0 °C
Maximum Operating Temperature: 40 °C
Safety Category: CAT IV 300 V / CAT III 600 V
Safety Category Voltage: 600 V
Dimensions (L x W x H): 208 mm x 58.5 mm x 28 mm
Warranty: 2 Years
Key Features
Compact and ergonomic design for easy one-hand operation
AC current measurement up to 600 A (303) or 400 A (302+)
30 mm jaw opening for common electrical conductors
High accuracy of ±1.8% for reliable measurements
Measures AC voltage, DC voltage, AC current and resistance
Backlit LCD display for improved visibility in low-light areas
CAT IV 300 V / CAT III 600 V safety rating
Battery powered for portable field use
Durable construction suitable for industrial and workshop environments
Two-year manufacturer warranty
How to Use a Multimeter
Learn the basics of measuring voltage, current and resistance safely and accurately. This guide covers correct probe placement, safety tips and common mistakes to avoid.
Click here to read: How to Use a Multimeter
Frequently Asked Questions
What is a clamp meter used for?
A clamp meter allows you to measure current by clamping around a live conductor without disconnecting it. It is ideal for electrical fault finding, maintenance work, and checking load currents safely.
What is the difference between the Fluke 303 and 302+?
The main difference is the AC current range. The Fluke 303 measures up to 600 A AC, while the Fluke 302+ measures up to 400 A AC. Both models share the same compact design and safety ratings.
What size cable can this clamp meter measure?
With a 30 mm jaw opening, it can clamp around conductors up to 30 mm in diameter, suitable for most standard electrical installations.
Is this clamp meter safe for industrial use?
Yes, it has a CAT IV 300 V / CAT III 600 V safety rating, making it suitable for industrial and commercial electrical environments when used correctly.
Does this clamp meter measure DC current?
No, this model measures AC current only. However, it can measure both AC and DC voltage as well as resistance.
