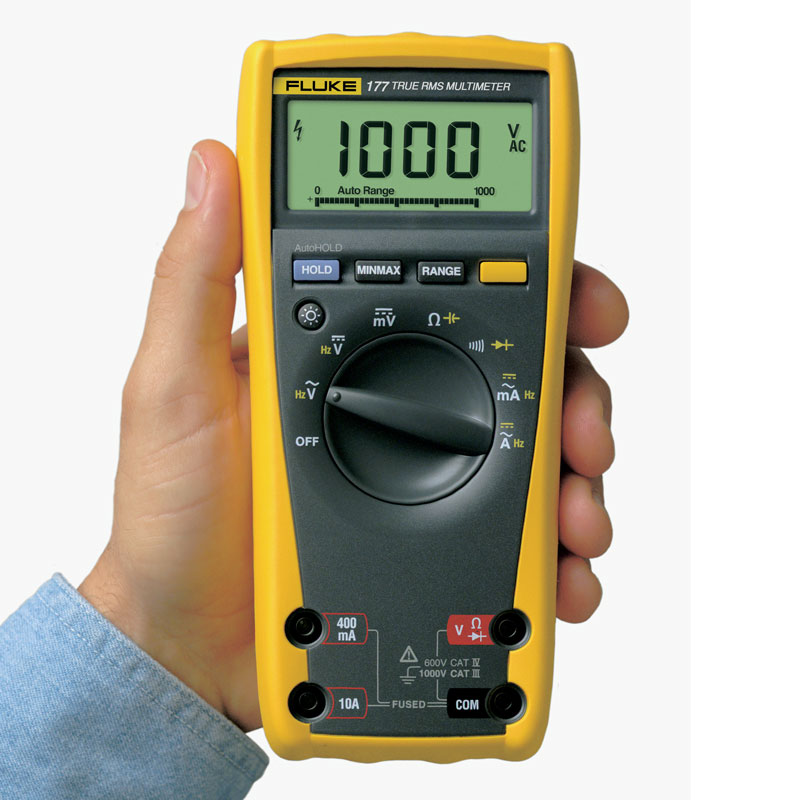

Fluke 177 True-RMS Digital Multimeter
True-RMS digital multimeter with the features professional technicians prefer Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording Measures AC and DC voltage to 1000 V Delivers accurate True-RMS AC and voltage plus frequency, capacitance, resistance, continuity and diode measurements Safety rated CAT III 1000 V, CAT IV 600 V
Description
Technical Specifications
Brand: Fluke
Series: 170 Series
Model Number: 177
Product Type: Handheld Digital Multimeter
Display: 6000 Count LCD with 33 Segment Bargraph & Backlight
True RMS: Yes
Maximum DC Voltage: 1000V
Maximum AC/DC Current: 10A
Frequency Measurement: Up to 100 kHz
Resistance Measurement: Up to 50 MΩ
Capacitance Measurement: Up to 10,000 μF
Safety Rating: CAT IV 600V / CAT III 1000V
Operating Temperature: -10 °C to +50 °C
Battery: 9V Alkaline (Installed)
Battery Life: Up to 200 Hours
Length: 185 mm
Width: 90 mm
Height: 43 mm
Weight: 420 g
Key Features
True RMS AC voltage and current measurements
Measures up to 1000V AC/DC and 10A AC/DC
Frequency measurement up to 100 kHz
6000-count LCD display with 33-segment analogue bargraph
Bright display backlight for low-light environments
Integrated fuse for short-circuit protection
Min/Max/Average recording
Display Hold and Auto Hold functions
Manual and auto ranging
Separate battery and fuse access without breaking calibration seal
Auto power-off to extend battery life
Compatible with Fluke Toolpak™ magnetic hanger kit
Applications
Robotics and automation systems
Food processing plants
Transportation industry
Industrial electrical maintenance
General electronic troubleshooting
Supplied With
Fluke 177 Digital Multimeter
(1 Pair) TL76 Test Leads
9V Battery (Installed)
Quick Reference Guide
Frequently Asked Questions
What is the power source of this multimeter?
The Fluke 177 is powered by a 9V alkaline battery (pre-installed) and offers up to 200 hours of operating life.
What safety rating does the Fluke 177 have?
This model complies with EN61010-1 safety standards and is rated CAT IV 600V and CAT III 1000V for use in high-energy electrical environments.
Can it measure frequency up to 100kHz?
Yes. The Fluke 177 provides frequency measurement capability up to 100 kHz, making it suitable for a wide range of diagnostic applications.
Is it suitable for industrial use?
Yes. Its rugged construction, integrated fuse protection, wide operating temperature range and professional safety ratings make it ideal for industrial environments.
Does the display have a backlight?
Yes. The bright backlit 6000-count LCD display ensures easy reading in low-light conditions.
