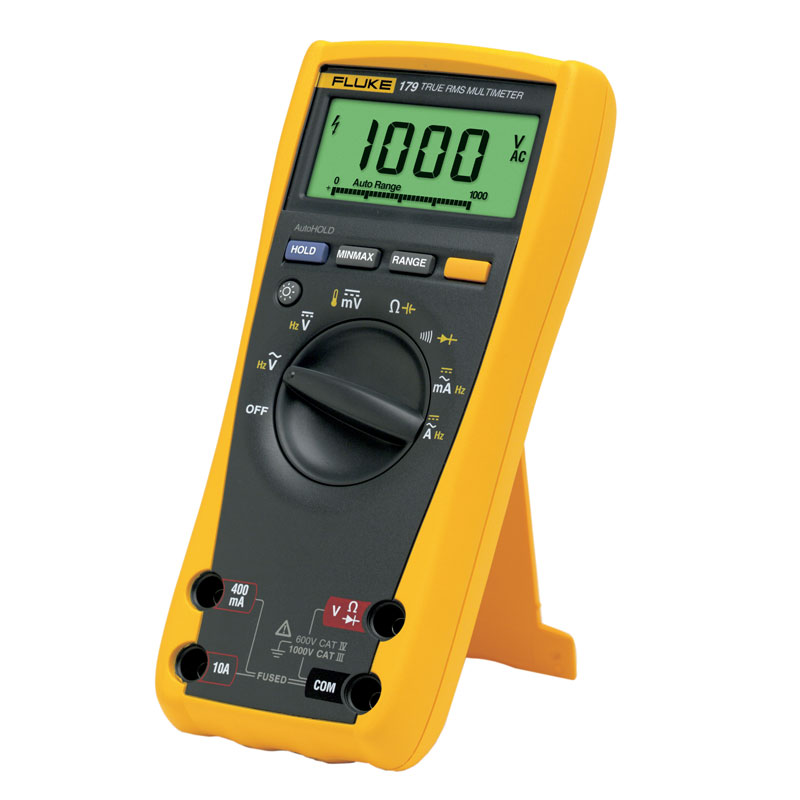

Fluke 179 True-RMS Digital Multimeter
A full-featured, precision multimeter for troubleshooting electrical and electronic systems Delivers accurate true-RMS AC and voltage plus frequency, capacitance, resistance, continuity and diode measurements Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording Includes a built-in thermometer to measure temperature without having to carry a separate instrument Award Winner
Description
Technical Specifications
Brand: Fluke
Series: 170 Series
Model Number: 179
Product Type: Handheld Digital Multimeter
Display: 6000 Count LCD with 33 Segment Bargraph & Backlight
True RMS: Yes
Maximum DC Voltage: 1000V
Safety Rating: CAT IV 600V / CAT III 1000V
DC Voltage Accuracy: ±0.1% rdg + 2 Digits
AC Voltage Accuracy: ±1% rdg + 3 Digits
DC Current Range: 60mA to 10A
AC Current Range: 60mA to 10A
DC Current Accuracy: ±1% + 3 Digits
AC Current Accuracy: ±1.5% + 3 Digits
Resistance Measurement: Up to 50 MΩ
Capacitance Measurement: Up to 10,000 μF
Frequency Measurement: Up to 100 kHz (AC current 1 kHz)
Temperature Measurement: Up to +400 °C (with 80BK Probe)
Operating Temperature: -10 °C to +50 °C
Battery: 9V Alkaline
Battery Life: Up to 200 Hours
Length: 185 mm
Width: 90 mm
Height: 43 mm
Weight: 420 g
Key Features
True RMS AC voltage and current measurements
6000 count digital display with analogue bar graph and backlight
Measures voltage up to 1000V DC/AC
Capacitance measurement up to 10,000 μF
Frequency measurement up to 100 kHz
Temperature measurement up to +400 °C (with included 80BK probe)
Min/Max/Average recording
Manual and auto ranging
Auto power-off to conserve battery life
Low battery indicator
Separate battery and fuse access without breaking calibration seal
Compatible with Fluke Toolpak™ magnetic hanger kit
Applications
Electrical workshops and maintenance departments
Oil and gas plants
Manufacturing facilities
Industrial electrical troubleshooting
HVAC system diagnostics
Supplied With
TL76 Test Leads
80BK Type K Thermocouple Probe with Adaptor
9V Alkaline Battery
Instruction Manual
Integrated Protective Holster
Frequently Asked Questions
How do I know when the battery is running low?
The Fluke 179 features a clear low battery indicator on the display, alerting you when the 9V battery needs replacing.
What is the operating temperature range?
The multimeter operates reliably between -10 °C and +50 °C, making it suitable for demanding environments.
Is this multimeter suitable for industrial environments?
Yes. With CAT IV 600V and CAT III 1000V safety ratings and EN61010-1 compliance, it is designed for professional and industrial use.
Can it measure temperature?
Yes. The included 80BK Type K thermocouple probe allows temperature measurement up to +400 °C.
Does it switch off automatically?
Yes. The auto power-off function conserves battery life when the device is not in use.
