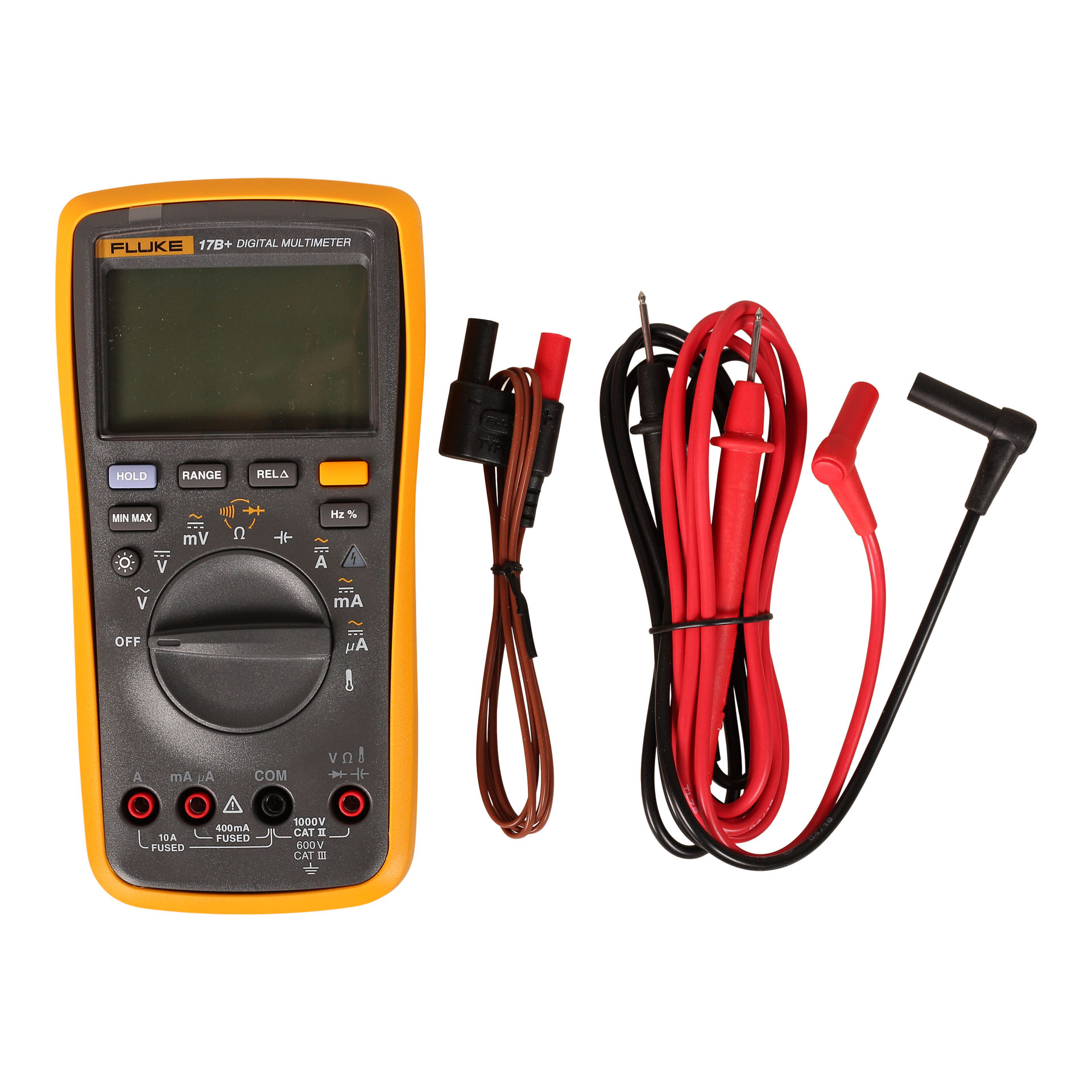

FLUKE 17B+ Compact Digital Multimeter
Your job requires that you have a rugged, reliable and accurate digital multimeter. The Fluke 17B+ digital multimeter does all that and more. Common basic electrical measurements plus temperature, frequency and duty cycle. Easy to use with one hand, even with gloves on, the Fluke 17B+ offers everything you need.
Description
Technical Specifications
FunctionRangeResolutionAccuracy
AC Volts (40 Hz to 500 Hz): 4.000 V
40.00 V
400.0 V
1000 V: 0.001 V
0.01 V
0.1 V
1 V: 1.0% + 3
DC Volts: 4.000 V
40.00 V
400.0 V
1000 V: 0.001 V
0.01 V
0.1 V
1 V: 0.5% + 3
AC Millivolts: 400.0 mV: 0.1 mV: 3.0% + 3
DC Millivolts: 400.0 mV: 0.1 mV: 1.0% + 10
Diode Test: 2.000 V: 0.001 V: 10%
Resistance (Ohms):
400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ
:
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
:
0.5% + 3
0.5% + 2
0.5% + 2
0.5% + 2
0.5% + 2
1.5% + 3
Capacitance:
40.00 nF
400.0 nF
4.000 μF
40.00 μF
400.0 μF
1000 μF
:
0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF
:
2% + 5
2% + 5
5% + 5
5% + 5
5% + 5
5% + 5
Frequency (10 Hz – 100 kHz):
50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz
:
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz
: 0.1% + 3
Duty Cycle: 1% to 99%: 0.1%: 1% typical
AC Current (μA): 400.0 μA
4000 μA: 0.1 μA
1 μA: 1.5% + 3
AC Current (mA): 40.00 mA
400.0 mA: 0.01 mA
0.1 mA: 1.5% + 3
AC Current (A): 4.000 A
10.00 A: 0.001 A
0.01 A: 1.5% + 3
DC Current (μA): 400.0 μA
4000 μA: 0.1 μA
1 μA: 1.5% + 3
DC Current (mA): 40.00 mA
400.0 mA: 0.01 mA
0.1 mA: 1.5% + 3
DC Current (A): 4.000 A
10.00 A: 0.001 A
0.01 A: 1.5% + 3
Temperature:
-55 °C to 0 °C
0 °C to 50 °C
50 °C to 400 °C
: 0.1 °C:
9% ±2 °C
±2 °C
2% ±1 °C
Backlight: –: –: Yes
Input & Protection Specifications
FunctionOverload ProtectionInput Impedance (Nominal)CMRRNMRR
AC Volts: 1000 V: >10 MΩ 60 dB at dc, 50/60 Hz: –
AC Millivolts: 400 mV: >1 MΩ 80 dB at 50/60 Hz: –
DC Volts: 1000 V: >10 MΩ 100 dB at dc, 50/60 Hz: >60 dB at 50/60 Hz
DC Millivolts: 400 mV: >1 MΩ 80 dB at 50/60 Hz: –
General Specifications
Maximum Voltage (Terminal to Earth): 1000 V
Display: 4000 counts, updates 3/sec
Battery Type: 2 x AA (NEDA 15A, IEC LR6)
Battery Life: 500 hours minimum (50 hours in LED Test mode without load)
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -30 °C to 60 °C
Operating Altitude: 2000 m
Storage Altitude: 12,000 m
Temperature Coefficient: 0.1 × (Specified Accuracy) / °C (28 °C)
Fuse Protection: 440 mA, 1000 V Fast Fuse & 11 A, 1000 V Fast Fuse (Fluke specified)
Dimensions (H x W x L): 183 x 91 x 49.5 mm
Weight: 455 g
IP Rating: IP40
Safety Rating: IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
Electromagnetic Environment: IEC 61326-1: Portable
Electromagnetic Compatibility: Applies to use in Korea only
