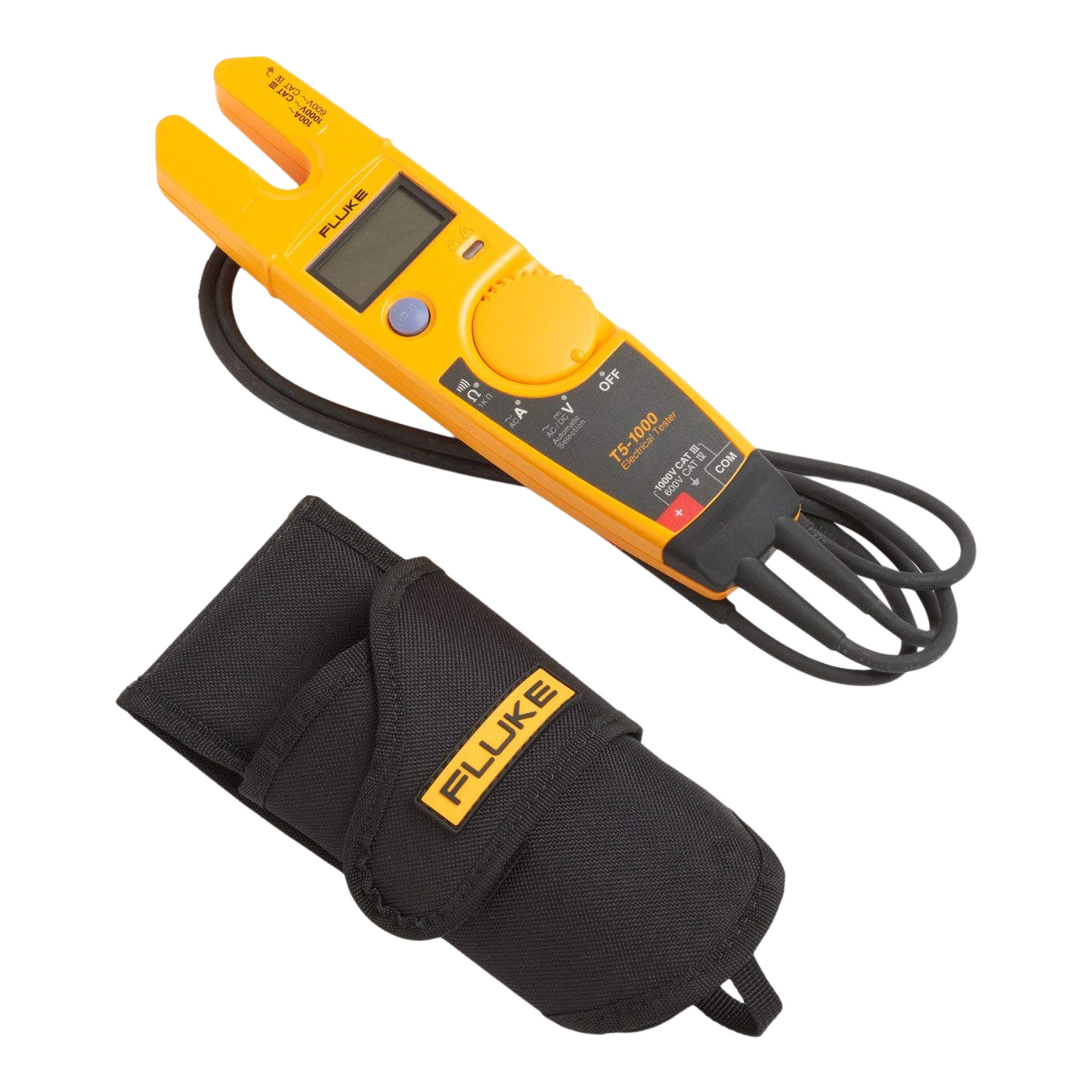

Fluke T5-1000 Electrical Tester Kit with Holster and 1AC II Voltage Tester
This kit includes precise digital resolution for automatic measurement of volts AC and volts DC, along with OpenJaw™ current measurement and resistance display up to 1000 Ω. It also features a continuity beeper for quick go/no-go tests, all while being protected to EN61010-1 CAT III 1000 V CAT IV 600 V standards. The 1AC II Voltage Tester offers Voltbeat™ technology and continuous self-test for dependable operation, with a VoltAlert™ tip that glows and emits a beeper sound upon voltage detection, ensuring added safety with its CAT IV 1000 V rating.
Description
Technical Specifications
Brand: Fluke
Model Number: T5
Product Type: Electrical Tester
Test Type: AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Continuity
Maximum Voltage Measurement: 1000V AC
Voltage Measurement Range: 0 to 1000V
Automatic RCD Test: Yes
RCD Ramp Test: No
Minimum Continuity Resistance: 0 Ω
Maximum Continuity Resistance: 1000 Ω
Continuity Range: 25 Ω to 400 Ω
Safety Category Level: CAT III, CAT IV
Safety Category Voltage: CAT IV 600V / CAT III 1000V
Operating Temperature Range: -10°C to +50°C
Power Source: Battery
Battery Type: AA x 2
Dimensions (L x W x H): 30.5 x 51 x 203 mm
Jaw Opening: 12.9 mm
Weight: 300 g
Approvals: UL, CSA, VDE
Standards: EN61010-1 CAT III 600V
Key Features
Three testers in one compact tool
Automatically measures AC and DC voltage up to 1000V
Displays resistance up to 1000 Ω
Open Jaw current measurement for fast testing
Built-in continuity beeper with loud audible alert
Compact design with integrated probe storage
Detachable SlimReach probe tips for compliance with national standards
Rugged design withstands 3 m (10 ft) drop
Auto-off function to conserve battery life
Test leads compatible with Fluke accessory clips
Applications
Electrical installation and maintenance
Industrial troubleshooting
Commercial building inspections
Control panel diagnostics
Fuse and circuit continuity testing
Optional Accessories
H5 Holster with belt loop for T5-600 / T5-1000
AC285 Alligator Clips for T5 testers
T5 Holster and crocodile clip kits
T5 Replacement lead set
Supplied With
Fluke T5 Electrical Tester
Detachable 4 mm TP4 measuring tips
Instruction manual
Frequently Asked Questions
Does this tester come with a calibration certificate?
Calibration is available as an additional service. If a product includes calibration, this will be specified in the product details. For more information, please contact our Customer Service Centre.
Can I use this tester to check if a fuse is good or bad?
Yes. The Fluke T5 can test voltage, continuity and current. It features a loud audible beep when testing continuity, making it easy to determine whether a fuse is functioning correctly.
Is this suitable for industrial use?
Yes. With CAT IV 600V and CAT III 1000V safety ratings and a rugged 3m drop-tested design, it is suitable for demanding industrial and commercial environments.
What batteries does it use?
The Fluke T5 is powered by two AA batteries.
What temperature range can it operate in?
The tester operates reliably between -10°C and +50°C.
