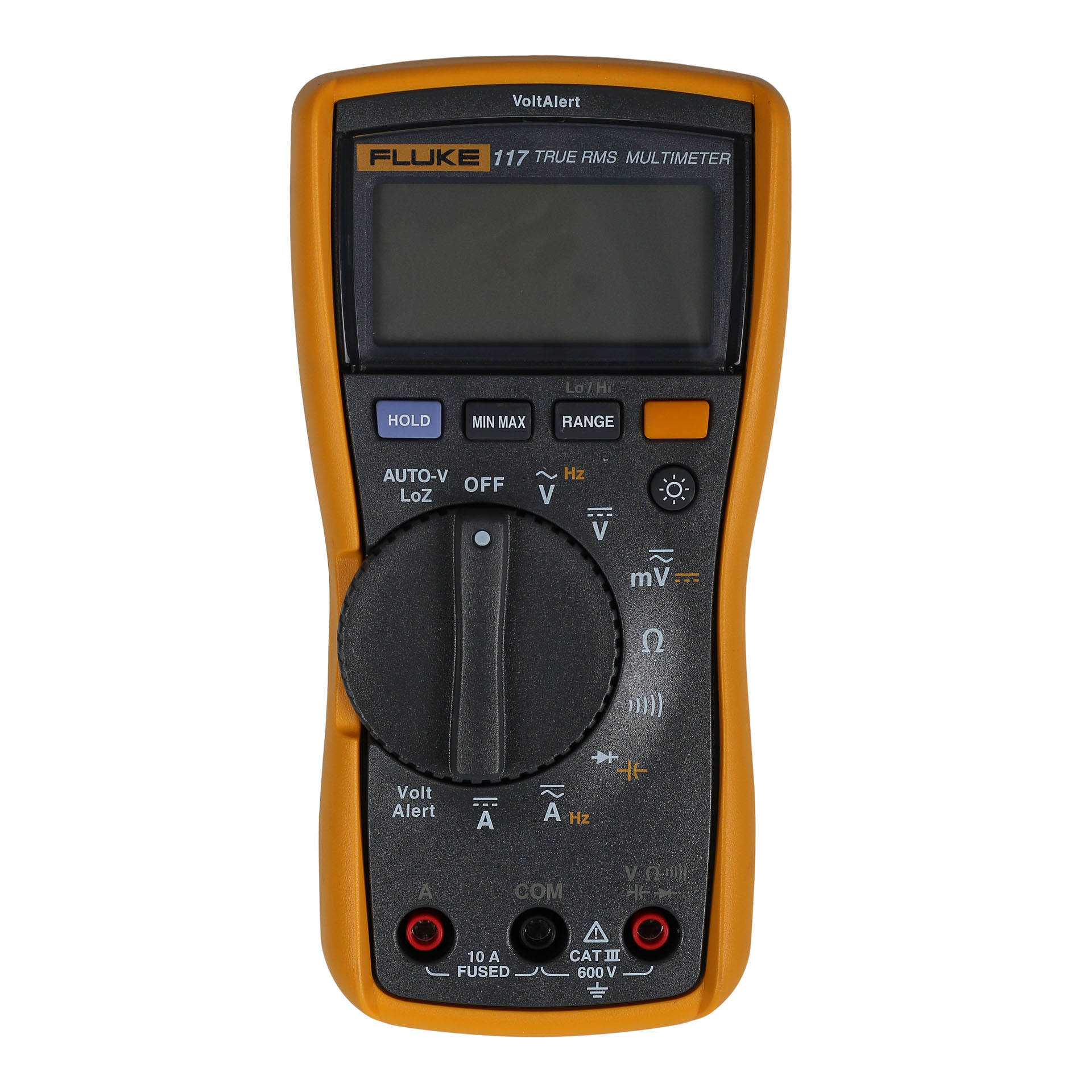

FLUKE True RMS Multimeter
A commonly used tool, FLUKE’s digital multimeters are being used regularly to locate issues. As a test tool, each meter has been tested against shock, drops and humidity to ensure quality. Get accurate measurements and reliable performance with this true RMS multimeter.
Description
Technical Specifications
Maximum Voltage (Terminal to Earth): 600 V
Safety Rating: IEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600 V
Fuse for A Input: 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display: Digital: 6,000 counts, 4 updates/sec
Bar Graph: 33 segments, 32 updates/sec
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -40 °C to +60 °C
Battery Type: 9 V Alkaline (IEC 6LR61)
Battery Life: 400 hours typical (without backlight)
Size: 167 x 84 x 46 mm
Weight: 550 g
Warranty: 3 Years
Measurement Specifications
FunctionRange / ResolutionAccuracy
DC Millivolts: 600.0 mV / 0.1 mV: 0.5% + 2
DC Volts: 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V: 0.5% + 2
Auto Volts: 600.0 V / 0.1 V: 2.0% + 3 (45 Hz – 500 Hz)
4.0% + 3 (500 Hz – 1 kHz)
AC Millivolts (True RMS): 600.0 mV / 0.1 mV: 1.0% + 3 (45 Hz – 500 Hz)
2.0% + 3 (500 Hz – 1 kHz)
AC Volts (True RMS): 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V: 1.0% + 3 (45 Hz – 500 Hz)
2.0% + 3 (500 Hz – 1 kHz)
Continuity: 600 Ω / 1 Ω: Beeper on 250 Ω
Resistance:
600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
: 0.9% + 1
Resistance (High Range): 40.00 MΩ / 0.01 MΩ: 5% + 2
Diode Test: 2.00 V / 0.001 V: 0.9% + 2
Capacitance:
1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
: 1.9% + 2
Capacitance (>1000 μF): >1000 μF: 5% + 20%
Lo-Z Capacitance: 1 nF to 500 μF: 10% + 2 (typical)
AC Amps (True RMS): 6.000 A / 0.001 A
10.00 A / 0.01 A: 1.5% + 3
DC Amps: 6.000 A / 0.001 A
10.00 A / 0.01 A: 1.0% + 3
Frequency (V or A Input):
99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 Hz
50.00 kHz / 0.01 Hz
: 0.1% + 2
Key Features
Compact, True-RMS digital multimeter for electricians
Integrated non-contact voltage detection (VoltAlert™)
Selectable low-impedance (LoZ) mode to prevent false readings from ghost voltage
600 V CAT III safety rating
6,000 count display with analog bar graph
AC/DC voltage and current measurement up to 10 A
Resistance, continuity, capacitance and frequency measurement
What’s Included
Fluke 117 Electrician’s Digital Multimeter
4 mm Silicone Test Lead Set
Protective Holster
User Manual
