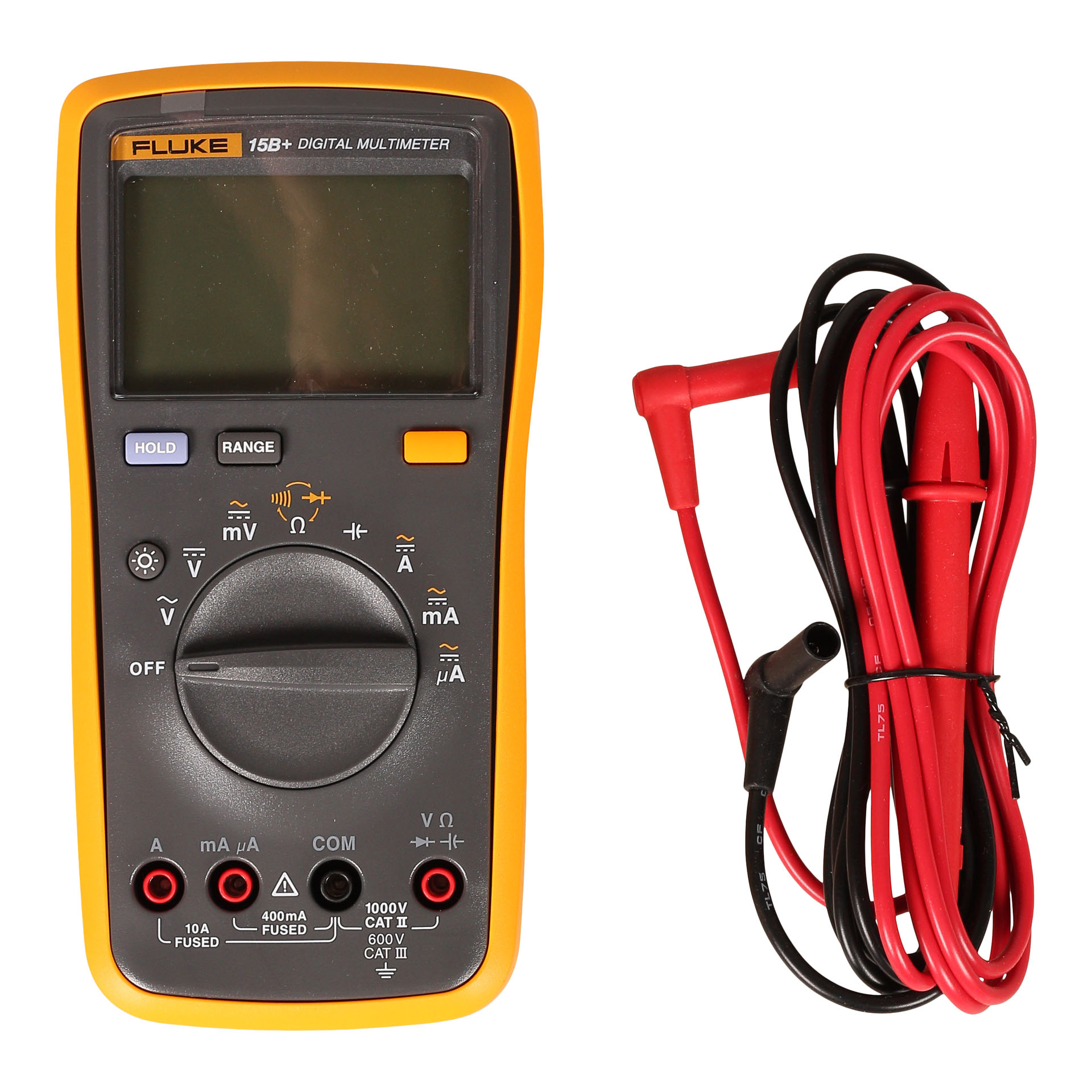

FLUKE 15B+ Compact Digital Multimeter

Description

Technical Specifications
FunctionRangeResolutionAccuracy
AC Volts (40 Hz to 500 Hz):
4.000 V
40.00 V
400.0 V
1000 V
:
0.001 V
0.01 V
0.1 V
1 V
: 1.0% + 3
DC Volts:
4.000 V
40.00 V
400.0 V
1000 V
:
0.001 V
0.01 V
0.1 V
1 V
: 0.5% + 3
AC Millivolts: 400.0 mV: 0.1 mV: 3.0% + 3
DC Millivolts: 400.0 mV: 0.1 mV: 1.0% + 10
Diode Test: 2.000 V: 0.001 V: 10%
Resistance (Ohms):
400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ
:
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
:
0.5% + 3
0.5% + 2
0.5% + 2
0.5% + 2
0.5% + 2
1.5% + 3
Capacitance:
40.00 nF
400.0 nF
4.000 μF
40.00 μF
400.0 μF
1000 μF
:
0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF
:
2% + 5
2% + 5
5% + 5
5% + 5
5% + 5
5% + 5
AC Current (μA): 400.0 μA
4000 μA: 0.1 μA
1 μA: 1.5% + 3
AC Current (mA): 40.00 mA
400.0 mA: 0.01 mA
0.1 mA: 1.5% + 3
AC Current (A): 4.000 A
10.00 A: 0.001 A
0.01 A: 1.5% + 3
DC Current (μA): 400.0 μA
4000 μA: 0.1 μA
1 μA: 1.5% + 3
DC Current (mA): 40.00 mA
400.0 mA: 0.01 mA
0.1 mA: 1.5% + 3
DC Current (A): 4.000 A
10.00 A: 0.001 A
0.01 A: 1.5% + 3
Backlight: Yes
Input & Protection Specifications
FunctionOverload ProtectionInput Impedance (Nominal)CMRRNMRR
AC Volts: 1000 V: >10 MΩ 60 dB at dc, 50/60 Hz: –
AC Millivolts: 400 mV: >1 MΩ 80 dB at 50/60 Hz: –
DC Volts: 1000 V: >10 MΩ 100 dB at dc, 50/60 Hz: >60 dB at 50/60 Hz
DC Millivolts: 400 mV: >1 MΩ 80 dB at 50/60 Hz: –
General Specifications

Maximum Voltage (Terminal to Earth): 1000 V
Display: 4000 counts, updates 3/sec
Battery Type: 2 x AA (NEDA 15A, IEC LR6)
Battery Life: Minimum 500 hours
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -30 °C to 60 °C
Operating Altitude: 2000 m
Storage Altitude: 12,000 m
Temperature Coefficient: 0.1 × (Specified Accuracy) / °C (28 °C)
Fuse Protection: 440 mA, 1000 V Fast Fuse & 11 A, 1000 V Fast Fuse (Fluke specified)
Dimensions (H x W x L): 183 x 91 x 49.5 mm
Weight: 455 g
IP Rating: IP40
Safety Rating: IEC 61010-1, IEC61010-2-030 CAT III 600 V, Pollution Degree 2
EMC: IEC 61326-1: Portable EMC Environment, Class A Equipment
Key Features
600 V CAT III safety rating
50% bigger display with bright white backlight
Measures AC/DC voltage, resistance, continuity and capacitance
AC and DC current measurements up to 10 A
Diode test function
Data hold function
What’s Included
Fluke 15B+ Digital Multimeter
Fluke TL75 Test Leads with two caps
2 x AA Batteries
User’s Manual
