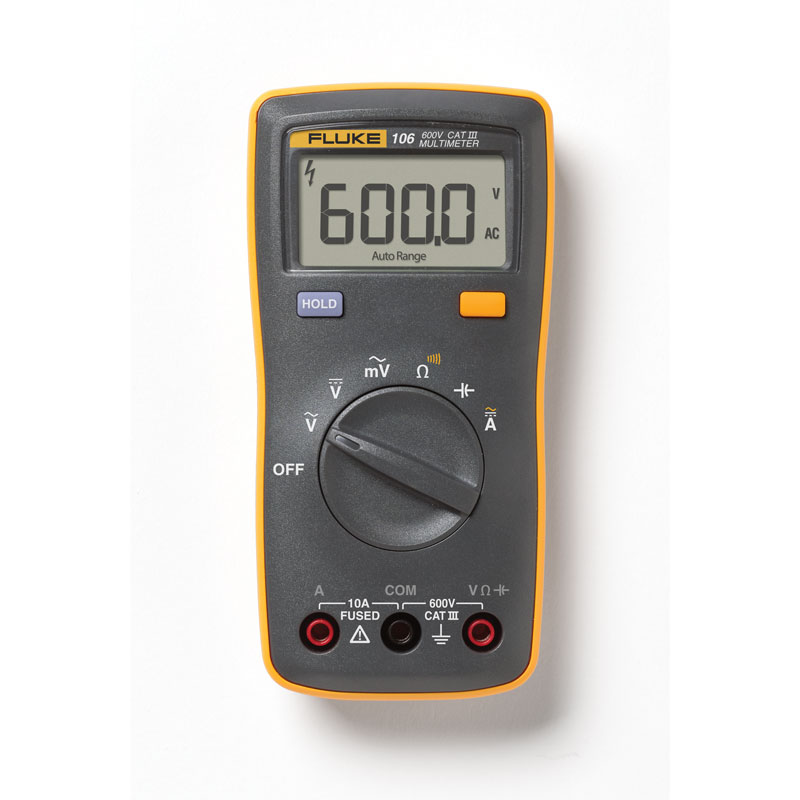

Fluke 106 Palm-sized Digital Multimeter

Description

Technical Specifications

Brand: Fluke
Product Type: Multimeter
Multimeter Type: Handheld
Model: 106
Display Type: Digital (6000 counts, 3 updates/sec)
Maximum DC Voltage: 600 V
DC Voltage Accuracy: ±0.5 % rdg + 3 Digits
AC Voltage Accuracy: ±1.0 % + 3
AC Current Accuracy: ±1.5 % rdg + 3 Digits
DC Current Accuracy: ±1.5 % rdg + 3 Digits
Resistance Measurement Accuracy: ±0.5 % + 3 Digits
Resistance Resolution: 0.1 Ω
DC Voltage Resolution: 0.001 V
AC Voltage Resolution: 0.001 V
Maximum Frequency: 100 kHz
Functions Measured: AC Voltage, DC Voltage, AC Current, DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test
Input Impedance: >10 MΩ (V), ~1 MΩ (mV)
Overload Protection: 600 V (AC/DC V), 600 mV (AC mV)
Safety Category: CAT III 600 V
IP Rating: IP40 (IEC 60529)
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -30 °C to 60 °C
Battery Type: 2 x AAA (NEDA 24A, IEC LR03)
Battery Life: 200 Hours Minimum
Dimensions (L x W x H): 142 mm x 69 mm x 28 mm
Weight: 200 g
Standards: IEC 61010-1, IEC 61326-1
Measurement Ranges
Function
Range
Resolution
Accuracy
AC Volts (40 Hz – 500 Hz): 6.000 V / 60.00 V / 600.0 V: 0.001 V / 0.01 V / 0.1 V: 1.0 % + 3
DC Volts: 6.000 V / 60.00 V / 600.0 V: 0.001 V / 0.01 V / 0.1 V: 0.5 % + 3
AC Millivolts: 600.0 mV: 0.1 mV: 3.0 % + 3
Resistance: 400.0 Ω to 40.00 MΩ (6 ranges): 0.1 Ω to 0.01 MΩ: 0.5 % + 2 to 1.5 % + 3
Capacitance: 50.00 nF to 1000 μF (6 ranges): 0.01 nF to 1 μF: 2 % + 5 to 5 % + 5
Frequency: 50.00 Hz to 100.0 kHz: 0.01 Hz to 0.1 kHz: –
Duty Cycle: 1 % to 99 %: 0.1 %: –
AC Current (40 Hz – 200 Hz): 4.000 A / 10.00 A: 0.001 A / 0.01 A: 1.5 % + 3
DC Current: 4.000 A / 10.00 A: 0.001 A / 0.01 A: 1.5 % + 3
Diode Test: 2.000 V: 0.001 V: 10 %
Key Features
Compact and lightweight handheld digital multimeter
6000-count display with 3 updates per second
Measures AC/DC voltage up to 600 V
Measures AC/DC current up to 10 A
Resistance measurement up to 40 MΩ
Capacitance measurement up to 1000 μF
Frequency measurement up to 100 kHz
CAT III 600 V safety rating
IP40 protection rating
Powered by 2 x AAA batteries with up to 200-hour battery life
How to Use a Multimeter
Learn how to safely and accurately measure voltage, current, and resistance with a multimeter. This guide covers basic functions, correct probe placement, and essential safety tips.
Click here to read: How to Use a Multimeter
Frequently Asked Questions
What can this multimeter measure?
The Fluke 106 measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and includes a diode test function, making it suitable for electrical troubleshooting and general maintenance work.
Is this multimeter suitable for home and workshop use?
Yes, with a CAT III 600 V safety rating, it is suitable for household electrical circuits, light industrial work, and workshop diagnostics.
What batteries does the Fluke 106 use?
It uses 2 x AAA batteries (NEDA 24A, IEC LR03) and offers up to 200 hours of battery life under normal operating conditions.
Can this multimeter measure frequency?
Yes, it can measure frequency from 50 Hz up to 100 kHz, making it useful for checking signal outputs and electronic circuits.
Is this a True RMS multimeter?
No, the Fluke 106 is not a True RMS multimeter. It is best suited for standard electrical measurements where True RMS capability is not required.
