SATURN 4 EMP 21 PUMP KIT – 0.56kW 230V (32mm 1¼” OUTLET)
Submersible multi-stage centrifugal pump, radial series EM with built-in check valve for 4″ (100mm) boreholes. A4050M – 4 230V series high-performance water-filled submersible motors made of AISI 304 stainless steel (parts in contact with water)
Description
Technical Specifications
Model: EMP21
Max Working Head: 88 m
Max Flow: 2.2 m³/h (36 ℓ/min)
Max Depth: 100 m
Min Water Temperature: 0ºC
Max Water Temperature: 35ºC
Max Starts Per Hour: 20
Outlet Size: 1¼”
Water Quality: Clean Water
Motor: 4OC (Oil Immersed)
Motor Size: 0.55 kW (550 W)
Horse Power: 0.75 Hp
Amperage: 4.6 A
Motor Voltage: Single Phase (220 V)
Motor Speed: Two-pole (2850 RPM)
Insulation Class: F
IP Rating (Motor): 68
Capacitor: 25 µF
Control Panel Voltage: 220 V
Control Panel KW: 0.55 kW
Control Panel HP: 0.75 Hp
Frequency: 50 Hz
IP Rating (Control Panel): 54
Control Panel Capacitor: 25 µF
Key Features
Compact borehole pump solution with high head and low flow output
Ideal for clean water pumping in deep borehole applications
Energy-efficient 0.55 kW motor for lower power consumption
Supplied with control box and splice kit for easy installation
Flow sleeve recommended for open wells

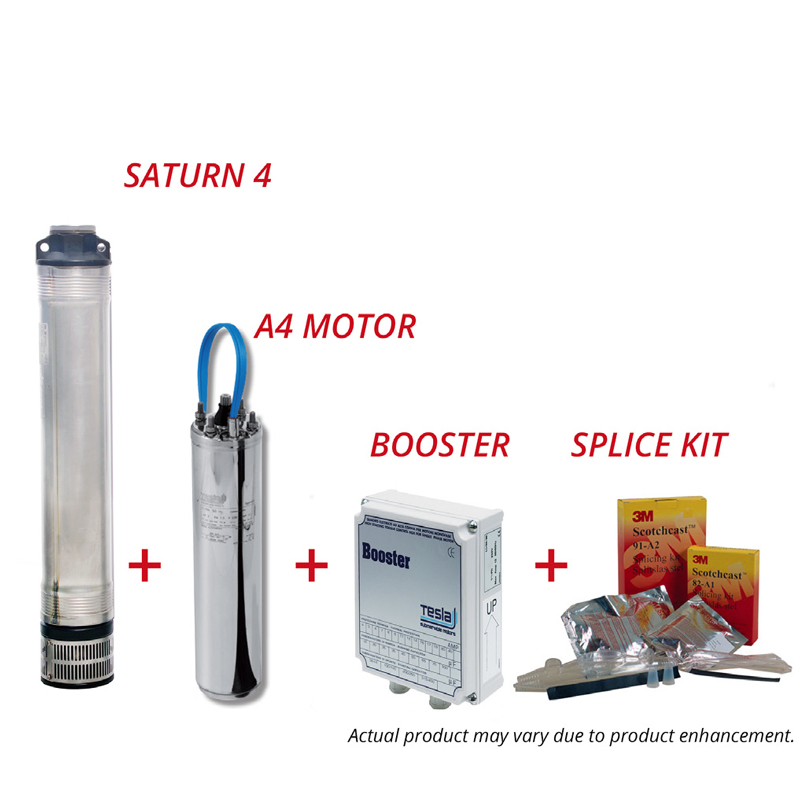

What’s in the Box
1x 4″ Multistage Borehole Pump
1x Single Phase Asynchronous Motor (Continuous Operation)
1x Splice Kit (to join the lead out cable to the submersible cable)
1x 220V Control Box (Including Run & Start Capacitor & Manual Overload Protector)
