SATURN 4 EA 17 Borehole Pump Kit

Description

Technical Specifications

Model: EAP17
Max Working Head: 91 m
Max Flow: 3.5 m³/h (58 ℓ/min)
Max Depth: 100 m
Min Water Temperature: 0ºC
Max Water Temperature: 35ºC
Max Starts Per Hour: 20
Outlet Size: 1¼”
Water Quality: Clean Water
Motor: 4OC (Oil Immersed)
Motor Size: 0.75 kW (750 W)
Horse Power: 1.00 Hp
Amperage: 5.9 A
Motor Voltage: Single Phase (220 V)
Motor Speed: Two-pole (2850 RPM)
Insulation Class: F
IP Rating (Motor): 68
Capacitor: 40 µF
Control Panel Voltage: 220 V
Control Panel KW: 0.75 kW
Control Panel HP: 1.00 Hp
Frequency: 50 Hz
IP Rating (Control Panel): 54
Control Panel Capacitor: 40 µF
Key Features
Compact and efficient submersible pump for clean water applications
Designed for deep borehole use with consistent head performance
Oil-immersed motor ensures smooth operation and long-term reliability
Comes complete with control panel and necessary connection kit
Recommended flow sleeve installation for open well use

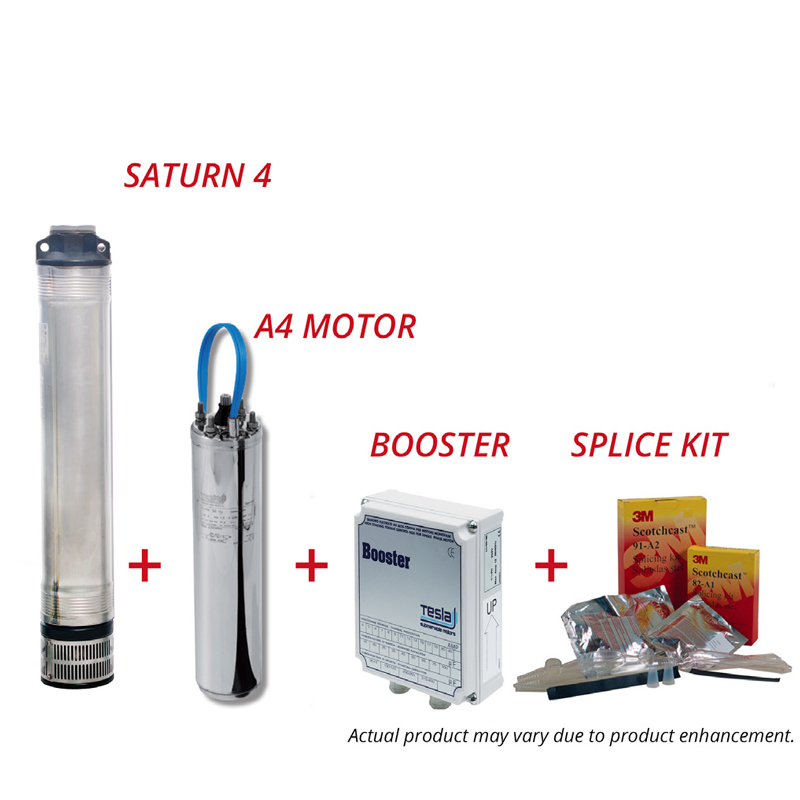

What’s in the Box
1x 4″ Multistage Borehole Pump
1x Single Phase Asynchronous Motor (Continuous Operation)
1x Splice Kit (to join the lead out cable to the submersible cable)
1x 220V Control Box (Including Run & Start Capacitor & Manual Overload Protector)
