SATURN 4 EB 15 Borehole Pump Kit

Description

Technical Specifications

Model: EBP15
Max Working Head: 93 m
Max Flow: 5.8 m³/h (96 ℓ/min)
Max Depth: 100 m
Min Water Temperature: 0ºC
Max Water Temperature: 35ºC
Max Starts Per Hour: 20
Outlet Size: 1¼”
Water Quality: Clean Water
Motor: 4OC (Oil Immersed)
Motor Size: 1.12 kW (1120 W)
Horse Power: 1.50 Hp
Amperage: 8.3 A
Voltage: Single Phase (220 V)
Motor Speed: Two-pole (2850 RPM)
Insulation Class: F
IP Rating (Motor): 68
Capacitor: 60 µF
Control Panel Voltage: 220 V
Control Panel KW: 1.12 kW
Control Panel HP: 1.50 Hp
Frequency: 50 Hz
IP Rating (Control Panel): 54
Control Panel Capacitor: 60 µF
Key Features
High head design ideal for deep borehole water extraction
Designed for clean water applications only
Includes splice kit for cable connection
Supplied with 220V control box with integrated capacitors and overload protector
Low maintenance oil-immersed motor for extended lifespan
Compact and reliable for continuous operation
Recommended flow sleeve for open well installations

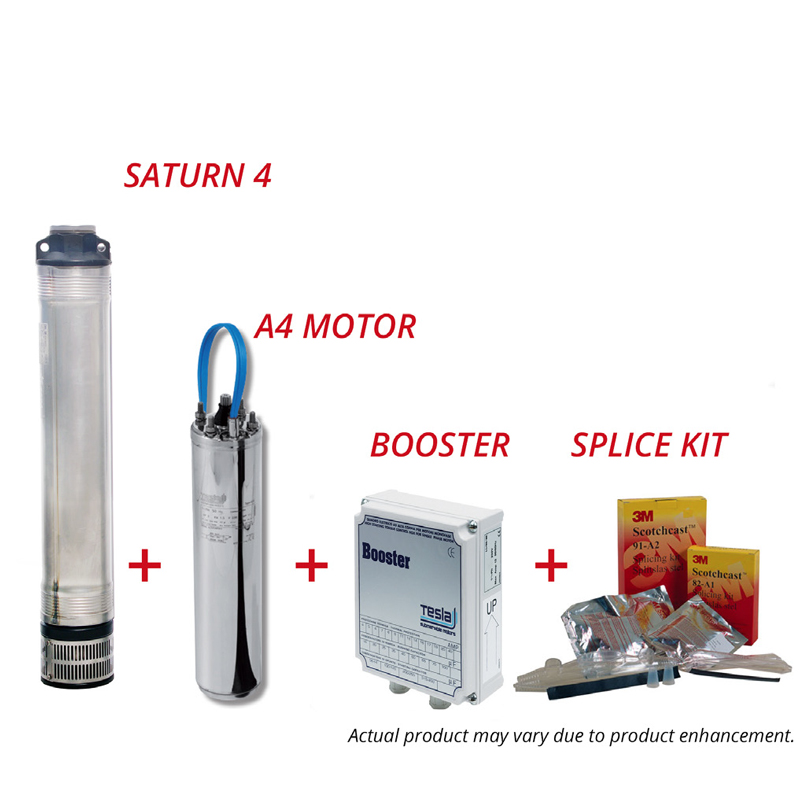

What’s in the Box
1x 4″ Multistage Borehole Pump
1x Single Phase Asynchronous Motor
1x Splice Kit
1x 220V Control Box with Run & Start Capacitor + Overload Protection
