SATURN 4 EMP 14 Borehole Pump Kit
The kit comprises of a multistage centrifugal pump with a built-in check valve for 4″ (100mm) wells with an asynchronous, two-pole motor (Class F insulation/Continuous operation) & a ‘splice’ kit to join the lead out cable to the submersible cable you plan to use.
Description
Technical Specifications
Model: EMP14
Max Working Head: 62 m
Max Flow: 2.2 m³/h (36 ℓ/min)
Max Depth: 100 m
Min Water Temperature: 0ºC
Max Water Temperature: 35ºC
Max Starts Per Hour: 20
Outlet Size: 1¼”
Water Quality: Clean Water
Motor: 4OC (Oil Immersed)
Motor Size: 0.37 kW (370 W)
Horse Power: 0.5 Hp
Amperage: 3.3 A
Motor Voltage: Single Phase (220 V)
Motor Speed: Two-pole (2850 RPM)
Insulation Class: F
IP Rating (Motor): 68
Capacitor: 22 µF
Control Panel Voltage: 220 V
Control Panel KW: 0.37 kW
Control Panel HP: 0.5 Hp
Frequency: 50 Hz
IP Rating (Control Panel): 54
Control Panel Capacitor: 22 µF
Key Features
Entry-level deep borehole pump ideal for light domestic applications
Compact and efficient for clean water supply up to 62 m head
Low power consumption with 0.37 kW oil-immersed motor
Includes capacitor-run control box and splice kit for convenience
Flow sleeve recommended for open well use

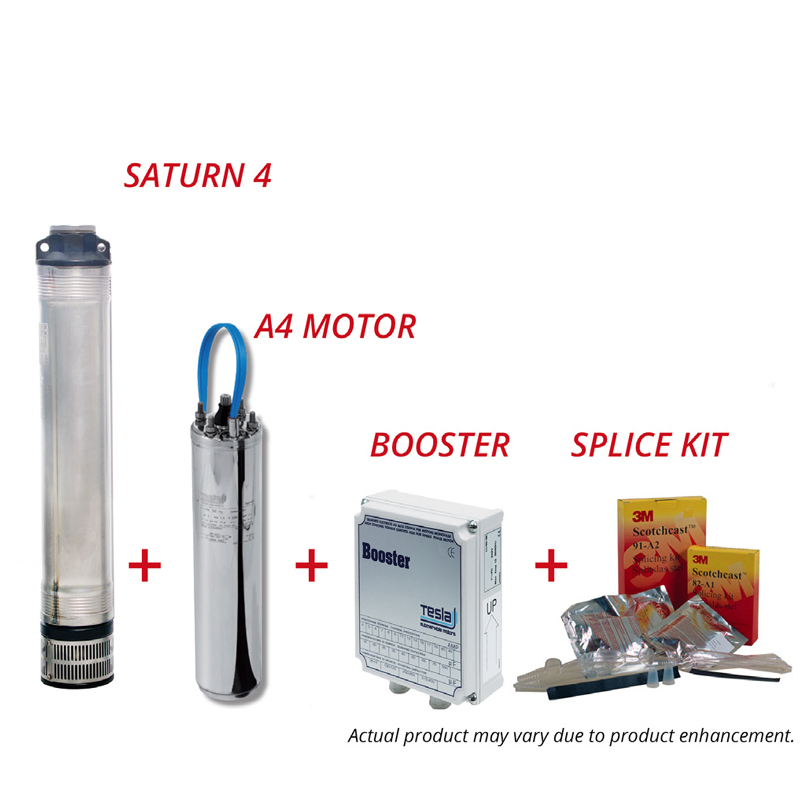

What’s in the Box
1x 4″ Multistage Borehole Pump
1x Single Phase Asynchronous Motor (Continuous Operation)
1x Splice Kit (to join the lead out cable to the submersible cable)
1x 220V Control Box (Including Run & Start Capacitor & Manual Overload Protector)
