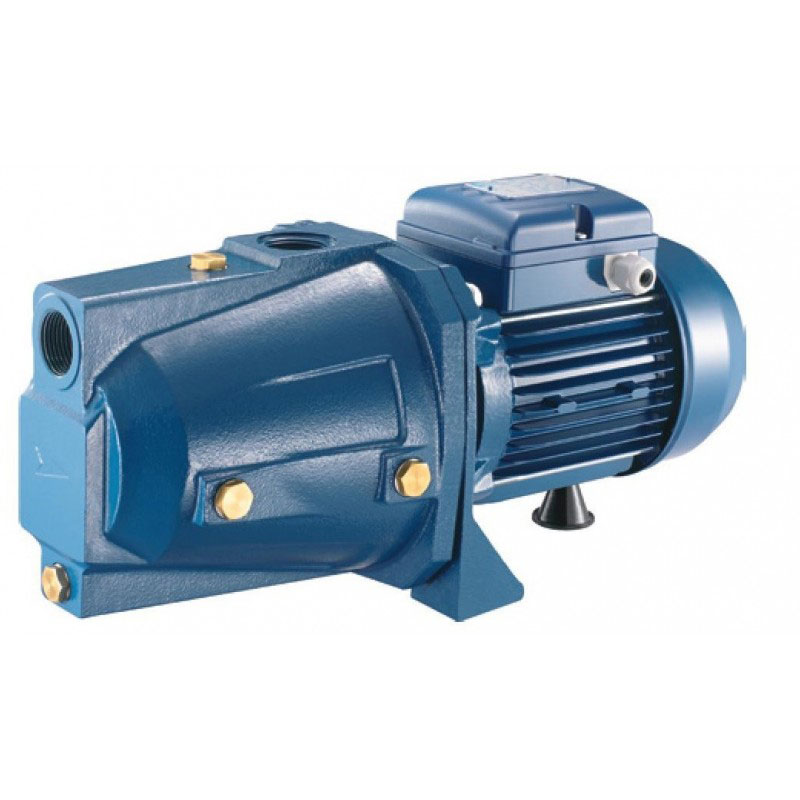

PENTAX CAM100 Self Priming Pump
Self-priming centrifugal pump for water supplies (even if mixed with gas) in small household systems, connected to autoclave tanks, for transferring liquids and emptying tanks; also used for gardening.
Description
Technical Specifications
CONSTRUCTION FEATURES
Pump Body: cast iron
Motor Bracket: aluminum
Impeller: noryl®
Mechanical Seal: ceramic-graphite-NBR
Motor Shaft: stainless steel AISI 416
Liquid Temperature: 0 – 50 °C
Operating Pressure: max 7 bar
Maximum Flow Rate: 70 l/m (4,2m³/h)
Maximum Head: 50,9m
MOTOR
Two Poles Induction Motor: 1~ 230V-50Hz (with thermal protection)
Insulation Class: F
Protection Degree: IPX4
Amperage: 4,7 A
Power Output: 0,74 KW (1 HP)
DIMENSIONS
Inlet Size: 1″ G
Outlet Size: 1″ G
