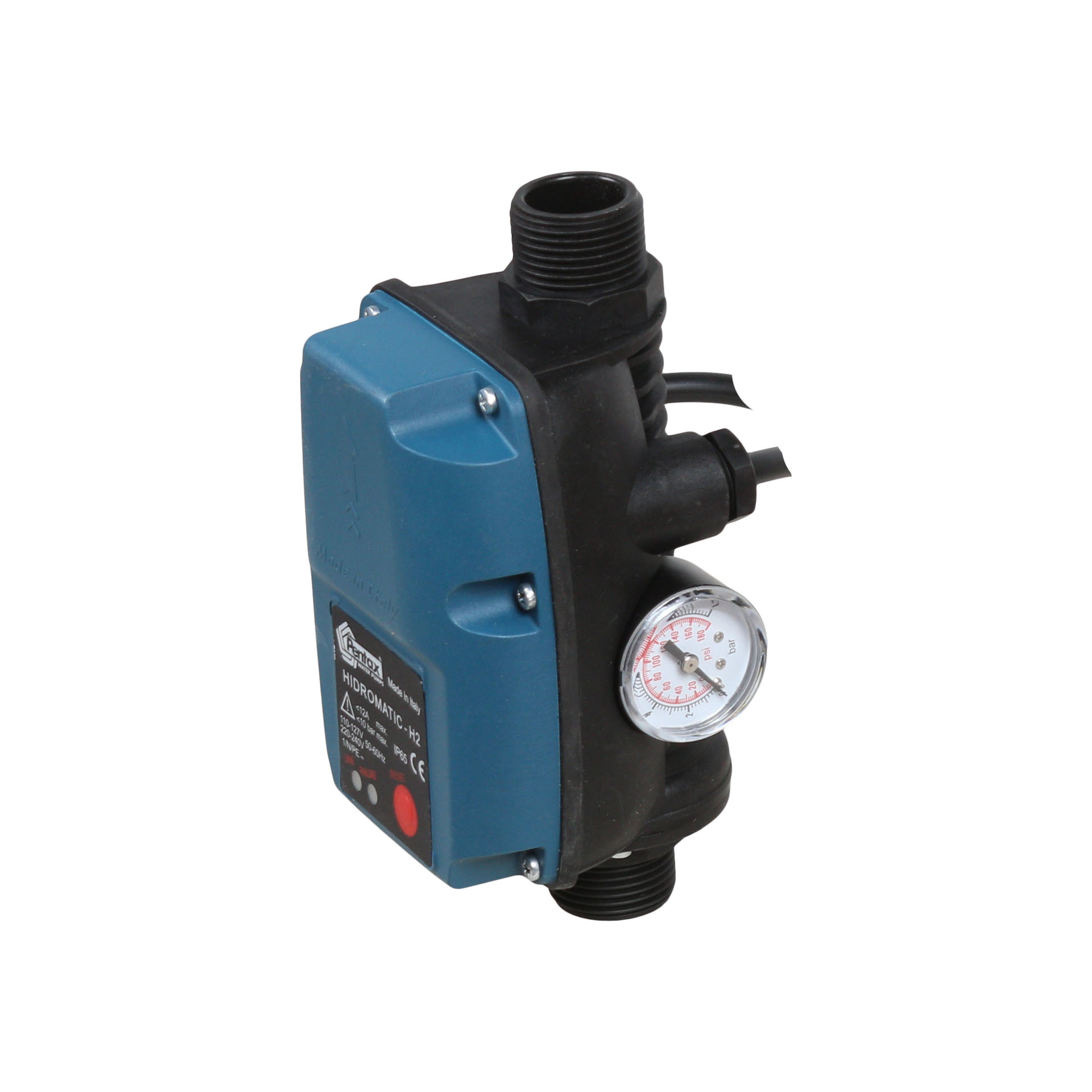

PENTAX Hidromatic Flow Control (H2)
The PENTAX Hidromatic flow controller is a complete replacement for your water system set. Containing a pressure switch that ensures you have constant water pressure by automating the start/stop function of the water pump if there is a drop in pressure. Provides dry-run protection and automatic reset & overload protection
Description
Hidromatic Specifications
Voltage: 110 – 230V AC ±10% 50/60Hz
Max. Rated Current: 12 A
Starting Pressure Range: 1 – 3.5 bar
Max Pressure: 10 bar (145 PSI)
Protection Degree: IP65
Max. Fluid Temperature: 55°C
Max. Ambient Temperature: 55°C
Key Features
Complete replacement of the traditional water system set consisting of a pressure switch and pressure tank.
Controls the starting of the electric pump after a pressure decrease (tap opening) and stops when the fluid flow is interrupted at the maximum pressure level of the electric pump (tap closing).
Protection against dry running.
Starting pressure adjustable during installation.
Standard 1″ M hydraulic connections.
Installation in any position – both vertical and horizontal, according to the flow direction.
Easily replaceable electronic printed circuit board.
No need for maintenance.
