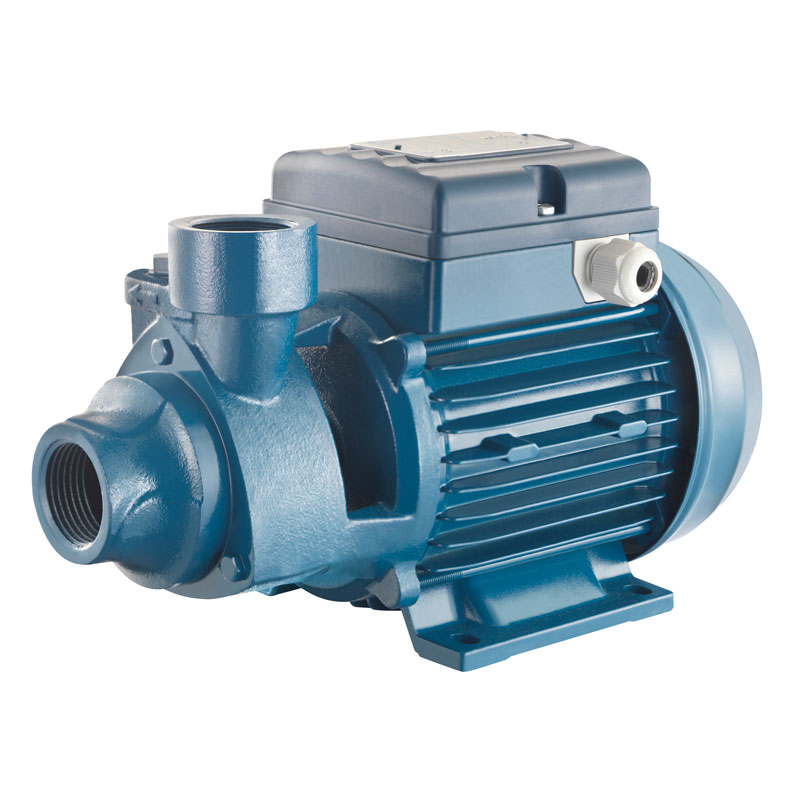

PENTAX PM45 0.37kW 230V Peripheral Pump
Peripheral positive displacement pump with front suction for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output.
Description
Technical Specifications
Pump Body: Cast iron
Motor Bracket: Cast iron
Impeller: Brass
Mechanical Seal: Ceramic-graphite-NBR
Motor Shaft: Stainless steel AISI 416
Liquid Temperature: 0 – 90 °C
Operating Pressure: Max 6 bar
Maximum Flow Rate: 40 L/min (2.4 m³/h)
Maximum Head: 40 m
Motor Specifications
Motor Type: Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection)
Insulation Class: F
Protection Degree: IPX4
Amperage: 2.3 A
Power Output: 0.37 kW (0.5 HP)
Dimensions
Inlet Size: 1″ G
Outlet Size: 1″ G
