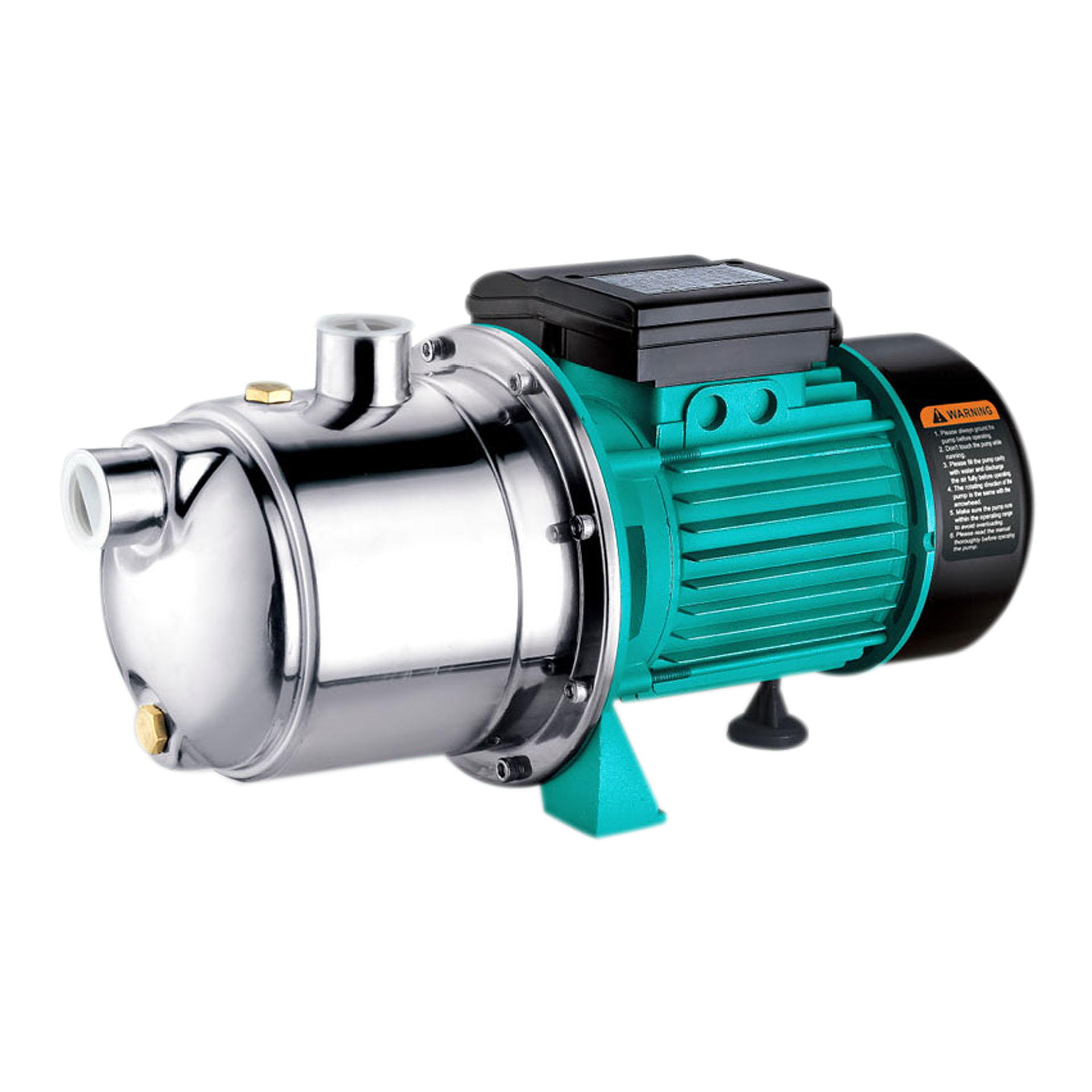

MAC AFRIC JET750GI Self Priming Pressure Pump (0.75 kW)

Performance Range Max. Flow: 5. 1 m3/h Max. Head: 40 m Application Limits Suction head up to 9m Max. Working pressure: 6 bar Voltage fluctuation should not exceed 10%of rated value. pH: 6. 5 to 8. 5 Applications Fields: Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply, and drainage, pipeline boosting, etc. Features: 304 stainless steel pressed tensile pump body & pump cover Hydraulic optimization design, excellent performance Nozzle, guide vane, and the impeller PPO engineering plastics Motor: 150W Single-Phase 230V/50 Hz Motor: 2 poles asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running Protection: IP44 Insulation: Class B

SKU: HPUMPP004 Category: Pumps Range

Description
Reviews (0)

Description

Technical Specifications

Power Supply: 150 W (Single Phase) – 230 V ±10% @ 50 Hz
Motor Output: 0.75 kW (1 HP)
Load Speed: 2,850 RPM
Flow Rate: 85 L/PM
Max Pressure: 10 Bar (146 PSI)
Gauge Increments: N/A
Pump Height: 15–40 H/M
Amperage: 4.9 A
Protection Degree: IP44
Pump Amperage: 4.9 A
Starting Pressure Range: 6 Bar (87 PSI)
Power Output: 0.75 kW (1 HP)
Performance Range: Max. Flow: 5.1 m³/h, Max. Head: 40 m
Application Limits: Suction head up to 9 m. Max. working pressure: 6 bar. Voltage fluctuation should not exceed ±10% of the rated value. Suitable pH range: 6.5 to 8.5.
Application Fields: Suitable for transferring water without abrasive particles or other liquids with similar properties to water. Commonly used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, and pipeline boosting.
Features: 304 stainless steel pressed tensile pump body and cover. Hydraulic optimization design for excellent performance. Nozzle, guide vane, and impeller are made of PPO engineering plastics.
Motor: 150 W, Single-Phase 230 V / 50 Hz. Two-pole asynchronous motor with copper windings, built-in thermal protector, fully closed fan cooling, and capable of continuous operation.
Protection: IP44
Insulation: Class B
