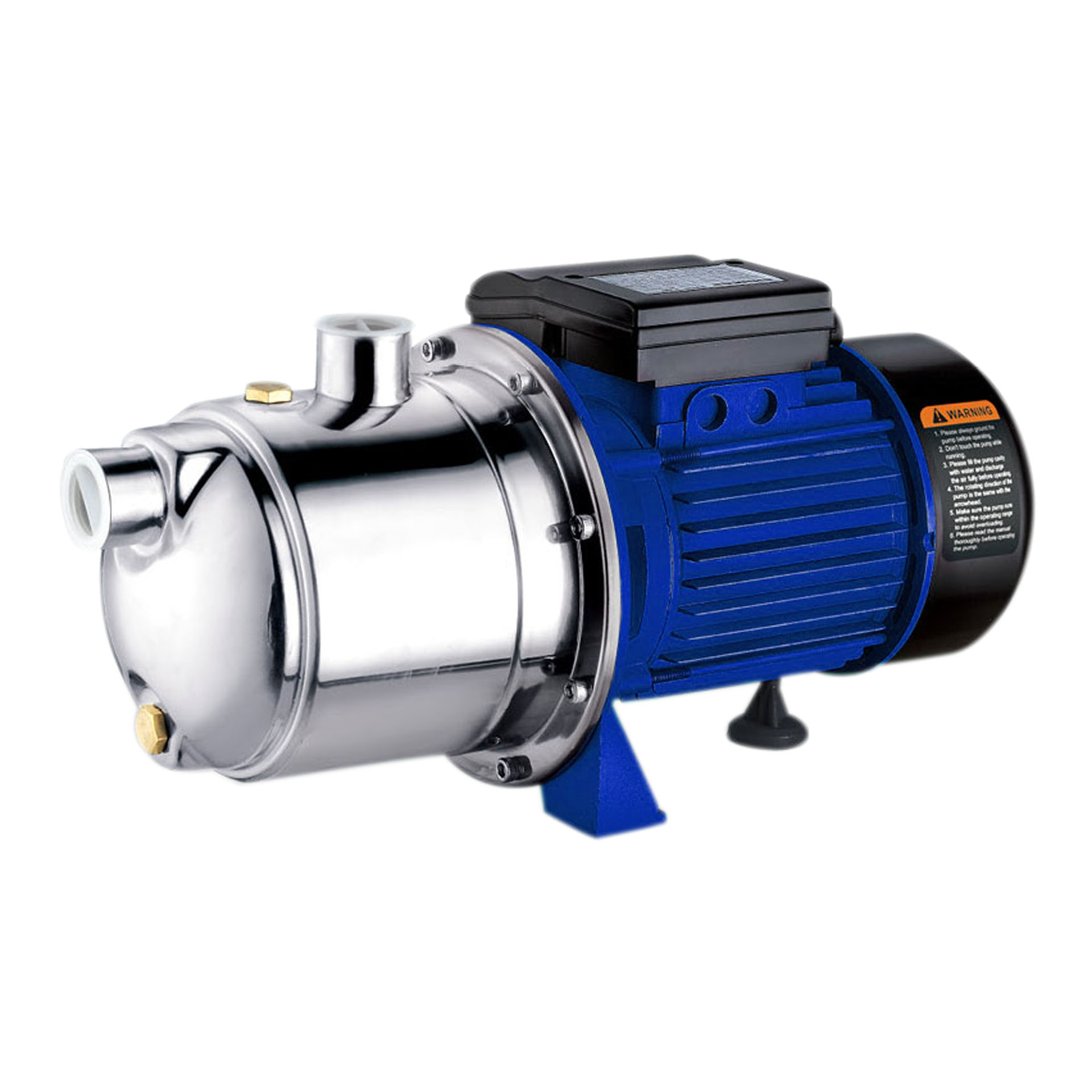

MAC AFRIC JET1100GI Self Priming Pressure Pump (1.1 kW)
Performance Range: Max. Flow: 6 m3/h Max. Head: 48 m Application Limits: Suction head up to 9m Max. Working pressure: 6 bar Voltage fluctuation should not exceed 10%of rated value. pH: 6. 5 to 8. 5 Applications Fields: Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply, and drainage, pipeline boosting, etc. Features: 304 stainless steel pressed tensile pump body & pump cover Hydraulic optimization design, excellent performance Nozzle, guide vane, and the impeller PPO engineering plastics Products are complete in specifications, meet drinking water standards Motor: 1100W Single-Phase 220V/50 Hz Motor: 2 poles asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running Protection: IP44 Insulation: Class B
Description
Technical Specifications
Power Supply: 1100 W (Single Phase) 220 V ±10% @ 50 Hz
Power Output: 1.1 kW (1.5 HP)
Starting Pressure Range: 6 Bar (87 PSI)
Pump Amperage: 6.7 A
Max Pressure: 10 Bar (146 PSI)
Load Speed: 2,850 RPM
Flow Rate: 90 L/PM
Pump Height: 20–48 H/M
Protection Degree: IP44
When Is a Pressure Pump Used?
There are a multitude of household and industrial water pressure issues a pressure pump can help alleviate. A pressure pump is ideal for situations where greater water pressure or a higher flow rate is needed, or simply when water needs to be transferred efficiently from one point to another.
Typical Applications
Drawing water from a rainwater or harvesting tank
Boosting household water pressure that is too low
Powering irrigation systems that require consistent pressure
Pumping water from alternate sources such as rivers, ponds or streams
Feeding high-pressure water to industrial machinery or washing systems
Compensating for low municipal water supply pressure
Transferring water from ground level to higher elevations
