SATURN 4 EBP 15 PUMP – 1.12kW 230V with Complete Kit (50mm 2″ OUTLET)

SATURN 4 EBP 15 PUMP – 1. 12kW 230V with COMPLETE KIT (50mm 2″ OUTLET) The COMPLETE KIT Comprises of the following: 1 x SATURN 4 EBP15 Submersible Pump 1 x 1. 12kW (1. 50HP) 230V Submersible Motor 1 x 1. 12kW (1. 50HP) 230V Booster Box (Run & Start Capacitors) 1 x Splice Kit (Pre-Made) 70 x Metres of 2. 5mm² x 4 Core Submersible Cable 70 x Metres of 12mm Safety Rope 1 x 32mm Base Plate 1 x 32mm x 25mm Galvanized Reducing Bush 1 x 32mm Galvanized Male / Female Elbow 1 x 32mm Galvanized Barrel Nipple 1 x 32mm Gate Valve 2 x 40mm x 1¼ Compression Male Adaptor 1 x 32mm Nylon Insert Adaptor + Clamp (HCG20)

SKU: HPUMPB111 Category: Pumps Range

Description
Reviews (0)

Description

Technical Specifications

Model: EBP15
Max Working Head: 93 m
Max Flow: 5.8 m³/h (96 ℓ/min)
Max Depth: 100 m
Min Water Temperature: 0ºC
Max Water Temperature: 35ºC
Max Starts Per Hour: 20
Outlet Size: 1¼”
Water Quality: Clean Water
Motor: 4OC (Oil Immersed)
Motor Size: 1.12 kW (1120 W)
Horse Power: 1.50 Hp
Amperage: 8.3 A
Motor Voltage: Single Phase (220 V)
Motor Speed: Two-pole (2850 RPM)
Insulation Class: F
IP Rating (Motor): 68
Capacitor: 60 µF
Control Panel Voltage: 220 V
Control Panel KW: 1.12 kW
Control Panel HP: 1.50 Hp
Frequency: 50 Hz
IP Rating (Control Panel): 54
Control Panel Capacitor: 60 µF
Key Features
Reliable deep borehole pumping solution with high head performance
Includes essential fittings and electrical components for installation
Oil-immersed motor design for increased durability
Supplied with 70m cable and safety rope for secure and complete setup
Recommended use of flow sleeve in open well installations

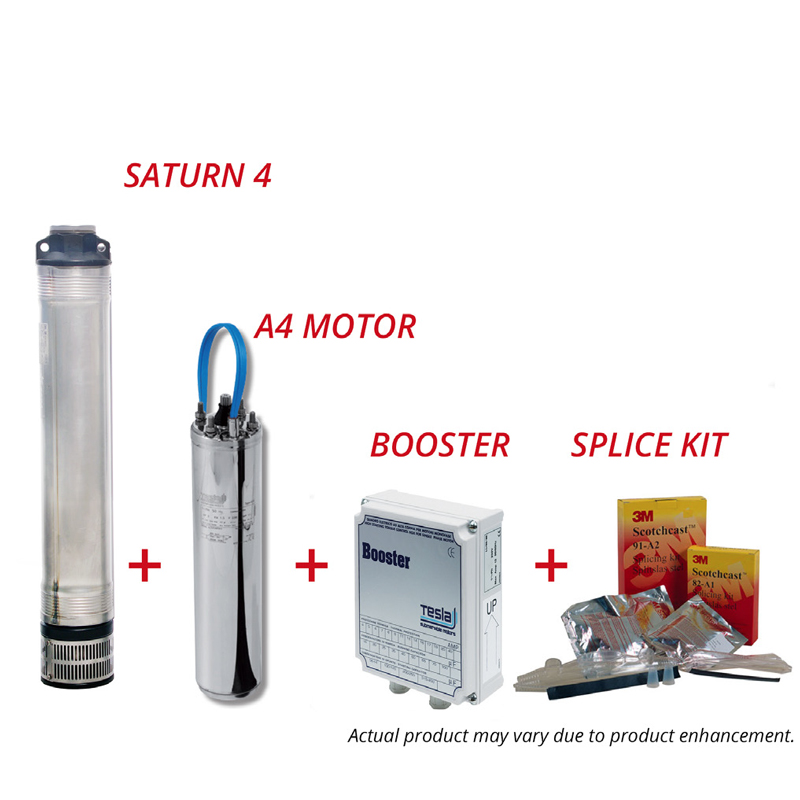

What’s in the Box
1x 4″ Multistage Borehole Pump
1x Single Phase Asynchronous Motor (Continuous Operation)
1x Splice Kit (to join the lead out cable to the submersible cable)
1x 220V Control Box (Run & Start Capacitor + Overload Protector)
1x 32mm Galvanized Base Plate
1x 32mm Galvanized M/F Elbow
1x 32mm Galvanized Barrel Nipple
1x 32mm Brass Gate Valve
1x 32mm Nylon Male Insert Adaptor
1x Hose Clamp (HCG20)
2x 40mm x 1¼” Compression Male Adaptor
1x Roll of PTFE Tape
70m of 2.5mm² x 4 Core Submersible Cable
70m of 12mm Nylon Safety Rope
