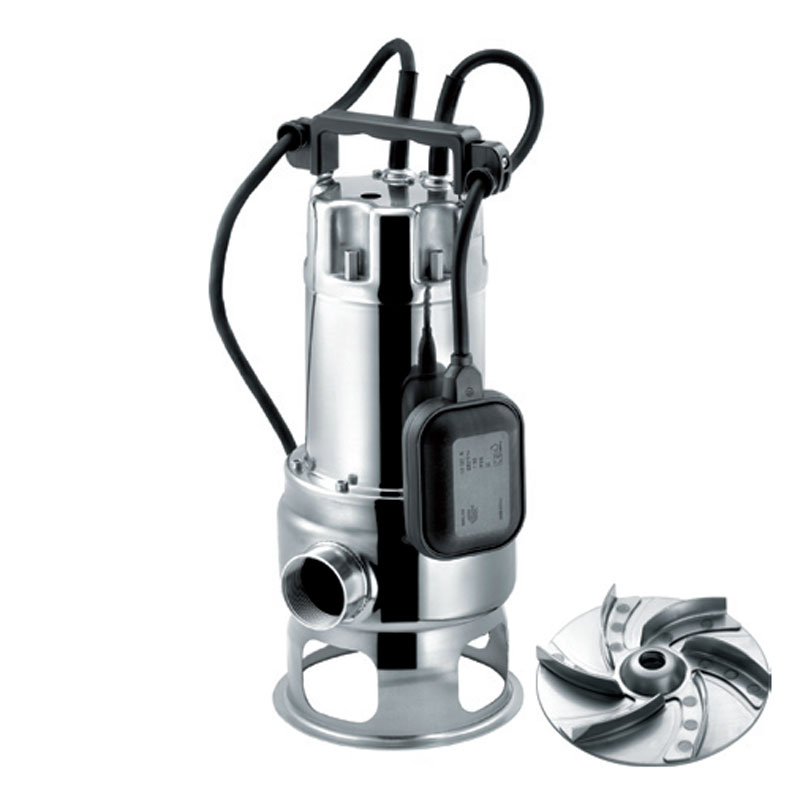

PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT)

Drainage pump with set-back Vortex type impeller for pumping charged waters and liquids with suspended solids; ideal for civil and household applications.

SKU: HPUMPD100 Category: Pumps Range

Description
Reviews (0)

Description

Construction Features

Pump Body: Stainless steel
Shell, Motor Cover, Base Support: Stainless steel
Impeller: Stainless steel vortex type
Mechanical Seal: Double seal with oil barrier: silicon carbide on pump side, sealing ring on motor side
Motor Shaft: Stainless steel AISI 430
Free Passage: Ø max 28 mm
Max Submergence: 5 m
Liquid Temperature: 0 – 40 °C
Cable: H07 RN8F, 10 m
Float Switch: Yes (G)
Maximum Flow Rate: 300 L/min (18 m³/h)
Maximum Head: 9.8 m
Water Quality: Grey water and black water
Motor Specifications

Motor Type: Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection)
Insulation Class: F
Protection Degree: IPX8
Amperage: 6.2 A
Power Output: 1350 W
Dimensions

Outlet Size: 1 1/2″ G
