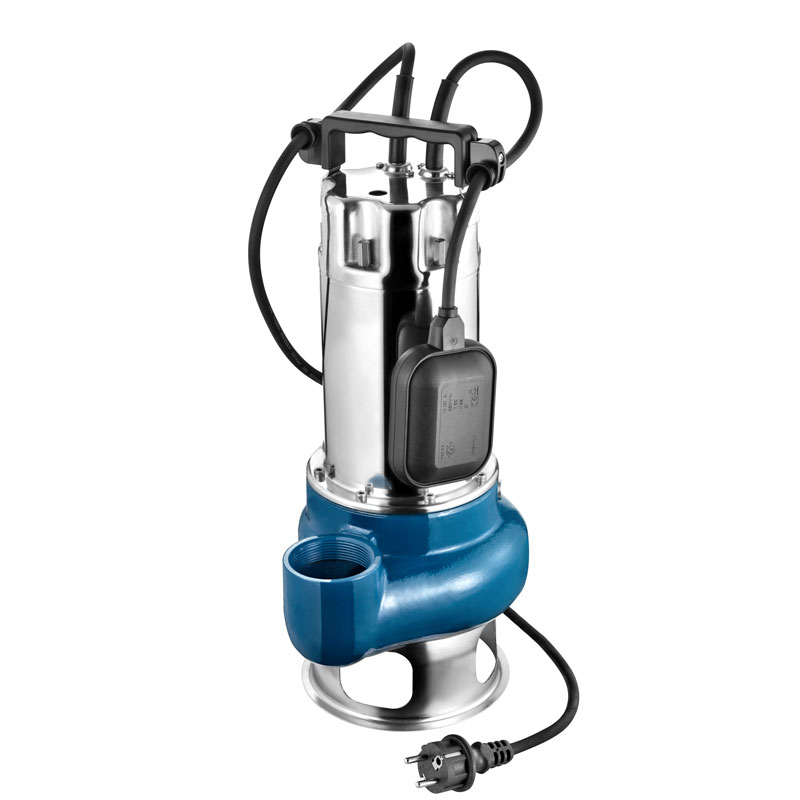

PENTAX DB150G 1700W 230V Submersible Drainage Pump (With FLOAT)
Drainage pump with “Double-Channel” impeller for pumping waste waters and liquids with suspended solids; ideal for civil and household applications. The single-phase version with built-in capacitor and thermal protector, equipped with a float switch.
Description
Technical Specifications
Painting: Cataphoresis
Pump Body: Cast iron
Shell, Motor Cover, Base Support: Stainless steel
Impeller: Stainless steel
Mechanical Seal: Double seal with oil chamber: silicon carbide on pump side, ceramic graphite on motor side
Motor Shaft: Stainless steel AISI 430
Free Passage: Ø max 50mm
Max Submergence: 5m
Liquid Temperature: 0 – 40 °C
Cable: H07 RN8F, 10m
Float Switch: G
Maximum Flow Rate: 650 l/m (39m³/h)
Maximum Head: 13.6m
Water Quality: Grey water & black water
Motor Specifications
Type: Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection)
Insulation Class: F
Protection Degree: IPX8
Amperage: 8A
Power Output: 1700W
Dimensions
Outlet Size: 2″ G
