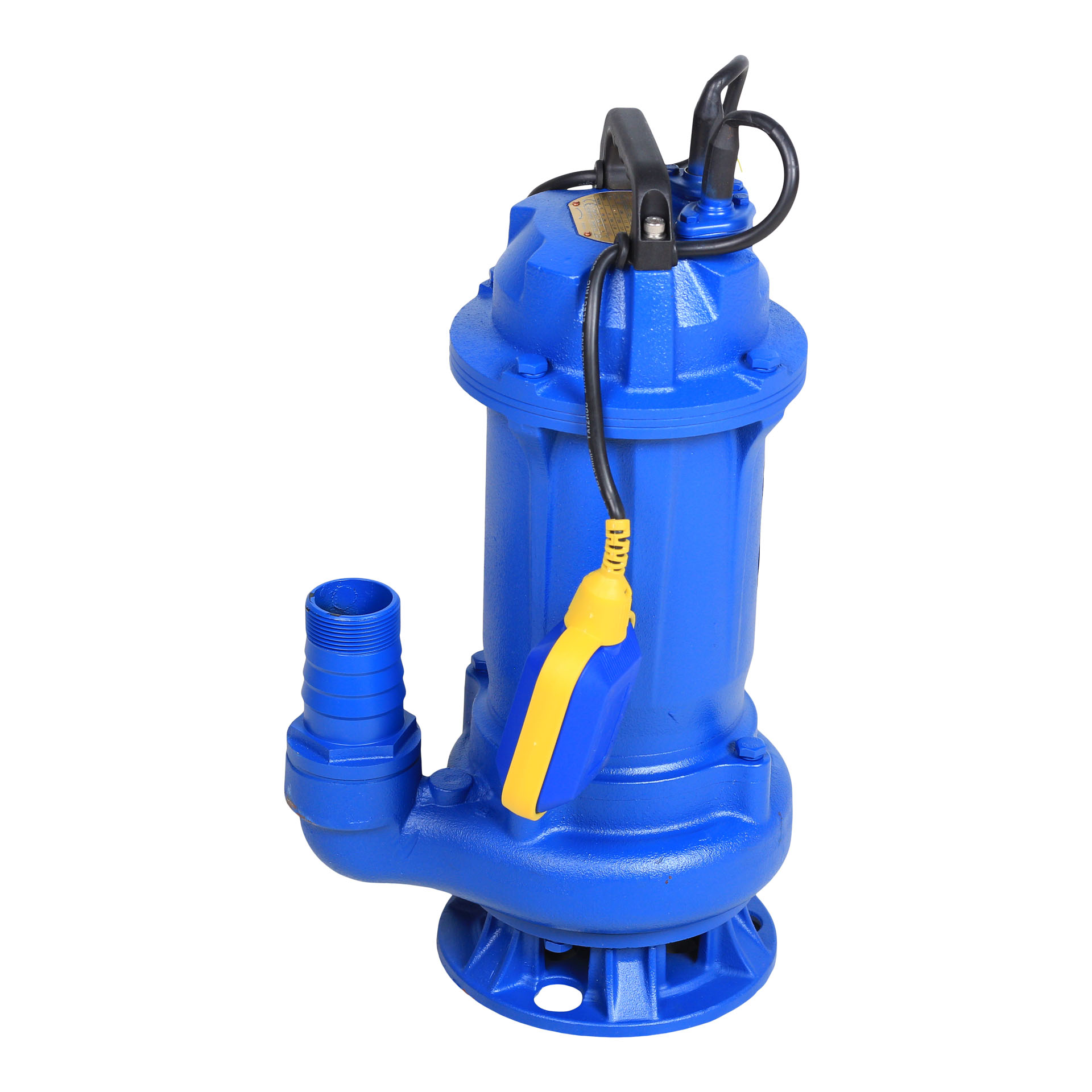

MAC AFRIC WQD15-9-1.1L4-F Submersible Sewage Pump
The MAC AFRIC WQD15-9-1.1L4-F Submersible Sewage Pump features a wear-resistant cast iron construction and a double-channel impeller, providing excellent flow capacity and hydraulic performance. Designed for demanding environments, this pump is ideal for draining water containing particles, such as short fibers and soft solids, including muddy or dirty water, domestic wastewater, and sewage. Equipped with a stainless steel shaft extension, carbide mechanical seals, and automatic reset protection, it is perfect for agricultural irrigation, pool cleaning, and construction applications.
Description
Submersible Pump Specifications
CategorySpecification
Flow Rate: Up to 25.5 m³/h (425 L/min)
Usable Lift Range: 14.5 – 0 m
Maximum Lift: 14.5 m
Standard Unit Efficiency: 38.7%
Power: 1.1 kW (1.5 HP)
Voltage: 220 V, Single Phase
Frequency: 50 Hz
Rated Current: 7.3 A
Insulation Class: F
Protection Class: IPX8
Cable: H05VV-F3×1-8 (8 m)
Plug Type: European plug
Capacitance: 30 μF
Material: Wear-resistant cast iron
Impeller Type: Double-channel
Outlet Diameter: 50 mm (G1½)
Dimensions: 475 × 265 × 187 mm
Maximum Immersion Depth: 5 m
Particle Passage: Up to 20 mm
Medium Temperature: Up to 40°C
Key Features
Robust cast iron design for long-lasting durability
Double-channel impeller for superior flow and performance
Stainless steel shaft with carbide mechanical seals for reliability
Automatic reset protection for safe operation
