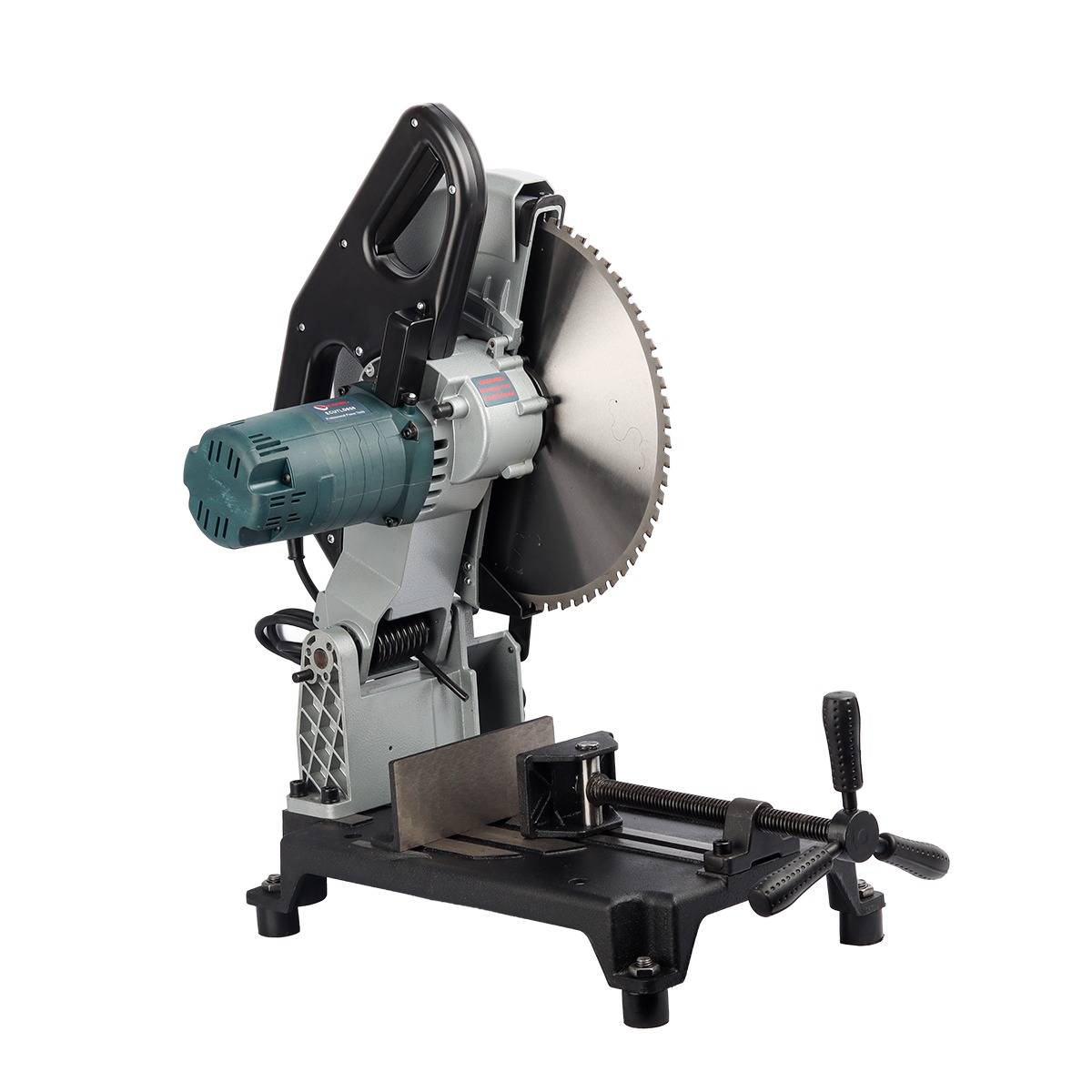

MAC AFRIC 2600W Cold Metal Saw

Description

Technical Specifications

Product Name: Metal Saw
Type of Saw: Metal saw for metal
Rated Voltage/Frequency: 230V/50Hz
Rated Power: 2600W
Blade Diameter: 355mm
Blade Shaft Hole Diameter: 25.4mm
Thickness of Blade Teeth: 2.2mm
Sound Pressure Level: 105.5dB(A) K=3.0dB(A)
Sound Power Level: 112.92dB(A) K=3.0dB(A)
Maximum Cutting Capacities
Workpiece Shape
Cutting Angle 0°
Cutting Angle 45°
Round: Φ120mm: Φ100mm
Square: 120x120mm: 100x100mm
Rectangle: 110x170mm: 95x100mm
Angle Iron: 120x120mm: 70x70mm
