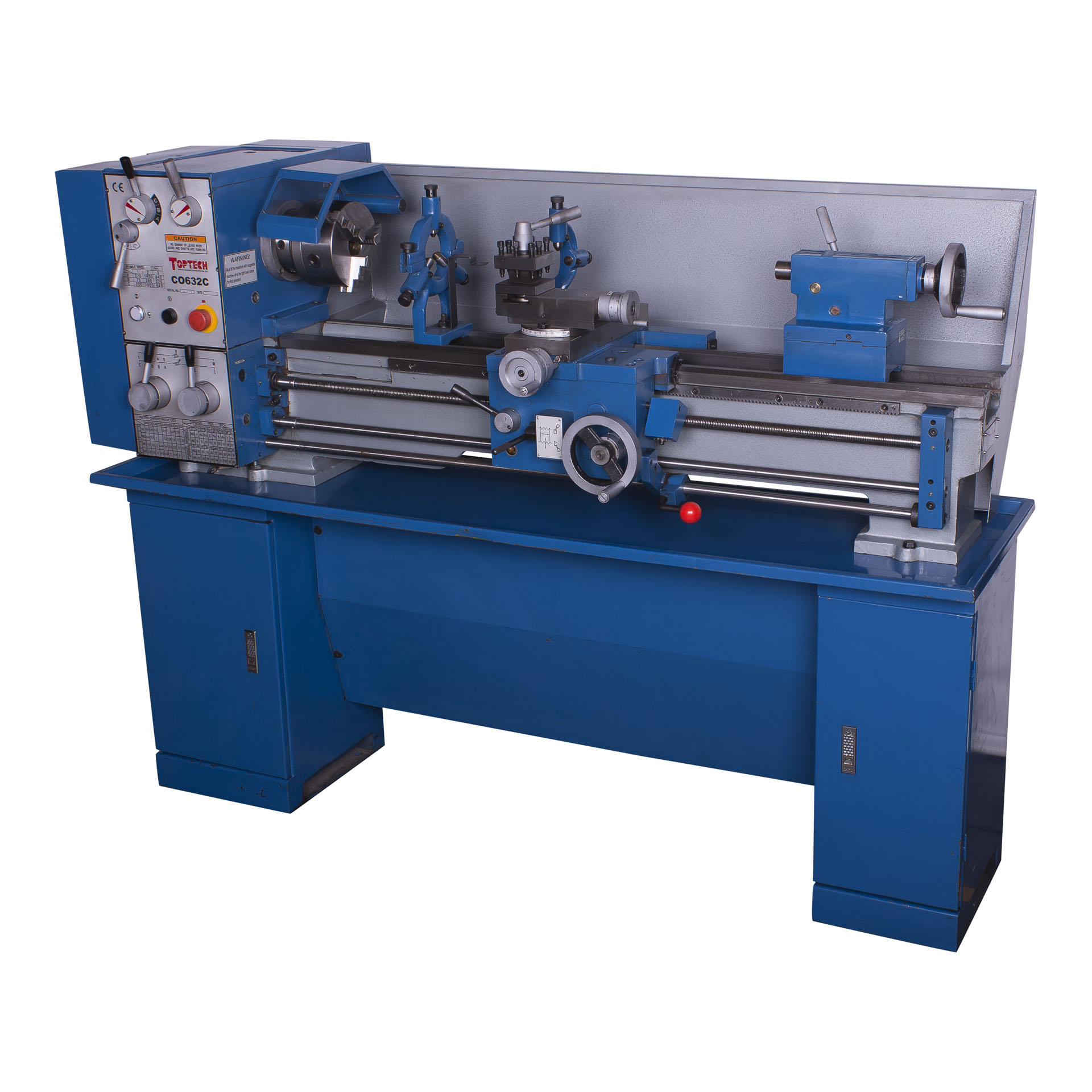

MAC AFRIC 1 M Geared Head Lathe with Stand
Precision ground and supersonic frequency hardened bed ways.The spindle is supported with a precision roller bearing.Head-stock gears are made of high-quality steel, ground and hardened.The removable gap is provided for larger diameter work.Easy operating gearbox has various feeds and thread cutting functions.
Description
Technical Specifications
Power Output: 1.5 KW (2 HP)
Voltage: 230V
Frequency: 50 – 60 Hz
Max. Swing Over Bed: 320 mm (13″ in)
Max. Swing Over Cross Slide: 178 mm (7″ in)
Max. Swing Over Gap: 450 mm (18″ in)
Distance Between Centres: 1 000 mm (39″ in)
Width Of Bed: 181 mm
Spindle Bore: 38 mm (1 1/2″ in)
Taper of Spindle Bore: MT 5
Range of Spindle Speeds: 75 – 1 400 RPM (9 Steps), 65 – 1 810 RPM (18 Steps)
Diameter of Tailstock Quill: 32 mm (1 1/4″ in)
Max. Travel of Tailstock Quill: 100 mm (4″ in)
Taper of Tailstock: MT 3
Metric Threads Can be Cut: 32 Kinds: 0.4 – 7 mm
Imperial Threads Can be Cut: 32 Kinds: 4 – 60 TPI
Range of Longitudinal Feeds: 0.0527 – 1.2912 mm/rev (0.0021 – 0.0508 inch/rev)
Range of Cross Feeds: 0.011 – 0.276 mm/rev (0.0006 – 0.0136 inch/rev)
Gross Weight: 550 kg
Max. Rotatory Angle of Tool Post: 90°
Tool Slide Travel: 76 mm (3″ in)
